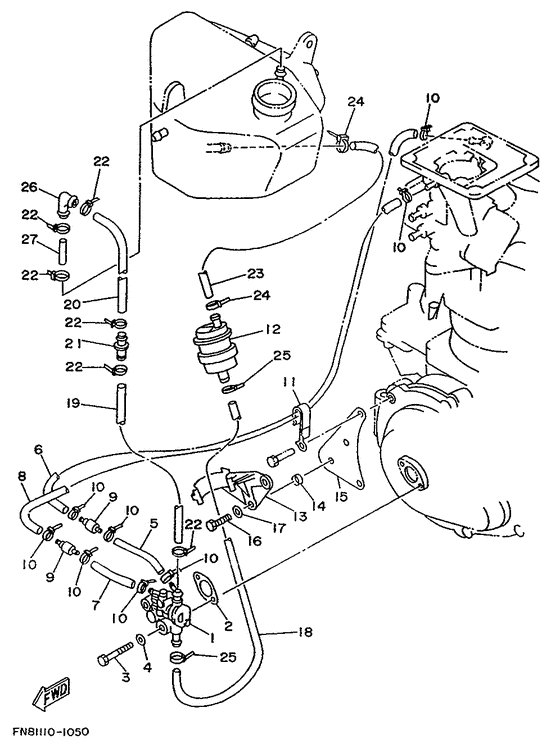

Oil pump Diagram Yamaha 650TX
- Model code
- FN82
- Year
- 1991
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
61L-13200-00-00 Oil Injection Pump Assy |
61L-13200-00-00 |
from US $132.24 |
||
|
02
|
02
6R8-13116-A0-00 Gasket, Pump Case |
6R8-13116-A0-00 |
from US $3.26 |
||
|
03
|
03
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
03
|
03
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $1.66 |
||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
05
|
05
90446-07M14-00 Hose (L450) |
90446-07M14-00 |
from US $3.83 |
||
| replacement | |||||
|
05
|
05
90446-07M48-00 Hose (L450) |
90446-07M48-00 |
from US $2.66 |
||
|
06
|
06
90446-07M35-00 Hose (L450) |
90446-07M35-00 |
from US $3.83 |
||
| replacement | |||||
|
06
|
06
90446-07M48-00 Hose (L450) |
90446-07M48-00 |
from US $2.66 |
||
|
07
|
07
90446-07M17-00 Hose (L450) |
90446-07M17-00 |
from US $3.83 |
||
| replacement | |||||
|
07
|
07
90446-07M48-00 Hose (L450) |
90446-07M48-00 |
from US $2.66 |
||
|
08
|
08
90446-07M36-00 Hose (L450) |
90446-07M36-00 |
from US $3.83 |
||
| replacement | |||||
|
08
|
08
90446-07M48-00 Hose (L450) |
90446-07M48-00 |
from US $2.66 |
||
|
09
|
09
6R3-13183-00-00
Valve,check
|
6R3-13183-00-00 |
— | ||
| replacement | |||||
|
09
|
09
6R3-13183-10-00 Valve, Check |
6R3-13183-10-00 |
from US $35.28 |
||
|
10
|
10
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
10
|
10
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
10
|
10
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
11
|
11
90465-08M37-00 Clamp |
90465-08M37-00 |
US $11.86 |
||
|
12
|
12
6R8-21733-00-00 Sub Tank, Oil |
6R8-21733-00-00 |
US $38.12 |
||
|
13
|
13
6R8-21734-00-00
Holder, Oil Sub Tank
|
6R8-21734-00-00 |
— | ||
|
14
|
14
90387-06M72-00
Collar
|
90387-06M72-00 |
— | ||
| replacement | |||||
|
14
|
14
903-87067-04-00
Collar (796)
|
903-87067-04-00 |
— | ||
|
15
|
15
61L-14255-00-00
Plate
|
61L-14255-00-00 |
— | ||
|
16
|
16
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
90445-11M24-00 Hose (L215) |
90445-11M24-00 |
US $15.44 |
||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
90446-12M32-00
Hose
|
90446-12M32-00 |
— | ||
| replacement | |||||
|
19
|
19
90446-12M27-00
Hose
|
90446-12M27-00 |
— | ||
|
20
|
20
90446-11M33-00 Hose |
90446-11M33-00 |
US $4.11 |
||
| replacement | |||||
|
20
|
20
90445-11M15-00 Hose (L360) |
90445-11M15-00 |
from US $4.11 |
||
|
21
|
21
6R8-24377-00-00
Pipe, Joint 2
|
6R8-24377-00-00 |
— | ||
|
22
|
22
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
22
|
22
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
22
|
22
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
23
|
23
90445-11M27-00 Hose (L240) |
90445-11M27-00 |
US $15.44 |
||
| replacement | |||||
|
23
|
23
904-45117-F2-00 Hose (L700) |
904-45117-F2-00 |
from US $15.44 |
||
|
24
|
24
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
24
|
24
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
24
|
24
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
25
|
25
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
25
|
25
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
25
|
25
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
26
|
26
61L-24378-00-00 Pipe, Joint 3 |
61L-24378-00-00 |
US $10.48 |
||
|
27
|
27
90445-09M28-00 Hose (L420) |
90445-09M28-00 |
from US $6.52 |
||
| replacement | |||||
|
27
|
27
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
