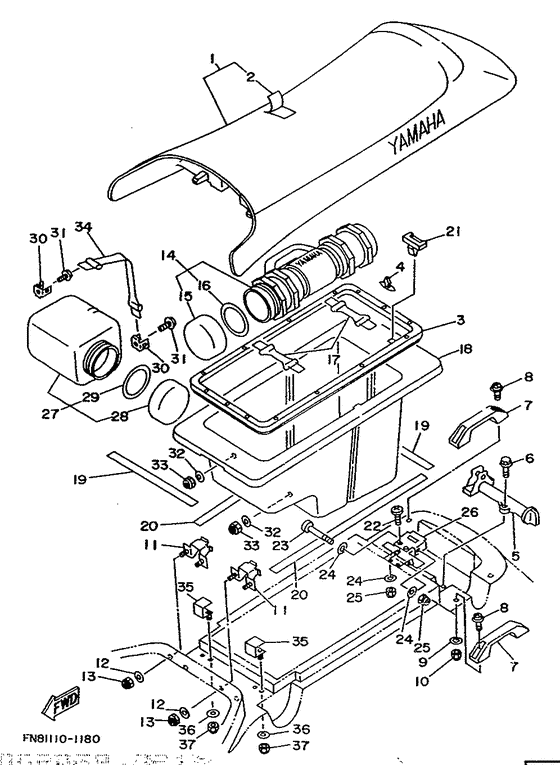

Seat. under locker Diagram Yamaha 650TX
- Model code
- FN82
- Year
- 1991
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
FN8-U3710-01-00
Driver Seat Assy.1
|
FN8-U3710-01-00 |
— | ||
|
02
|
02
FN8-U3711-00-00
Seat Driver
|
FN8-U3711-00-00 |
— | ||
|
03
|
03
FN8-U2663-00-00 Packing 1 |
FN8-U2663-00-00 |
from US $136.40 |
||
|
04
|
04
90269-06916-00 Rivet |
90269-06916-00 |
from US $2.92 |
||
|
05
|
05
FJ0-63850-01-00
Seat Lock Assembly
|
FJ0-63850-01-00 |
— | ||
| replacement | |||||
|
05
|
05
FJ0-63850-31-00
Seat Lock Assembly
|
FJ0-63850-31-00 |
— | ||
|
06
|
06
90119-06900-00 Bolt, With Washer |
90119-06900-00 |
from US $2.27 |
||
|
07
|
07
EU0-62714-01-00
Grip, Hand
|
EU0-62714-01-00 |
— | ||
|
08
|
08
90159-06904-00
Screw, With Washer
|
90159-06904-00 |
— | ||
|
09
|
09
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
10
|
10
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
11
|
11
FN8-6378C-00-00
Stay, Seat 1
|
FN8-6378C-00-00 |
— | ||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
13
|
13
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
14
|
14
EW2-65920-00-00
Case 2 Assembly
|
EW2-65920-00-00 |
— | ||
|
15
|
15
EW2-65912-30-00
Cap, Case
|
EW2-65912-30-00 |
— | ||
|
16
|
16
EW2-65913-00-00 Packing, Case |
EW2-65913-00-00 |
from US $3.68 |
||
|
17
|
17
EU0-67569-02-00 Band, Water Lock |
EU0-67569-02-00 |
from US $25.93 |
||
|
18
|
18
FN8-44742-00-00
Locker, Under 2
|
FN8-44742-00-00 |
— | ||
|
19
|
19
FN8-6266B-00-00
Paking 3
|
FN8-6266B-00-00 |
— | ||
|
20
|
20
FN8-6266C-00-00
Packing 4
|
FN8-6266C-00-00 |
— | ||
|
21
|
21
FN8-65172-00-00
Lock, Lid
|
FN8-65172-00-00 |
— | ||
|
22
|
22
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
23
|
23
90149-05977-00
Screw
|
90149-05977-00 |
— | ||
|
24
|
24
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
25
|
25
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
26
|
26
FN8-U5174-00-00
Hook, Lid Lock
|
FN8-U5174-00-00 |
— | ||
|
27
|
27
FN8-65910-00-00
Case 1 Assy
|
FN8-65910-00-00 |
— | ||
|
28
|
28
EW2-65912-00-00 Cap, Case |
EW2-65912-00-00 |
from US $17.85 |
||
|
29
|
29
EW2-65913-00-00 Packing, Case |
EW2-65913-00-00 |
from US $3.68 |
||
|
30
|
30
EU0-65772-30-00 Hook A |
EU0-65772-30-00 |
from US $5.39 |
||
|
31
|
31
90159-06901-00 Screw, With Washer |
90159-06901-00 |
from US $2.55 |
||
|
32
|
32
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
33
|
33
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
34
|
34
FJ0-67569-00-00
Band,water Lock
|
FJ0-67569-00-00 |
— | ||
|
35
|
35
FN8-64744-00-00
Guide
|
FN8-64744-00-00 |
— | ||
|
36
|
36
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
37
|
37
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
