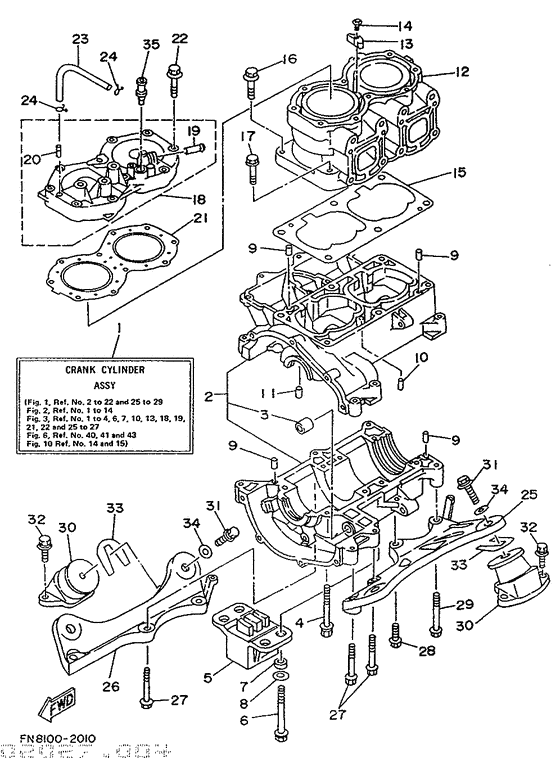

Cylinder. crankcase Diagram Yamaha 650TX
- Model code
- FN89
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
61L-W0090-01-EK
Crank Cylinder Assy
Ur for oil injection |
61L-W0090-01-EK |
— | ||
| replacements | |||||
|
01
|
01
61L-W0090-05-8P
COVER, CYLINDER HEAD
Ur for oil injection |
61L-W0090-05-8P |
— | ||
|
01
|
01
61L-W0090-04-4D Crank Cylinder Assy (Oil-Inj)Ur for oil injection |
61L-W0090-04-4D |
US $4,098.58 |
||
|
01
|
01
61L-W0090-03-4D
Crank Cylinder Assy
Ur for oil injection |
61L-W0090-03-4D |
— | ||
|
01
|
01
61L-W0090-04-8P
Crank Cylinder Assy
Ur for oil injection |
61L-W0090-04-8P |
— | ||
|
01
|
01
61L-W0090-10-EK
Crank Cylinder Assy
Ur for non oil injection |
61L-W0090-10-EK |
— | ||
|
02
|
02
6M6-15100-00-94 Crankcase Assembly |
6M6-15100-00-94 |
US $1,211.53 |
||
| replacement | |||||
|
02
|
02
6M6-15100-00-8S Crankcase Assy |
6M6-15100-00-8S |
US $1,193.74 |
||
|
03
|
03
90380-12M29-00 Bush, Solid |
90380-12M29-00 |
from US $8.64 |
||
|
04
|
04
90119-08M55-00 Bolt, With Washer |
90119-08M55-00 |
from US $4.30 |
||
|
05
|
05
61L-44532-00-00 Stopper, Upper Mount |
61L-44532-00-00 |
from US $56.39 |
||
|
06
|
06
90119-08M29-00 Bolt, With Washer |
90119-08M29-00 |
US $7.93 |
||
| replacement | |||||
|
06
|
06
90119-08015-00 Bolt, With Washer |
90119-08015-00 |
from US $4.14 |
||
|
07
|
07
90387-08M10-00 Collar |
90387-08M10-00 |
US $7.25 |
||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
90201-08M04-00 Washer, Plate |
90201-08M04-00 |
from US $2.69 |
||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
93606-12016-00
Pin, Dowel
|
93606-12016-00 |
— | ||
|
10
|
10
93603-10049-00 Pin, Dowel |
93603-10049-00 |
from US $2.32 |
||
|
11
|
11
93604-07141-00 Pin, Dowel |
93604-07141-00 |
from US $2 |
||
|
12
|
12
6M6-11311-00-94 Cylinder 1 |
6M6-11311-00-94 |
US $791.73 |
||
| replacement | |||||
|
12
|
12
6M6-11311-01-8S Cylinder 1 |
6M6-11311-01-8S |
US $791.73 |
||
|
13
|
13
6E5-11325-00-00 Anode |
6E5-11325-00-00 |
from US $4.96 |
||
|
14
|
14
98680-04016-00 Screw, Flat Head |
98680-04016-00 |
from US $1.39 |
||
| replacements | |||||
|
14
|
14
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.34 |
||
|
14
|
14
98780-04016-00 Screw, Flat Head (Fe4) |
98780-04016-00 |
from US $2.13 |
||
|
15
|
15
6M6-11351-A1-00 Gasket, Cylinder |
6M6-11351-A1-00 |
from US $15.98 |
||
| replacement | |||||
|
15
|
15
6M6-11351-A2-00 Gasket, Cylinder |
6M6-11351-A2-00 |
from US $10.92 |
||
|
16
|
16
90119-10M56-00 Bolt, With Washer |
90119-10M56-00 |
from US $3.97 |
||
|
17
|
17
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $3.32 |
||
|
18
|
18
6R7-11111-00-94 Head, Cylinder 1 |
6R7-11111-00-94 |
US $384.73 |
||
| replacement | |||||
|
18
|
18
6R7-11111-09-8S Head, Cylinder 1 |
6R7-11111-09-8S |
US $384.73 |
||
|
19
|
19
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
20
|
20
6R7-14485-00-00 Pipe, Joint |
6R7-14485-00-00 |
from US $8.93 |
||
|
21
|
21
6R7-11181-A0-00
Gasket, Cylinder. Head
|
6R7-11181-A0-00 |
— | ||
| replacement | |||||
|
21
|
21
6R7-11181-A1-00
Gasket, Cylinder Head 1
|
6R7-11181-A1-00 |
— | ||
|
22
|
22
901-1908M-19-00
Bolt, With Washer
|
901-1908M-19-00 |
— | ||
| replacement | |||||
|
22
|
22
90119-08019-00 Bolt, With Washer |
90119-08019-00 |
from US $4.11 |
||
|
23
|
23
90445-07M19-00 Hose (L200) |
90445-07M19-00 |
from US $2.27 |
||
|
24
|
24
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
25
|
25
6R7-21415-00-94 Bracket, Front Upper 1 |
6R7-21415-00-94 |
from US $137.21 |
||
| replacement | |||||
|
25
|
25
6R7-21415-01-00 Bracket, Front Upper 1 |
6R7-21415-01-00 |
from US $145.07 |
||
|
26
|
26
6R7-21425-00-94 Bracket, Rear Upper 1 |
6R7-21425-00-94 |
from US $126.97 |
||
| replacement | |||||
|
26
|
26
6R7-21425-01-00 Bracket, Rear Upper 1 |
6R7-21425-01-00 |
from US $126.97 |
||
|
27
|
27
97513-10570-00 Bolt, With Washer |
97513-10570-00 |
from US $9 |
||
| replacement | |||||
|
27
|
27
90119-10M23-00 Bolt, With Washer |
90119-10M23-00 |
from US $4.96 |
||
|
28
|
28
97513-10535-00 Bolt, With Washer |
97513-10535-00 |
from US $5.95 |
||
| replacement | |||||
|
28
|
28
90119-10M00-00 Bolt, With Washer(63N) |
90119-10M00-00 |
from US $5.95 |
||
|
29
|
29
97513-10580-00 Bolt, With Washer |
97513-10580-00 |
from US $6.94 |
||
| replacement | |||||
|
29
|
29
90119-10M03-00 Bolt, With Washer(63N) |
90119-10M03-00 |
from US $6.94 |
||
|
30
|
30
6M6-44517-00-5B Mount Rubber |
6M6-44517-00-5B |
from US $50.01 |
||
| replacement | |||||
|
30
|
30
6M6-44517-A2-94 Mount Rubber |
6M6-44517-A2-94 |
from US $50.01 |
||
|
31
|
31
90119-08904-00 Bolt With Washer (Eu0) |
90119-08904-00 |
from US $2.98 |
||
|
32
|
32
90119-08038-00 Bolt, With Washer |
90119-08038-00 |
from US $2 |
||
|
33
|
33
EU0-67324-00-00 Plate |
EU0-67324-00-00 |
from US $4.68 |
||
|
34
|
34
EU0-67354-00-01 Sim (0.1)Ur |
EU0-67354-00-01 |
from US $3.97 |
||
| replacement | |||||
|
34
|
34
EU0-67354-A0-00 Shim (T=0.1)Ur |
EU0-67354-A0-00 |
from US $3.32 |
||
|
34
|
34
EU0-67354-00-03 Sim (0.3)Ur |
EU0-67354-00-03 |
from US $3.97 |
||
| replacement | |||||
|
34
|
34
EU0-67354-B0-00 Shim (T=0.3)Ur |
EU0-67354-B0-00 |
from US $3.97 |
||
|
34
|
34
EU0-67354-00-05 Sim (0.5)Ur |
EU0-67354-00-05 |
from US $3.97 |
||
| replacement | |||||
|
34
|
34
EU0-67354-C0-00 Shim (T=0.5)Ｔ＝０．５ Ur |
EU0-67354-C0-00 |
from US $3.97 |
||
|
34
|
34
EU0-67354-00-10 Sim (1.0)Ur |
EU0-67354-00-10 |
from US $3.92 |
||
| replacement | |||||
|
34
|
34
EU0-67354-D0-00 Shim (T=1.0)Ｔ＝１．０ Ur |
EU0-67354-D0-00 |
from US $4.53 |
||
|
34
|
34
EU0-67354-00-20 Sim (2.0)Ur |
EU0-67354-00-20 |
from US $3.92 |
||
| replacement | |||||
|
34
|
34
EU0-67354-E0-00 Shim (T=2.0)Ur |
EU0-67354-E0-00 |
from US $5.81 |
||
|
35
|
35
6E0-28193-00-94 Plug, Water Check |
6E0-28193-00-94 |
US $9.35 |
||
| replacement | |||||
|
35
|
35
6E0-28193-00-00 Plug, Water Check |
6E0-28193-00-00 |
from US $9.35 |
||
