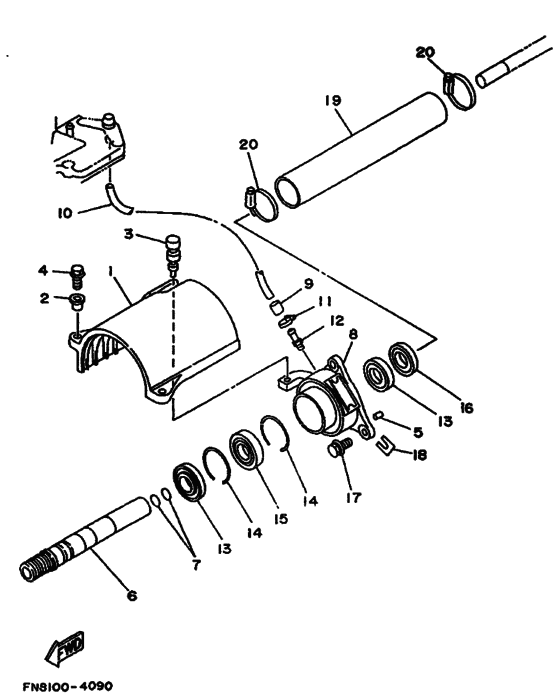

Jet unit 2 Diagram Yamaha 650TX
- Model code
- FN8K
- Year
- 1994
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61X-51381-00-00 Cover |
61X-51381-00-00 |
from US $17.54 |
||
|
2
|
2
90387-06M60-00 Collar |
90387-06M60-00 |
from US $3.32 |
||
|
3
|
3
90480-06M46-00 Grommet |
90480-06M46-00 |
from US $5.24 |
||
|
4
|
4
97595-06225-00 Bolt, With Washer |
97595-06225-00 |
US $1.21 |
||
| replacements | |||||
|
4
|
4
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
4
|
4
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
|
4
|
4
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.07 |
||
|
5
|
5
93606-07M17-00 Pin, Dowel |
93606-07M17-00 |
from US $1.98 |
||
|
6
|
6
62E-51323-00-00 Shaft, Coupler |
62E-51323-00-00 |
US $331.61 |
||
|
7
|
7
93210-17MA4-00 O-Ring |
93210-17MA4-00 |
from US $1.34 |
||
|
8
|
8
61L-45332-00-9M
Housing, Bearing
|
61L-45332-00-9M |
— | ||
| replacement | |||||
|
8
|
8
999-99026-42-00
Housing Set, Bearing (61L-00)
|
999-99026-42-00 |
— | ||
|
9
|
9
903-86080-06-00 Bush |
903-86080-06-00 |
from US $2.41 |
||
|
10
|
10
90445-09M17-00 Hose (L445) |
90445-09M17-00 |
from US $14.73 |
||
| replacement | |||||
|
10
|
10
90445-09M21-00 Hose (L445) |
90445-09M21-00 |
from US $14.73 |
||
|
11
|
11
90460-11M17-00 Clamp, Hose |
90460-11M17-00 |
from US $7.73 |
||
|
12
|
12
61L-45378-00-00 Nipple, Hose |
61L-45378-00-00 |
from US $7.62 |
||
|
13
|
13
93101-25M52-00 Oil Seal |
93101-25M52-00 |
from US $13.46 |
||
| replacement | |||||
|
13
|
13
93101-25M55-00 Oil Seal |
93101-25M55-00 |
from US $13.46 |
||
|
14
|
14
93430-47M04-00 Circlip |
93430-47M04-00 |
from US $4.64 |
||
|
15
|
15
93305-205U0-00 Bearing |
93305-205U0-00 |
US $77.18 |
||
|
16
|
16
93101-25M53-00 Oil Seal |
93101-25M53-00 |
from US $23.52 |
||
| replacement | |||||
|
16
|
16
93101-25M56-00 Oil Seal |
93101-25M56-00 |
from US $23.52 |
||
|
17
|
17
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
|
18
|
18
GD0-67249-00-05 Shim |
GD0-67249-00-05 |
from US $1.15 |
||
| replacements | |||||
|
18
|
18
GD0-67249-A0-00 Shim (T=0.5) |
GD0-67249-A0-00 |
from US $1.56 |
||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
GD0-67249-00-10 ShimUR |
GD0-67249-00-10 |
from US $1.56 |
||
| replacements | |||||
|
18
|
18
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
18
|
18
GD0-67249-B0-00 Shim (T=1.0)Ｔ＝１．０ UR |
GD0-67249-B0-00 |
from US $1.56 |
||
|
19
|
19
FN8-6883B-00-00
Pipe 1
|
FN8-6883B-00-00 |
— | ||
| replacement | |||||
|
19
|
19
FN8-6883B-01-00
Pipe 1
|
FN8-6883B-01-00 |
— | ||
|
20
|
20
90601-152U3-00 Band, Hose 52 |
90601-152U3-00 |
from US $5.38 |
||
