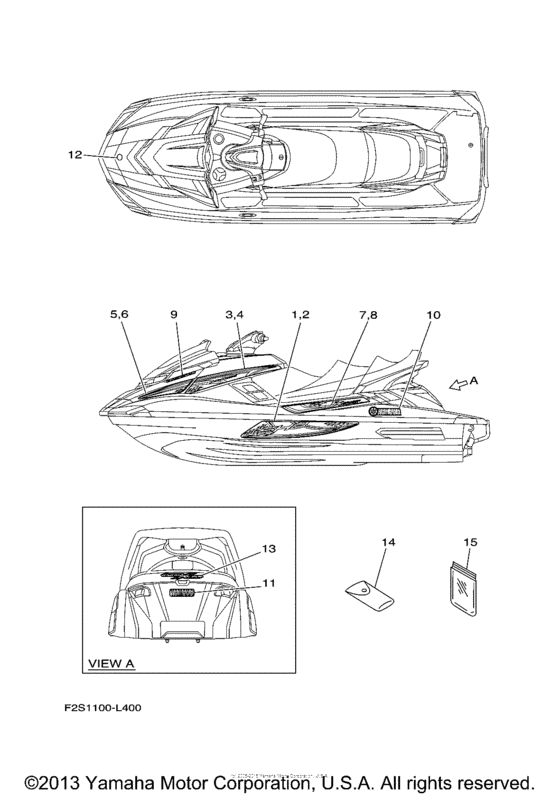

Graphics Diagram Yamaha FA1800 FX Cruiser
- Engine Capacity
- 1800
- Year
- 2012
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2S-U417B-00-00 Graphic 1 (Lh)LH FOR BLUE |
F2S-U417B-00-00 |
from US $32.99 |
||
|
1
|
1
F2S-U417B-10-00 Graphic 1 (Lh)LH FOR GRAY |
F2S-U417B-10-00 |
from US $23.92 |
||
|
2
|
2
F2S-U417C-10-00 Graphic 2 (Rh)RH FOR GRAY |
F2S-U417C-10-00 |
from US $23.92 |
||
|
2
|
2
F2S-U417C-00-00 Graphic 2 (Rh)RH FOR BLUE |
F2S-U417C-00-00 |
from US $24.16 |
||
|
3
|
3
F2S-U417D-00-00 Graphic 3 (Lh)LH FOR BLUE |
F2S-U417D-00-00 |
from US $24.28 |
||
|
3
|
3
F2S-U417D-10-00 Graphic 3 (Lh)LH FOR GRAY |
F2S-U417D-10-00 |
from US $17.78 |
||
|
4
|
4
F2S-U417E-00-00 Graphic 4 (Rh)RH FOR BLUE |
F2S-U417E-00-00 |
from US $21.24 |
||
|
4
|
4
F2S-U417E-10-00 Graphic 4 (Rh)RH FOR GRAY |
F2S-U417E-10-00 |
from US $16.83 |
||
|
5
|
5
F2S-U417F-00-00 Graphic 5 (Lh)LH FOR BLUE |
F2S-U417F-00-00 |
from US $16.18 |
||
|
5
|
5
F2S-U417F-10-00 Graphic 5 (Lh)LH FOR GRAY |
F2S-U417F-10-00 |
from US $11.47 |
||
|
6
|
6
F2S-U417G-00-00 Graphic 6 (Rh)RH FOR BLUE |
F2S-U417G-00-00 |
from US $11.75 |
||
|
6
|
6
F2S-U417G-10-00 Graphic 6 (Rh)RH FOR GRAY |
F2S-U417G-10-00 |
from US $15.17 |
||
|
7
|
7
F2S-U417J-10-00 Graphic 8 (Rh)LH FOR GRAY LH |
F2S-U417J-10-00 |
from US $19.22 |
||
|
7
|
7
F2S-U417J-00-00 Graphic 8 (Rh)LH FOR BLUE LH |
F2S-U417J-00-00 |
from US $20.23 |
||
|
8
|
8
F2S-U417H-00-00 Graphic 7 (Lh)RH FOR BLUE RH |
F2S-U417H-00-00 |
from US $20.23 |
||
|
8
|
8
F2S-U417H-10-00 Graphic 7 (Lh)RH FOR GRAY RH |
F2S-U417H-10-00 |
from US $19.22 |
||
|
9
|
9
F2S-U417M-00-00 Graphic CFOR BLUE |
F2S-U417M-00-00 |
US $25.27 |
||
|
9
|
9
F2S-U417M-10-00 Graphic CFOR GRAY |
F2S-U417M-10-00 |
from US $39.65 |
||
|
10
|
10
F2R-U411C-00-00 Emblem, YamahaFOR GRAY |
F2R-U411C-00-00 |
from US $9.31 |
||
|
10
|
10
F1W-U411C-20-00 Emblem, YamahaFOR BLUE |
F1W-U411C-20-00 |
from US $43.24 |
||
|
11
|
11
F2R-U4114-00-00 Mark, Yamaha AFOR GRAY |
F2R-U4114-00-00 |
from US $37.86 |
||
|
11
|
11
F1W-U4114-20-00 Mark, Yamaha AFOR BLUE |
F1W-U4114-20-00 |
from US $2.84 |
||
|
12
|
12
F2S-6411H-00-00 Emblem, Tuning Fork |
F2S-6411H-00-00 |
from US $42.97 |
||
|
13
|
13
F1W-U4121-00-00 Emblem A |
F1W-U4121-00-00 |
from US $9.18 |
||
|
14
|
14
F1B-65986-10-00 Tool Set |
F1B-65986-10-00 |
from US $34.85 |
||
| replacements | |||||
|
14
|
14
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
14
|
14
F1B-65986-13-00 Tool Set |
F1B-65986-13-00 |
from US $34.85 |
||
|
15
|
15
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
15
|
15
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
15
|
15
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
