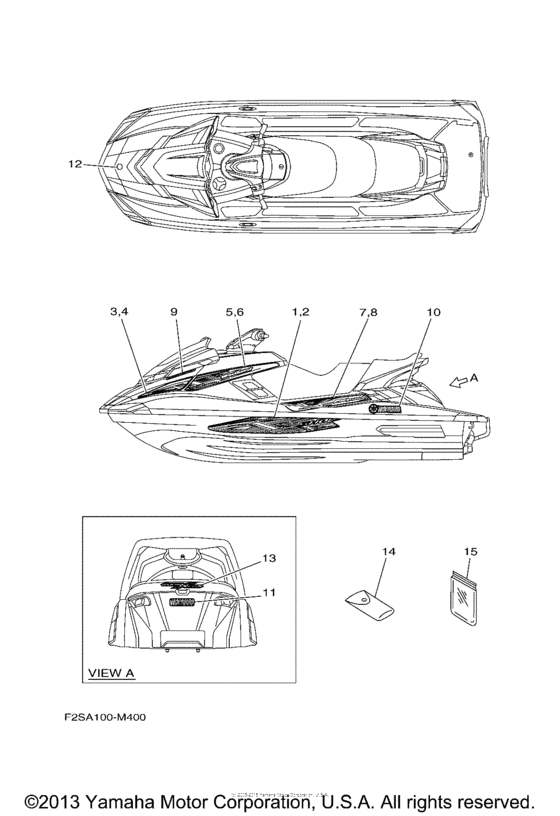

Graphics Diagram Yamaha FA1800 Wave Runner SHO
- Engine Capacity
- 1800
- Year
- 2013
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2S-U417B-60-00 Graphic 1 (Lh)LH FOR BLUE |
F2S-U417B-60-00 |
from US $62.75 |
||
|
1
|
1
F2S-U417B-70-00 Graphic 1 (Lh)LH FOR BLACK |
F2S-U417B-70-00 |
from US $50.51 |
||
|
2
|
2
F2S-U417C-70-00 Graphic 2 (Rh)RH FOR BLACK |
F2S-U417C-70-00 |
from US $50.51 |
||
|
2
|
2
F2S-U417C-60-00 Graphic 2 (Rh)RH FOR BLUE |
F2S-U417C-60-00 |
from US $62.75 |
||
|
3
|
3
F2S-U417D-70-00 Graphic 3 (Lh)LH FOR BLACK |
F2S-U417D-70-00 |
from US $8.91 |
||
|
3
|
3
F2S-U417D-60-00 Graphic 3 (Lh)LH FOR BLUE |
F2S-U417D-60-00 |
from US $11.04 |
||
|
4
|
4
F2S-U417E-70-00 Graphic 4 (Rh)RH FOR BLACK |
F2S-U417E-70-00 |
from US $11.29 |
||
|
4
|
4
F2S-U417E-60-00 Graphic 4 (Rh)RH FOR BLUE |
F2S-U417E-60-00 |
from US $12.99 |
||
|
5
|
5
F2S-U417F-70-00 Graphic 5 (Lh)LH FOR BLACK |
F2S-U417F-70-00 |
from US $16.99 |
||
|
5
|
5
F2S-U417F-60-00 Graphic 5 (Lh)LH FOR BLUE |
F2S-U417F-60-00 |
US $36.75 |
||
|
6
|
6
F2S-U417G-70-00 Graphic 6 (Rh)RH FOR BLACK |
F2S-U417G-70-00 |
from US $16.99 |
||
|
6
|
6
F2S-U417G-60-00
Graphic 6 (Rh)
RH FOR BLUE |
F2S-U417G-60-00 |
— | ||
|
7
|
7
F2S-U417H-60-00 Graphic 7 (Lh)LH FOR BLUE |
F2S-U417H-60-00 |
from US $11.12 |
||
|
7
|
7
F2S-U417H-70-00 Graphic 7 (Lh)LH FOR BLACK |
F2S-U417H-70-00 |
from US $8.87 |
||
|
8
|
8
F2S-U417J-60-00 Graphic 8 (Rh)RH FOR BLUE |
F2S-U417J-60-00 |
from US $11.12 |
||
|
8
|
8
F2S-U417J-70-00 Graphic 8 (Rh)RH FOR BLACK |
F2S-U417J-70-00 |
from US $8.91 |
||
|
9
|
9
F2S-U417M-10-00 Graphic CFOR BLACK |
F2S-U417M-10-00 |
from US $39.65 |
||
|
9
|
9
F2S-U417M-40-00 Graphic CFOR BLUE |
F2S-U417M-40-00 |
from US $31.37 |
||
|
10
|
10
F2S-U4116-00-00 Mark, Yamaha 3 |
F2S-U4116-00-00 |
from US $52.63 |
||
| replacements | |||||
|
10
|
10
F3J-U4116-00-00 MARK, YAMAHA 3 |
F3J-U4116-00-00 |
from US $49.13 |
||
|
10
|
10
F3J-U4116-02-00 Mark,Yamaha 3 |
F3J-U4116-02-00 |
from US $52.63 |
||
|
11
|
11
F2P-U4114-20-00 Mark, Yamaha AFOR BLUE |
F2P-U4114-20-00 |
from US $10.26 |
||
|
11
|
11
F2P-U4114-40-00 Mark, Yamaha AFOR BLACK |
F2P-U4114-40-00 |
from US $4.14 |
||
|
12
|
12
F2S-6411H-00-00 Emblem, Tuning Fork |
F2S-6411H-00-00 |
from US $42.97 |
||
|
13
|
13
F1W-U4121-00-00 Emblem A |
F1W-U4121-00-00 |
from US $9.18 |
||
|
14
|
14
F1B-65986-10-00 Tool Set |
F1B-65986-10-00 |
from US $34.85 |
||
| replacements | |||||
|
14
|
14
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
14
|
14
F1B-65986-13-00 Tool Set |
F1B-65986-13-00 |
from US $34.85 |
||
|
15
|
15
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
15
|
15
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
15
|
15
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
