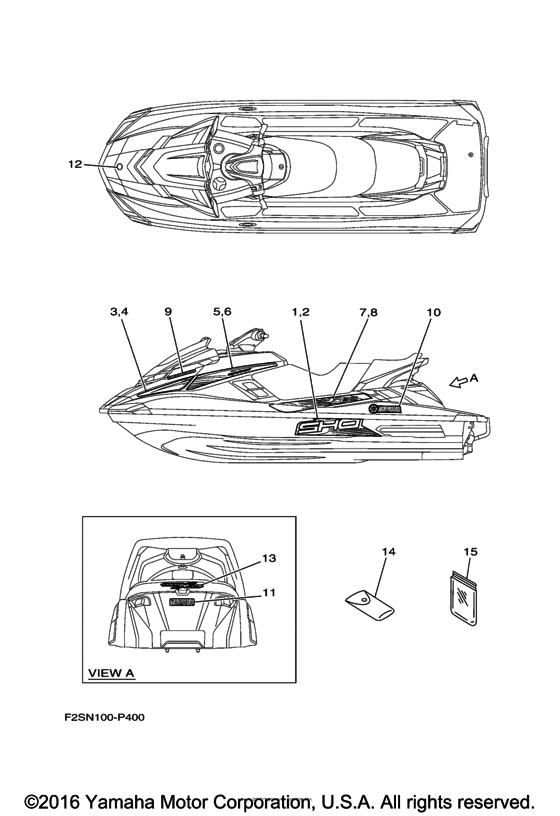

Graphics Diagram Yamaha FA1800
- Year
- 2015
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2S-U417B-B0-00 Graphic 1 (Lh) |
F2S-U417B-B0-00 |
from US $27.99 |
||
|
2
|
2
F2S-U417C-B0-00 Graphic 2 (Rh) |
F2S-U417C-B0-00 |
from US $29.34 |
||
|
3
|
3
F2S-U417D-B0-00 Graphic 3 (Lh) |
F2S-U417D-B0-00 |
from US $12.29 |
||
|
4
|
4
F2S-U417E-B0-00 Graphic 4 (Rh) |
F2S-U417E-B0-00 |
from US $17.19 |
||
|
5
|
5
F2S-U417F-B0-00 Graphic 5 (Lh) |
F2S-U417F-B0-00 |
from US $23.50 |
||
|
6
|
6
F2S-U417G-B0-00 Graphic 6 (Rh) |
F2S-U417G-B0-00 |
from US $23.50 |
||
|
7
|
7
F2S-U417H-B0-00 Graphic 7 (Lh) |
F2S-U417H-B0-00 |
from US $23.27 |
||
|
8
|
8
F2S-U417J-B0-00 Graphic 8 (Rh) |
F2S-U417J-B0-00 |
from US $21.58 |
||
|
9
|
9
F3K-U417M-20-00 Graphic C |
F3K-U417M-20-00 |
from US $11.48 |
||
|
10
|
10
F2S-U4116-00-00 Mark, Yamaha 3 |
F2S-U4116-00-00 |
from US $52.63 |
||
| replacements | |||||
|
10
|
10
F3J-U4116-00-00 MARK, YAMAHA 3 |
F3J-U4116-00-00 |
from US $49.13 |
||
|
10
|
10
F3J-U4116-02-00 Mark,Yamaha 3 |
F3J-U4116-02-00 |
from US $52.63 |
||
|
11
|
11
F2P-U4114-10-00 Mark, Yamaha A |
F2P-U4114-10-00 |
from US $10.17 |
||
|
12
|
12
F2S-6411H-00-00 Emblem, Tuning Fork |
F2S-6411H-00-00 |
from US $42.97 |
||
|
13
|
13
F1W-U4121-00-00 Emblem A |
F1W-U4121-00-00 |
from US $9.18 |
||
|
14
|
14
F1B-65986-13-00 Tool Set |
F1B-65986-13-00 |
from US $34.85 |
||
| replacement | |||||
|
14
|
14
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
15
|
15
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
| replacement | |||||
|
15
|
15
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
