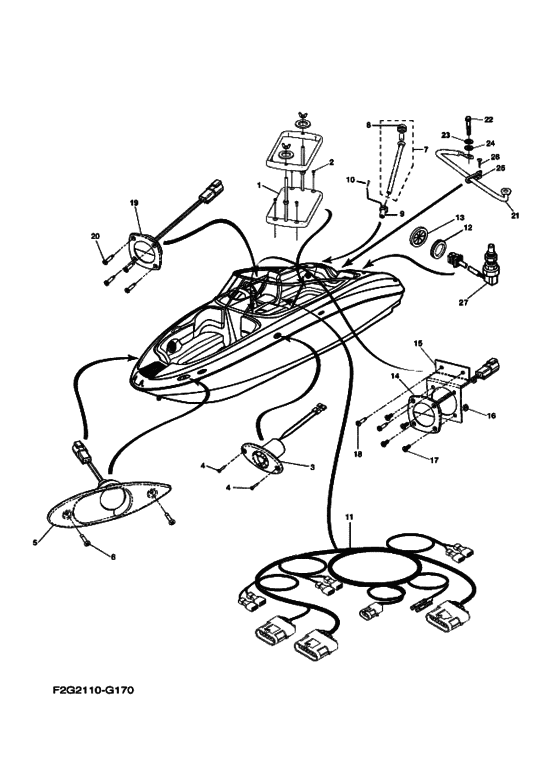

Electrical 3 Diagram Yamaha FAT1100 SX212SS/X (AR212SS/X)
- Model code
- F2G2
- Engine Capacity
- 1100
- Year
- 2008
- Sales region
- Europe (020)
- Colour
- Vivid Red Coat C (VRCC; GA7A)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1T-U8210-00-00 Battery Case Assy |
F1T-U8210-00-00 |
US $47.66 |
||
| replacements | |||||
|
1
|
1
F2D-U8210-00-00 Battery Case Assy |
F2D-U8210-00-00 |
from US $22.37 |
||
|
1
|
1
F2D-U8210-01-00 Battery Case Assy |
F2D-U8210-01-00 |
from US $19.22 |
||
|
2
|
2
901-6708S-B4-00 Screw, Tapping |
901-6708S-B4-00 |
from US $3.54 |
||
|
3
|
3
F1T-U8304-10-00
Single Horn Assy
|
F1T-U8304-10-00 |
— | ||
| replacement | |||||
|
3
|
3
F3H-U8304-00-00 Single Horn Assy |
F3H-U8304-00-00 |
from US $76.93 |
||
|
4
|
4
901-6708S-16-00 Screw, Tapping |
901-6708S-16-00 |
from US $3.29 |
||
|
5
|
5
F1T-U813A-00-00 Bow Light Set |
F1T-U813A-00-00 |
US $135.72 |
||
|
6
|
6
90162-08S12-00 Screw, Tapping |
90162-08S12-00 |
from US $1.70 |
||
|
7
|
7
F1C-U8150-00-00 Stern Light Assy |
F1C-U8150-00-00 |
from US $124.38 |
||
| replacement | |||||
|
7
|
7
F1C-STERN-LT-KT Stern Light Kit |
F1C-STERN-LT-KT |
US $140.99 |
||
|
8
|
8
F1C-U8153-00-00 Lens, Stern Light |
F1C-U8153-00-00 |
from US $8.95 |
||
|
9
|
9
F1C-U8147-10-00
Socket
|
F1C-U8147-10-00 |
— | ||
|
10
|
10
901-6708S-12-00 Screw, Tapping |
901-6708S-12-00 |
from US $3.05 |
||
|
11
|
11
F2G-U827L-00-00 Wire Harness 9 |
F2G-U827L-00-00 |
US $1,171.19 |
||
| replacement | |||||
|
11
|
11
F2G-U827L-01-00 Wire Harness 9 |
F2G-U827L-01-00 |
US $706.70 |
||
|
12
|
12
F1C-U136D-10-00 Grommet |
F1C-U136D-10-00 |
from US $5.53 |
||
|
13
|
13
F1C-U1365-00-00 Grommet |
F1C-U1365-00-00 |
US $16.92 |
||
|
14
|
14
F1C-U8124-10-00 Light, Room 1 |
F1C-U8124-10-00 |
from US $50.60 |
||
|
15
|
15
F1T-U8571-00-00 Bracket 1 |
F1T-U8571-00-00 |
US $50.60 |
||
|
16
|
16
901-8508S-00-00 Nut, Self-Locking |
901-8508S-00-00 |
US $7.20 |
||
|
17
|
17
901-5208S-08-00 Screw, Countersunk |
901-5208S-08-00 |
from US $3.54 |
||
|
18
|
18
901-6910S-A4-00 Tapping Screw |
901-6910S-A4-00 |
from US $1.70 |
||
|
19
|
19
F1C-U8124-10-00 Light, Room 1 |
F1C-U8124-10-00 |
from US $50.60 |
||
|
20
|
20
901-6106S-12-00 Screw, Tapping |
901-6106S-12-00 |
from US $1.70 |
||
|
21
|
21
F0R-U827J-00-00 Wire Harness 7 |
F0R-U827J-00-00 |
from US $85.03 |
||
|
22
|
22
901-0108S-A3-00 Bolt |
901-0108S-A3-00 |
from US $3.68 |
||
|
23
|
23
902-04088-00-00 Washer, Spring |
902-04088-00-00 |
from US $1.70 |
||
|
24
|
24
9299R-08600-00 Washer |
9299R-08600-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
25
|
25
904-64448-01-00 Clamp |
904-64448-01-00 |
from US $3.33 |
||
|
26
|
26
901-6708S-12-00 Screw, Tapping |
901-6708S-12-00 |
from US $3.05 |
||
|
27
|
27
F1C-6834B-00-00 Switch, Engine Stop |
F1C-6834B-00-00 |
from US $121.03 |
||
