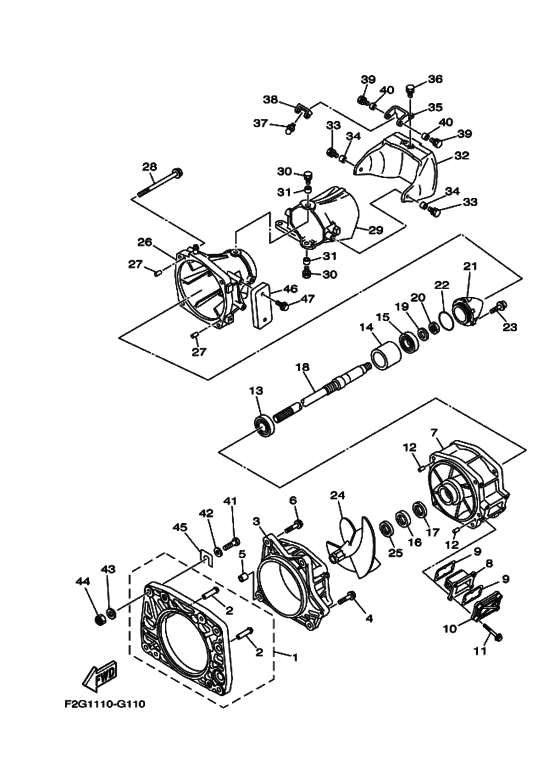

Jet unit 1 Diagram Yamaha FAT1100 SX212SS/X (AR212SS/X)
- Model code
- F2G2
- Engine Capacity
- 1100
- Year
- 2008
- Sales region
- Europe (020)
- Colour
- Vivid Red Coat C (VRCC; GA7A)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6B5-G5831-00-94 Plate, Transom |
6B5-G5831-00-94 |
US $258.32 |
||
| replacement | |||||
|
1
|
1
6B5-G5831-00-8S
Plate, Transom
|
6B5-G5831-00-8S |
— | ||
|
2
|
2
6B5-R1129-00-00 Nipple |
6B5-R1129-00-00 |
US $9.52 |
||
|
3
|
3
66V-51312-01-94 Housing, Impeller |
66V-51312-01-94 |
from US $310.65 |
||
| replacement | |||||
|
3
|
3
6CR-R1312-00-00 HOUSING, IMPELLER |
6CR-R1312-00-00 |
from US $186.28 |
||
|
4
|
4
90119-06835-00 Bolt,with Washer |
90119-06835-00 |
from US $0.79 |
||
| replacement | |||||
|
4
|
4
901-19068-94-00 Bolt, With Washer |
901-19068-94-00 |
from US $2.65 |
||
|
5
|
5
6B5-R1719-00-00 Collar, Guide |
6B5-R1719-00-00 |
from US $15.68 |
||
|
6
|
6
90119-10836-00 Bolt,with Washer |
90119-10836-00 |
from US $3.40 |
||
| replacements | |||||
|
6
|
6
901-19108-11-00 Bolt, With Washer |
901-19108-11-00 |
from US $2.65 |
||
|
6
|
6
97595-10545-00 Bolt, With Washer |
97595-10545-00 |
US $3.40 |
||
|
6
|
6
97E95-10545-00 Bolt, Hexagon W/w Deep Recess |
97E95-10545-00 |
from US $2.97 |
||
|
7
|
7
6B6-51315-01-94 Duct, Impeller |
6B6-51315-01-94 |
from US $441.94 |
||
| replacements | |||||
|
7
|
7
6B6-51315-01-00 Duct, Impeller |
6B6-51315-01-00 |
from US $441.94 |
||
|
7
|
7
999-99044-30-00 DUCT IMPELLER SET |
999-99044-30-00 |
from US $139.70 |
||
|
8
|
8
66V-46882-00-00 Filter |
66V-46882-00-00 |
from US $11.05 |
||
|
9
|
9
66V-42414-00-00 O-Ring |
66V-42414-00-00 |
from US $6.52 |
||
|
10
|
10
66V-45214-00-94 Cover, Water Inlet 1 |
66V-45214-00-94 |
from US $22.95 |
||
|
11
|
11
97595-06535-00 Bolt, With Washer |
97595-06535-00 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
12
|
12
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
13
|
13
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
13
|
13
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $23.24 |
||
|
14
|
14
65V-45538-00-00 Spacer 1 |
65V-45538-00-00 |
from US $21.88 |
||
|
15
|
15
93306-304U1-00 Bearing |
93306-304U1-00 |
from US $23.48 |
||
| replacement | |||||
|
15
|
15
933-06304-XB-00 BEARING |
933-06304-XB-00 |
from US $24.28 |
||
|
16
|
16
93101-28M66-00 Oil Seal |
93101-28M66-00 |
from US $21.64 |
||
|
17
|
17
93101-28002-00 Oil Seal |
93101-28002-00 |
from US $12.48 |
||
|
18
|
18
68Y-45511-00-00 Shaft, Drive |
68Y-45511-00-00 |
from US $504.97 |
||
| replacement | |||||
|
18
|
18
68Y-G5511-00-00 SHAFT, DRIVE |
68Y-G5511-00-00 |
from US $465.12 |
||
|
19
|
19
92990-16600-00 Washer, Plain |
92990-16600-00 |
from US $4.25 |
||
| replacement | |||||
|
19
|
19
92990-16200-00 Washer, Plain |
92990-16200-00 |
from US $4.08 |
||
|
20
|
20
95317-16700-00 Nut(6F2) |
95317-16700-00 |
from US $4.72 |
||
|
21
|
21
6B6-51326-10-94 Cap |
6B6-51326-10-94 |
from US $31.17 |
||
| replacement | |||||
|
21
|
21
6B6-51326-10-00 Cap |
6B6-51326-10-00 |
from US $31.17 |
||
|
22
|
22
93210-464A3-00 O-Ring |
93210-464A3-00 |
from US $2.50 |
||
|
23
|
23
90110-06038-00 Bolt, Hexagon Socket Head |
90110-06038-00 |
from US $3.54 |
||
|
24
|
24
6P6-R1321-00-00
Impeller
UR |
6P6-R1321-00-00 |
— | ||
|
24
|
24
6P6-R1321-10-00
Impeller
UR |
6P6-R1321-10-00 |
— | ||
|
25
|
25
66V-R1348-10-00 Spacer |
66V-R1348-10-00 |
from US $15.95 |
||
|
26
|
26
6BE-51318-00-94 Nozzle |
6BE-51318-00-94 |
US $273.58 |
||
|
27
|
27
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
28
|
28
901-19100-01-00 Bolt, With Washer |
901-19100-01-00 |
from US $14.17 |
||
| replacement | |||||
|
28
|
28
901-19100-55-00 Bolt, With Washer |
901-19100-55-00 |
from US $13.60 |
||
|
29
|
29
65B-51313-10-8S Nozzle, Deflector |
65B-51313-10-8S |
from US $421.90 |
||
| replacement | |||||
|
29
|
29
6AP-51313-10-00 Nozzle, Deflector |
6AP-51313-10-00 |
from US $482.89 |
||
|
30
|
30
975-95085-20-00
Bolt
|
975-95085-20-00 |
— | ||
| replacement | |||||
|
30
|
30
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
31
|
31
90387-08M08-00 Collar |
90387-08M08-00 |
from US $6.40 |
||
| replacement | |||||
|
31
|
31
90387-08M27-00
Collar
|
90387-08M27-00 |
— | ||
|
32
|
32
65B-51314-00-8S
Gate, Reverse/bolt/c
|
65B-51314-00-8S |
— | ||
| replacement | |||||
|
32
|
32
999-99040-78-00 Reverse Gate |
999-99040-78-00 |
from US $113.29 |
||
|
33
|
33
975-95085-20-00
Bolt
|
975-95085-20-00 |
— | ||
| replacement | |||||
|
33
|
33
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
34
|
34
90387-08M08-00 Collar |
90387-08M08-00 |
from US $6.40 |
||
| replacement | |||||
|
34
|
34
90387-08M27-00
Collar
|
90387-08M27-00 |
— | ||
|
35
|
35
65B-44121-00-00 Lever, Shift Rod |
65B-44121-00-00 |
from US $39.65 |
||
|
36
|
36
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $3.05 |
||
| replacement | |||||
|
36
|
36
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
37
|
37
6R8-42316-00-00 Bolt,joint |
6R8-42316-00-00 |
from US $17.85 |
||
|
38
|
38
6R8-44125-00-00 Lever, Shift Rod |
6R8-44125-00-00 |
from US $17.99 |
||
|
39
|
39
975-95065-12-00
Bolt, With Washer
|
975-95065-12-00 |
— | ||
| replacements | |||||
|
39
|
39
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
39
|
39
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
39
|
39
97E95-06512-00 Bolt, Hexagon W/w De |
97E95-06512-00 |
from US $1.07 |
||
|
40
|
40
90387-06M24-00 Collar |
90387-06M24-00 |
from US $7.49 |
||
|
41
|
41
970-9R100-65-00 Bolt |
970-9R100-65-00 |
from US $9 |
||
|
42
|
42
902-01108-00-00 Washer, Plate |
902-01108-00-00 |
from US $1.70 |
||
|
43
|
43
902-01108-02-00 Washer, Plate |
902-01108-02-00 |
from US $5.89 |
||
|
44
|
44
956-80101-00-00 Nut, U |
956-80101-00-00 |
from US $5.95 |
||
|
45
|
45
GD0-U7249-00-05 Shim (T=0.5)UN |
GD0-U7249-00-05 |
from US $1.56 |
||
|
46
|
46
F1C-U7697-10-00 Anode (A006760850) |
F1C-U7697-10-00 |
from US $29.91 |
||
| replacement | |||||
|
46
|
46
F3F-U7697-00-00 ANODE |
F3F-U7697-00-00 |
from US $30.35 |
||
|
47
|
47
90119-06803-00 Bolt, With Washer |
90119-06803-00 |
from US $4.25 |
||
