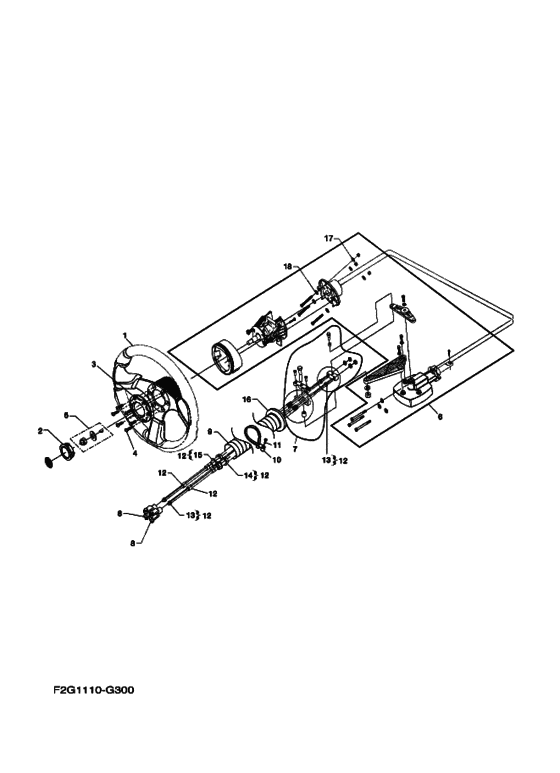

Steering Diagram Yamaha FAT1100 SX212SS/X (AR212SS/X)
- Model code
- F2G2
- Engine Capacity
- 1100
- Year
- 2008
- Sales region
- Europe (020)
- Colour
- Vivid Red Coat C (VRCC; GA7A)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2G-U1511-00-00 Wheel, Steering |
F2G-U1511-00-00 |
US $520.88 |
||
| replacement | |||||
|
1
|
1
F2G-U1511-01-00 Wheel, Steering |
F2G-U1511-01-00 |
US $508.18 |
||
|
2
|
2
F2A-U155G-00-00 Plate, Cover |
F2A-U155G-00-00 |
from US $143.96 |
||
|
3
|
3
F2A-U143J-00-00 Cover |
F2A-U143J-00-00 |
from US $24.28 |
||
|
4
|
4
901-11068-16-00 Bolt,hex. Socket Button |
901-11068-16-00 |
from US $4.95 |
||
|
5
|
5
F0R-U1350-00-00 Steering Guide Attachment Kit |
F0R-U1350-00-00 |
from US $9.85 |
||
| replacement | |||||
|
5
|
5
F1C-U1350-00-00 Steering Guide Attachment Ki |
F1C-U1350-00-00 |
from US $39.47 |
||
|
6
|
6
F1C-U1400-01-00 Steering Master Assy |
F1C-U1400-01-00 |
US $586.53 |
||
| replacement | |||||
|
6
|
6
F2D-U1400-00-00 Steering Master Assy |
F2D-U1400-00-00 |
from US $423.20 |
||
|
7
|
7
GP1-U1301-00-00 Twin Kit |
GP1-U1301-00-00 |
from US $101.23 |
||
|
8
|
8
GP1-U1406-00-00 Connector Sub-Assy |
GP1-U1406-00-00 |
from US $155.90 |
||
|
9
|
9
F1T-U773J-00-00 Protector, Hose |
F1T-U773J-00-00 |
from US $14.15 |
||
|
10
|
10
904-64448-01-00 Clamp |
904-64448-01-00 |
from US $3.33 |
||
|
11
|
11
901-6708S-12-00 Screw, Tapping |
901-6708S-12-00 |
from US $3.05 |
||
|
12
|
12
F1T-U1470-10-00 Steering Cable Assy |
F1T-U1470-10-00 |
from US $255.13 |
||
|
13
|
13
901-7015S-A1-00 Nut |
901-7015S-A1-00 |
from US $9.09 |
||
|
14
|
14
901-7021S-00-00 Nut |
901-7021S-00-00 |
from US $17.19 |
||
|
15
|
15
902-0121S-00-00 Washer, Plate |
902-0121S-00-00 |
from US $2.55 |
||
|
16
|
16
F1C-U136D-10-00 Grommet |
F1C-U136D-10-00 |
from US $5.53 |
||
|
17
|
17
902-0414S-00-00 Washer, Spring |
902-0414S-00-00 |
US $6.03 |
||
|
18
|
18
902-0114S-00-00 Washer, Plate |
902-0114S-00-00 |
from US $3.68 |
||
