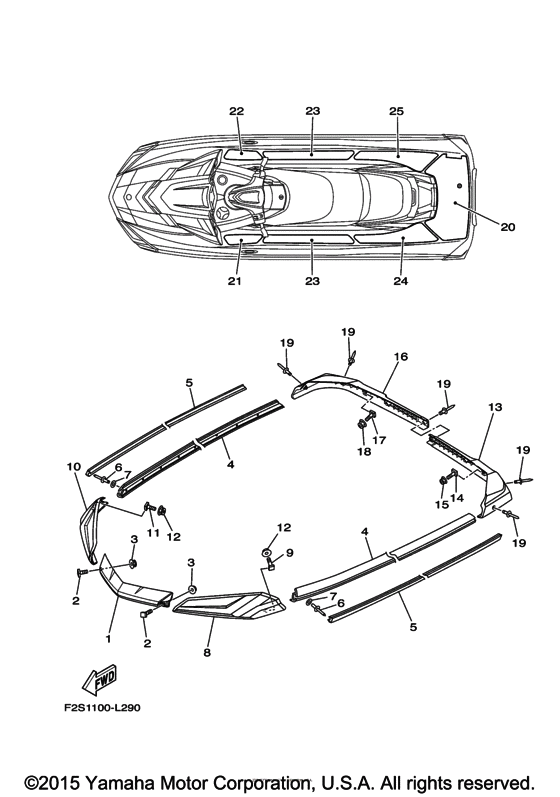

Gunwale & Mat Diagram Yamaha FB1800
- Year
- 2016
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2S-U2511-10-00 Gunwale, BowYAMAHA BLACK |
F2S-U2511-10-00 |
from US $33.68 |
||
|
2
|
2
F1W-U491K-00-00 Bolt, Special |
F1W-U491K-00-00 |
from US $3.42 |
||
| replacement | |||||
|
2
|
2
F1W-U491K-01-00 Bolt, Special |
F1W-U491K-01-00 |
from US $4.04 |
||
|
3
|
3
F2N-U142L-00-00 Nut, Lock |
F2N-U142L-00-00 |
from US $2.13 |
||
|
4
|
4
F2S-U2512-10-00 Gunwale, SideYAMAHA BLACK |
F2S-U2512-10-00 |
from US $60.73 |
||
|
5
|
5
F2S-U2519-40-00 Inner,gunwale (Light Gray)FOR BLACK |
F2S-U2519-40-00 |
from US $28.33 |
||
|
5
|
5
F2S-U2519-50-00 Inner,gunwale (Green)FOR WHITE |
F2S-U2519-50-00 |
from US $30.35 |
||
|
6
|
6
902-67489-U8-00
Rivet, Blind
|
902-67489-U8-00 |
— | ||
| replacement | |||||
|
6
|
6
90267-48932-00 Rivet, Blind (Ad610Abs/llm10P) |
90267-48932-00 |
from US $1.28 |
||
|
7
|
7
9299R-05200-00 Washer |
9299R-05200-00 |
from US $1.56 |
||
|
8
|
8
F2S-U252E-11-00 Joint, Gunwale LhYAMAHA BLACK |
F2S-U252E-11-00 |
from US $42.28 |
||
|
9
|
9
F1W-U491K-00-00 Bolt, Special |
F1W-U491K-00-00 |
from US $3.42 |
||
| replacement | |||||
|
9
|
9
F1W-U491K-01-00 Bolt, Special |
F1W-U491K-01-00 |
from US $4.04 |
||
|
10
|
10
F2S-U252F-11-00 Joint, Gunwale RhYAMAHA BLACK |
F2S-U252F-11-00 |
from US $42.28 |
||
|
11
|
11
F1W-U491K-00-00 Bolt, Special |
F1W-U491K-00-00 |
from US $3.42 |
||
| replacement | |||||
|
11
|
11
F1W-U491K-01-00 Bolt, Special |
F1W-U491K-01-00 |
from US $4.04 |
||
|
12
|
12
F2N-U142L-00-00 Nut, Lock |
F2N-U142L-00-00 |
from US $2.13 |
||
|
13
|
13
F2S-U251D-10-00 Gunwale, Stern 1 LhYAMAHA BLACK |
F2S-U251D-10-00 |
from US $47.54 |
||
|
14
|
14
F1W-U491K-00-00 Bolt, Special |
F1W-U491K-00-00 |
from US $3.42 |
||
| replacement | |||||
|
14
|
14
F1W-U491K-01-00 Bolt, Special |
F1W-U491K-01-00 |
from US $4.04 |
||
|
15
|
15
F2N-U142L-00-00 Nut, Lock |
F2N-U142L-00-00 |
from US $2.13 |
||
|
16
|
16
F2S-U251E-10-00 Gunwale, Stern 2 RhYAMAHA BLACK |
F2S-U251E-10-00 |
from US $47.54 |
||
|
17
|
17
F1W-U491K-00-00 Bolt, Special |
F1W-U491K-00-00 |
from US $3.42 |
||
| replacement | |||||
|
17
|
17
F1W-U491K-01-00 Bolt, Special |
F1W-U491K-01-00 |
from US $4.04 |
||
|
18
|
18
F2N-U142L-00-00 Nut, Lock |
F2N-U142L-00-00 |
from US $2.13 |
||
|
19
|
19
902-67488-25-00 Rivet, Blind |
902-67488-25-00 |
from US $2.69 |
||
|
20
|
20
F2S-U3581-01-00 Mat, UpperDARK GRAY & BLACK |
F2S-U3581-01-00 |
from US $97.18 |
||
|
21
|
21
F2S-U351H-00-00 Mat, Step 1DARK GRAY & BLACK |
F2S-U351H-00-00 |
from US $18.20 |
||
|
22
|
22
F2S-U351J-00-00 Mat, Step 2DARK GRAY & BLACK |
F2S-U351J-00-00 |
from US $15.17 |
||
|
23
|
23
F2S-U351K-00-00 Mat, Step 3DARK GRAY & BLACK |
F2S-U351K-00-00 |
from US $24.28 |
||
|
24
|
24
F2S-U351M-00-00 Mat, Step 4DARK GRAY & BLACK |
F2S-U351M-00-00 |
from US $30.35 |
||
|
25
|
25
F2S-U351N-00-00 Mat, Step 5DARK GRAY & BLACK |
F2S-U351N-00-00 |
from US $31.37 |
||
