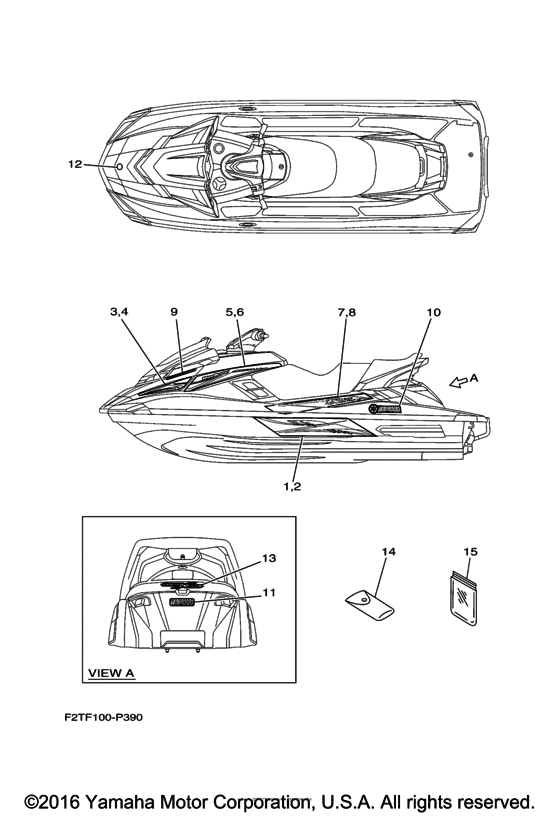

Graphics Diagram Yamaha FB1800
- Year
- 2015
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2T-U417B-A0-00 Graphic 1 (Lh)FOR BLUE |
F2T-U417B-A0-00 |
from US $33.39 |
||
|
1
|
1
F2T-U417B-B0-00 Graphic 1 (Lh)FOR BLACK |
F2T-U417B-B0-00 |
from US $33.39 |
||
|
2
|
2
F2T-U417C-B0-00 Graphic 2 (Rh)FOR BLACK |
F2T-U417C-B0-00 |
from US $33.39 |
||
|
2
|
2
F2T-U417C-A0-00 Graphic 2 (Rh)FOR BLUE |
F2T-U417C-A0-00 |
from US $31.99 |
||
|
3
|
3
F2T-U417D-A0-00 Graphic 3 (Lh)FOR BLUE |
F2T-U417D-A0-00 |
from US $11.45 |
||
|
3
|
3
F2T-U417D-B0-00 Graphic 3 (Lh)FOR BLACK |
F2T-U417D-B0-00 |
from US $15.17 |
||
|
4
|
4
F2T-U417E-B0-00 Graphic 4 (Rh)FOR BLACK |
F2T-U417E-B0-00 |
from US $16.99 |
||
|
4
|
4
F2T-U417E-A0-00 Graphic 4 (Rh)FOR BLUE |
F2T-U417E-A0-00 |
from US $15.17 |
||
|
5
|
5
F2T-U417F-B0-00 Graphic 5 (Lh)FOR BLACK |
F2T-U417F-B0-00 |
from US $18.99 |
||
|
5
|
5
F2T-U417F-A0-00 Graphic 5 (Lh)FOR BLUE |
F2T-U417F-A0-00 |
from US $21.24 |
||
|
6
|
6
F2T-U417G-B0-00 Graphic 6 (Rh)FOR BLACK |
F2T-U417G-B0-00 |
from US $19.99 |
||
|
6
|
6
F2T-U417G-A0-00 Graphic 6 (Rh)FOR BLUE |
F2T-U417G-A0-00 |
from US $36.47 |
||
|
7
|
7
F2T-U417H-B0-00 Graphic 7 (Lh)FOR BLACK |
F2T-U417H-B0-00 |
from US $16.09 |
||
|
7
|
7
F2T-U417H-A0-00 Graphic 7 (Lh)FOR BLUE |
F2T-U417H-A0-00 |
from US $20.23 |
||
|
8
|
8
F2T-U417J-A0-00 Graphic 8 (Rh)FOR BLUE |
F2T-U417J-A0-00 |
from US $19.26 |
||
|
8
|
8
F2T-U417J-B0-00 Graphic 8 (Rh)FOR BLACK |
F2T-U417J-B0-00 |
from US $25.29 |
||
|
9
|
9
F2T-U417M-A0-00 Graphic C |
F2T-U417M-A0-00 |
from US $3.82 |
||
|
10
|
10
F2S-U4116-00-00 Mark, Yamaha 3 |
F2S-U4116-00-00 |
from US $52.63 |
||
| replacements | |||||
|
10
|
10
F3J-U4116-00-00 MARK, YAMAHA 3 |
F3J-U4116-00-00 |
from US $49.13 |
||
|
10
|
10
F3J-U4116-02-00 Mark,Yamaha 3 |
F3J-U4116-02-00 |
from US $52.63 |
||
|
11
|
11
F2P-U4114-20-00 Mark, Yamaha AFOR BLUE |
F2P-U4114-20-00 |
from US $10.26 |
||
|
11
|
11
F2P-U4114-A0-00 Mark, Yamaha AFOR BLACK |
F2P-U4114-A0-00 |
from US $23.27 |
||
|
12
|
12
F2S-6411H-00-00 Emblem, Tuning Fork |
F2S-6411H-00-00 |
from US $42.97 |
||
|
13
|
13
F1W-U4121-00-00 Emblem A |
F1W-U4121-00-00 |
from US $9.18 |
||
|
14
|
14
F1B-65986-13-00 Tool Set |
F1B-65986-13-00 |
from US $34.85 |
||
| replacement | |||||
|
14
|
14
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
15
|
15
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
| replacement | |||||
|
15
|
15
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
