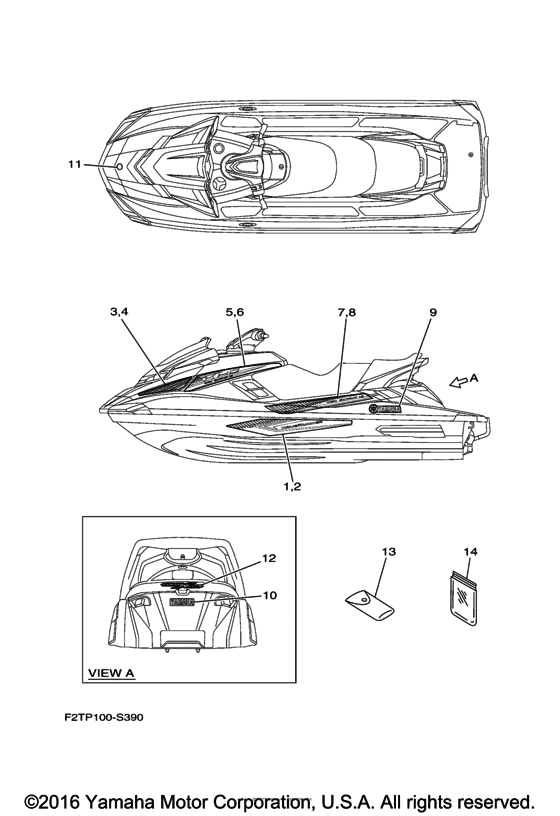

Graphics Diagram Yamaha FB1800
- Year
- 2017
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2T-U417B-J0-00 GRAPHIC 1 |
F2T-U417B-J0-00 |
from US $38.99 |
||
|
2
|
2
F2T-U417C-J0-00 GRAPHIC 2 |
F2T-U417C-J0-00 |
from US $38.99 |
||
|
3
|
3
F2T-U417D-J0-00 GRAPHIC 3 |
F2T-U417D-J0-00 |
from US $19.22 |
||
|
4
|
4
F2T-U417E-J0-00 GRAPHIC 4 |
F2T-U417E-J0-00 |
from US $19.22 |
||
|
5
|
5
F2T-U417F-J0-00 GRAPHIC 5 |
F2T-U417F-J0-00 |
from US $26.30 |
||
|
6
|
6
F2T-U417G-J0-00 GRAPHIC 6 |
F2T-U417G-J0-00 |
from US $26.30 |
||
|
7
|
7
F2T-U417H-J0-00 GRAPHIC 7 |
F2T-U417H-J0-00 |
from US $96.99 |
||
|
8
|
8
F2T-U417J-J0-00 GRAPHIC 8 |
F2T-U417J-J0-00 |
from US $96.99 |
||
|
9
|
9
F3J-U4116-00-00 MARK, YAMAHA 3 |
F3J-U4116-00-00 |
from US $49.13 |
||
| replacements | |||||
|
9
|
9
F3J-U4116-01-00 MARK |
F3J-U4116-01-00 |
from US $49.13 |
||
|
9
|
9
F3J-U4116-02-00 Mark,Yamaha 3 |
F3J-U4116-02-00 |
from US $52.63 |
||
|
10
|
10
F1B-U411C-02-00 Emblem, Yamaha |
F1B-U411C-02-00 |
from US $26.30 |
||
|
11
|
11
F2S-6411H-00-00 Emblem, Tuning Fork |
F2S-6411H-00-00 |
from US $42.97 |
||
|
12
|
12
F1W-U4121-00-00 Emblem A |
F1W-U4121-00-00 |
from US $9.18 |
||
|
13
|
13
F1B-65986-13-00 Tool Set |
F1B-65986-13-00 |
from US $34.85 |
||
| replacement | |||||
|
13
|
13
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
14
|
14
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
| replacement | |||||
|
14
|
14
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
