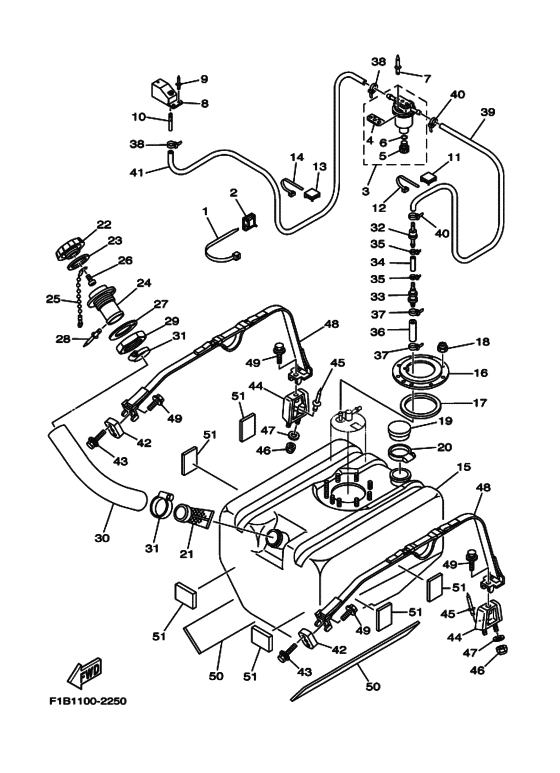

Fuel tank Diagram Yamaha FX1000 FX140
- Model code
- F1B2
- Year
- 2002
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90464-99804-00 ClampYMUS |
90464-99804-00 |
from US $8.93 |
||
|
2
|
2
90600-900U6-00 Base, ClampYMUS |
90600-900U6-00 |
from US $2.57 |
||
|
3
|
3
EW2-62140-00-00 Filter, Vent Assy |
EW2-62140-00-00 |
from US $57.20 |
||
| replacement | |||||
|
3
|
3
F2F-6214A-00-00 Filter, Vent Assy |
F2F-6214A-00-00 |
from US $57.20 |
||
|
4
|
4
EW2-62142-00-00 Plate, Filter |
EW2-62142-00-00 |
from US $26.38 |
||
|
5
|
5
70R-24543-00-00 Plug, Drain |
70R-24543-00-00 |
from US $5.40 |
||
|
6
|
6
70R-24489-00-00 O-Ring |
70R-24489-00-00 |
from US $2.36 |
||
|
7
|
7
90267-489U2-00 Rivet, BlindYMUS |
90267-489U2-00 |
from US $3.40 |
||
|
8
|
8
GP7-62159-01-00 Socket, Ventilation |
GP7-62159-01-00 |
from US $17.59 |
||
| replacement | |||||
|
8
|
8
GP7-62159-02-00 Socket, Ventilation |
GP7-62159-02-00 |
from US $19.41 |
||
|
9
|
9
90267-489U6-00 Rivet, BlindYMUS |
90267-489U6-00 |
from US $2.69 |
||
| replacement | |||||
|
9
|
9
90267-48930-00 Rivet, SealedYMUS |
90267-48930-00 |
from US $2.69 |
||
|
10
|
10
EW2-62149-00-00 Pipe, Ventilation 1 |
EW2-62149-00-00 |
from US $4.82 |
||
|
11
|
11
90600-900U6-00 Base, ClampYMUS |
90600-900U6-00 |
from US $2.57 |
||
|
12
|
12
90464-40825-00 ClampYMUS |
90464-40825-00 |
from US $1.84 |
||
|
13
|
13
90600-900U6-00 Base, ClampYMUS |
90600-900U6-00 |
from US $2.57 |
||
|
14
|
14
90464-40825-00 ClampYMUS |
90464-40825-00 |
from US $1.84 |
||
|
15
|
15
F1B-U7711-01-00 Tank, FuelYMUS |
F1B-U7711-01-00 |
from US $390.20 |
||
|
16
|
16
F1B-U7773-00-00 RingYMUS |
F1B-U7773-00-00 |
from US $29.34 |
||
|
17
|
17
F1B-67747-00-00 Packing, Seal |
F1B-67747-00-00 |
from US $17 |
||
|
18
|
18
9572R-06300-00 Nut, NylonYMUS |
9572R-06300-00 |
from US $1.84 |
||
|
19
|
19
FN8-6771K-00-00 Cover |
FN8-6771K-00-00 |
from US $15.44 |
||
|
20
|
20
90601-162U5-00 Band, Hose 6262; YMUS |
90601-162U5-00 |
from US $10.06 |
||
|
21
|
21
F1B-6775C-00-00 Filter |
F1B-6775C-00-00 |
from US $28.19 |
||
|
22
|
22
GP7-U7831-01-00 Cap, Fuel FillerPURW, YMUS |
GP7-U7831-01-00 |
from US $35.42 |
||
|
23
|
23
GP7-U7832-01-00 PackingYMUS |
GP7-U7832-01-00 |
from US $14.31 |
||
|
24
|
24
GP7-U7833-00-00 SocketYMUS |
GP7-U7833-00-00 |
from US $50.60 |
||
|
25
|
25
GP7-U7835-00-00 Chain BallYMUS |
GP7-U7835-00-00 |
from US $10.03 |
||
|
26
|
26
90169-049U1-00 Tapping ScrewYMUS |
90169-049U1-00 |
from US $5.81 |
||
|
27
|
27
GP7-U7834-00-00 Packing Fuel FillerYMUS |
GP7-U7834-00-00 |
from US $15.02 |
||
|
28
|
28
90267-329UR-00 Rivet, BlindYMUS |
90267-329UR-00 |
from US $3.38 |
||
|
29
|
29
GP7-U783F-00-00 Nut, Fuel FillerYMUS |
GP7-U783F-00-00 |
from US $10.17 |
||
|
30
|
30
F1B-U7844-00-00 HoseYMUS |
F1B-U7844-00-00 |
from US $51.35 |
||
| replacement | |||||
|
30
|
30
F1B-U7844-01-00 HoseYMUS |
F1B-U7844-01-00 |
from US $51.35 |
||
|
31
|
31
90601-155U4-00 Band, Hose 5555; YMUS |
90601-155U4-00 |
from US $9.59 |
||
|
32
|
32
F1B-67767-00-00 Check Valve |
F1B-67767-00-00 |
from US $16.89 |
||
|
33
|
33
FJ0-67766-00-00 Roll Over Valve |
FJ0-67766-00-00 |
from US $41.59 |
||
|
34
|
34
90699-50004-00 Hose (L40) |
90699-50004-00 |
from US $17.43 |
||
| replacement | |||||
|
34
|
34
90699-50100-00 Hose |
90699-50100-00 |
from US $17.43 |
||
|
35
|
35
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
35
|
35
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
35
|
35
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
36
|
36
GP7-U785H-00-00 Hose, Air Vent 3YMUS |
GP7-U785H-00-00 |
from US $6.38 |
||
|
37
|
37
90465-11829-00 ClampYMUS |
90465-11829-00 |
from US $1.50 |
||
| replacements | |||||
|
37
|
37
80L-26397-00-00 BandYMUS |
80L-26397-00-00 |
from US $1.17 |
||
|
37
|
37
904-65100-98-00 ClampYMUS |
904-65100-98-00 |
from US $1.39 |
||
|
38
|
38
90465-11829-00 ClampYMUS |
90465-11829-00 |
from US $1.50 |
||
| replacements | |||||
|
38
|
38
80L-26397-00-00 BandYMUS |
80L-26397-00-00 |
from US $1.17 |
||
|
38
|
38
904-65100-98-00 ClampYMUS |
904-65100-98-00 |
from US $1.39 |
||
|
39
|
39
F0D-U785G-10-00 Hose, Air VentYMUS |
F0D-U785G-10-00 |
from US $10.42 |
||
|
40
|
40
90465-11829-00 ClampYMUS |
90465-11829-00 |
from US $1.50 |
||
| replacements | |||||
|
40
|
40
80L-26397-00-00 BandYMUS |
80L-26397-00-00 |
from US $1.17 |
||
|
40
|
40
904-65100-98-00 ClampYMUS |
904-65100-98-00 |
from US $1.39 |
||
|
41
|
41
F0D-U7856-10-00 Hose, Air Vent 3YMUS |
F0D-U7856-10-00 |
from US $20.23 |
||
|
42
|
42
F1B-U2873-00-00 Nut, SpecialYMUS |
F1B-U2873-00-00 |
from US $32.78 |
||
|
43
|
43
90119-08814-00 Bolt, With WasherYMUS |
90119-08814-00 |
from US $4.97 |
||
| replacements | |||||
|
43
|
43
901-19088-00-00 Bolt, With WasherYMUS |
901-19088-00-00 |
from US $10.66 |
||
|
43
|
43
90119-08903-00 Bolt With Washer (Eu0)YMUS |
90119-08903-00 |
from US $3.49 |
||
|
43
|
43
90119-089U7-00 Bolt, With WasherYMUS |
90119-089U7-00 |
from US $4.97 |
||
|
44
|
44
F1B-6774J-00-00 Brkt, Band |
F1B-6774J-00-00 |
from US $110.94 |
||
|
45
|
45
90267-489U2-00 Rivet, BlindYMUS |
90267-489U2-00 |
from US $3.40 |
||
|
46
|
46
9572R-06300-00 Nut, NylonYMUS |
9572R-06300-00 |
from US $1.84 |
||
|
47
|
47
9299R-06200-00 WasherYMUS |
9299R-06200-00 |
from US $1.07 |
||
|
48
|
48
F1B-67743-01-00 Belt, Tank 1 |
F1B-67743-01-00 |
from US $66.59 |
||
| replacements | |||||
|
48
|
48
F1B-67743-02-00 Belt, Tank 1 |
F1B-67743-02-00 |
from US $63.83 |
||
|
48
|
48
F1B-67743-03-00 |
F1B-67743-03-00 |
US $83 |
||
|
49
|
49
90119-08814-00 Bolt, With WasherYMUS |
90119-08814-00 |
from US $4.97 |
||
| replacements | |||||
|
49
|
49
901-19088-00-00 Bolt, With WasherYMUS |
901-19088-00-00 |
from US $10.66 |
||
|
49
|
49
90119-08903-00 Bolt With Washer (Eu0)YMUS |
90119-08903-00 |
from US $3.49 |
||
|
49
|
49
90119-089U7-00 Bolt, With WasherYMUS |
90119-089U7-00 |
from US $4.97 |
||
|
50
|
50
F1B-U759B-00-00 Mat 1YMUS |
F1B-U759B-00-00 |
from US $28.84 |
||
|
51
|
51
F1B-U759C-00-00 Mat 2YMUS |
F1B-U759C-00-00 |
from US $8.78 |
||
