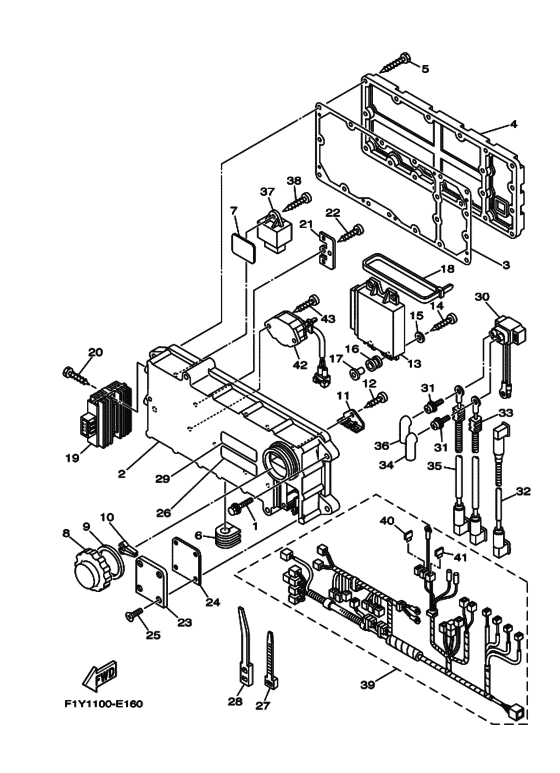

Electrical 1 Diagram Yamaha FX1000 FX Cruiser
- Model code
- F1Y3
- Year
- 2006
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90119-089UT-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-089UT-00 |
from US $6.09 |
||
| replacement | |||||
|
1
|
1
90119-08943-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08943-00 |
from US $5.85 |
||
|
2
|
2
6B6-8552A-00-00 HousingＨＯＵＳＩＮＧ; |
6B6-8552A-00-00 |
from US $149.83 |
||
|
3
|
3
60E-81921-00-00 Gasket, TerminalＧＡＳＫＥＴ， ＴＥＲＭＩＮＡＬ; |
60E-81921-00-00 |
from US $66.45 |
||
|
4
|
4
60E-8552E-00-00 Cover, CaseＣＯＶＥＲ， ＣＡＳＥ; |
60E-8552E-00-00 |
US $58.88 |
||
|
5
|
5
97780-60430-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60430-00 |
from US $2.69 |
||
|
6
|
6
90480-01012-00 GrommetＧＲＯＭＭＥＴ; |
90480-01012-00 |
from US $4.96 |
||
|
7
|
7
60E-84742-00-00 Sheet, BaseＳＥＡＴ， ＢＡＳＥ; |
60E-84742-00-00 |
from US $4.53 |
||
|
8
|
8
66V-8132W-00-00 CapＣＡＰ; |
66V-8132W-00-00 |
from US $17.28 |
||
|
9
|
9
66V-81844-00-00 GasketＧＡＳＫＥＴ; |
66V-81844-00-00 |
from US $7.23 |
||
|
10
|
10
67F-2812A-00-00 Puller, FuseＰＵＬＬＥＲ， ＦＵＳＥ; |
67F-2812A-00-00 |
from US $3.12 |
||
|
11
|
11
60E-82153-00-00 Stay, Fuse HolderＳＴＡＹ， ＦＵＳＥ ＨＯＬＤＥＲ; |
60E-82153-00-00 |
from US $4.96 |
||
|
12
|
12
97780-60516-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60516-00 |
from US $2.23 |
||
| replacement | |||||
|
12
|
12
97780-60116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60116-00 |
from US $3.73 |
||
|
13
|
13
60E-8591A-30-00 Engine Control Unit AssyＥＮＧＩＮＥ ＣＯＮＴＲＯＬ ＵＮＩＴ ＡＳＳＹ; |
60E-8591A-30-00 |
from US $2,051.98 |
||
|
14
|
14
97780-60530-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60530-00 |
from US $2.83 |
||
|
15
|
15
90201-06M05-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-06M05-00 |
US $1.56 |
||
| replacement | |||||
|
15
|
15
90201-06M08-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-06M08-00 |
from US $1.56 |
||
|
16
|
16
6A0-82317-00-00 Damper, Ignition CoilＤＡＭＰＥＲ， ＩＧＮＩＴＩＯＮ ＣＯＩＬ; |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
16
|
16
6A0-82317-01-00 DAMPER IGNITION COILＤＡＭＰＥＲ， ＩＧＮＩＴＩＯＮ ＣＯＩＬ; |
6A0-82317-01-00 |
from US $2.36 |
||
|
17
|
17
90387-06119-00 CollarＣＯＬＬＡＲ; |
90387-06119-00 |
from US $3.26 |
||
|
18
|
18
90464-99003-00 ClampＣＬＡＭＰ; |
90464-99003-00 |
from US $2.75 |
||
|
19
|
19
6S8-81960-00-00 Rectifier & Regulator AssyＲＥＣＴＩＦＩＥＲ ＆ａｍｐ； ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; 参照 |
6S8-81960-00-00 |
from US $287.53 |
||
|
20
|
20
97780-60430-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60430-00 |
from US $2.69 |
||
|
21
|
21
60E-87179-00-00 Plate, CouplerＰＬＡＴＥ， ＣＯＵＰＬＥＲ; |
60E-87179-00-00 |
from US $4.82 |
||
|
22
|
22
97780-60516-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60516-00 |
from US $2.23 |
||
| replacement | |||||
|
22
|
22
97780-60116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60116-00 |
from US $3.73 |
||
|
23
|
23
60E-81916-00-00
Cover, Terminal
ＣＯＶＥＲ， ＴＥＲＭＩＮＡＬ; |
60E-81916-00-00 |
— | ||
|
24
|
24
60E-82533-00-00 GasketＧＡＳＫＥＴ; |
60E-82533-00-00 |
from US $6.09 |
||
|
25
|
25
98680-05520-00 Screw, Flat HeadＳＣＲＥＷ， ＯＶＡＬ ＨＥＡＤ; |
98680-05520-00 |
from US $2.23 |
||
| replacements | |||||
|
25
|
25
98780-05020-00 Screw, Flat HeadＳＣＲＥＷ， ＯＶＡＬ ＨＥＡＤ; |
98780-05020-00 |
from US $1.82 |
||
|
25
|
25
986-80050-20-00 Ybs51-520 Screw,oval HeadＳＣＲＥＷ， ＯＶＡＬ ＨＥＡＤ; |
986-80050-20-00 |
US $1.77 |
||
|
26
|
26
6B6-83623-00-00 Mark 3ＭＡＲＫ ３; |
6B6-83623-00-00 |
from US $8.05 |
||
|
27
|
27
90465-13M97-00 ClampＣＬＡＭＰ; |
90465-13M97-00 |
from US $4.03 |
||
|
28
|
28
90464-50002-00 ClampＣＬＡＭＰ; |
90464-50002-00 |
from US $4.14 |
||
|
29
|
29
60E-83627-00-00 Label, Caution 7ＬＡＢＥＬ， ＣＡＵＴＩＯＮ ７; |
60E-83627-00-00 |
from US $4.53 |
||
|
30
|
30
6B6-81940-00-00 Starter Relay AssyＳＴＡＲＴＥＲ ＲＥＬＡＹ ＡＳＳＹ; |
6B6-81940-00-00 |
from US $119.51 |
||
|
31
|
31
90159-06008-00 Screw, With WasherＳＣＲＥＷ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90159-06008-00 |
from US $2.97 |
||
|
32
|
32
6D3-82116-00-00 Wire, Minus LeadＷＩＲＥ， ＭＩＮＵＳ ＬＥＡＤ; |
6D3-82116-00-00 |
from US $98.51 |
||
|
33
|
33
60E-82117-10-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
60E-82117-10-00 |
from US $86.35 |
||
|
34
|
34
66V-82119-00-00 Cover, Lead WireＣＯＶＥＲ， ＬＥＡＤ ＷＩＲＥ; |
66V-82119-00-00 |
from US $2.55 |
||
|
35
|
35
60E-82117-20-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
60E-82117-20-00 |
from US $77.92 |
||
|
36
|
36
66V-82119-00-00 Cover, Lead WireＣＯＶＥＲ， ＬＥＡＤ ＷＩＲＥ; |
66V-82119-00-00 |
from US $2.55 |
||
|
37
|
37
60E-81950-00-00 Relay AssySN2211 ＲＥＬＡＹ ＡＳＳＹ; |
60E-81950-00-00 |
from US $181.78 |
||
|
38
|
38
97780-60520-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60520-00 |
from US $2.02 |
||
|
39
|
39
60E-8259L-20-00 Wire Harness Assy 1ＷＩＲＥ ＨＡＲＮＥＳＳ ＡＳＳＹ １; |
60E-8259L-20-00 |
from US $1,093.87 |
||
| replacement | |||||
|
39
|
39
999-99037-68-00 Wire Harness AssyＷＩＲＥ ＨＡＲＮＥＳＳ ＡＳＳＹ １; |
999-99037-68-00 |
from US $1,093.87 |
||
|
40
|
40
67F-82151-30-00 Fuse (3A)．ＦＵＳＥ ; ３Ａ |
67F-82151-30-00 |
from US $2.50 |
||
|
41
|
41
67F-82151-00-00
Fuse (20A-Bl)
．ＦＵＳＥ ; ２０Ａ |
67F-82151-00-00 |
— | ||
| replacement | |||||
|
41
|
41
5JJ-82151-20-00 Fuse (20A-Bl)．ＦＵＳＥ ; ２０Ａ |
5JJ-82151-20-00 |
from US $3.74 |
||
|
42
|
42
60E-8259E-00-00 Switch AssyＳＷＩＴＣＨ ＡＳＳＹ; |
60E-8259E-00-00 |
from US $150.59 |
||
|
43
|
43
97780-60520-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60520-00 |
from US $2.02 |
||
