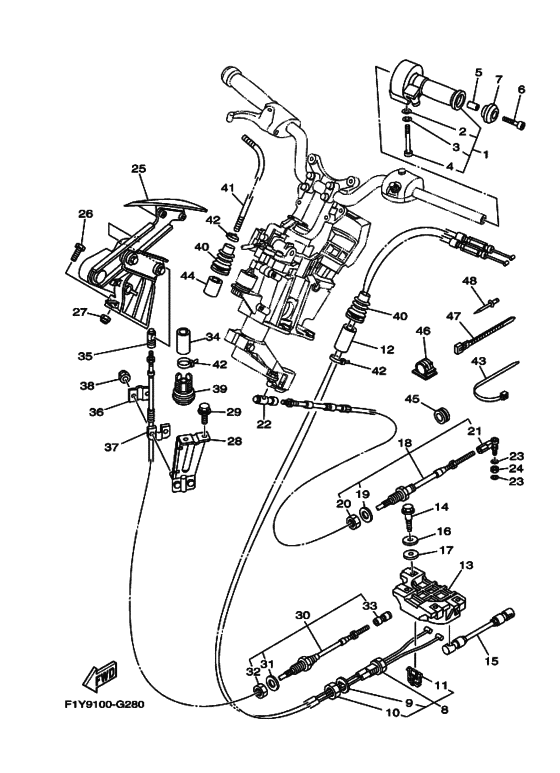

Control cable Diagram Yamaha FX1000
- Model code
- F1YA
- Year
- 2008
- Sales region
- Europe (020)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1W-6153A-00-00 Nozzle,control Assy |
F1W-6153A-00-00 |
from US $250.07 |
||
|
2
|
2
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
3
|
3
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
F1W-613C1-10-00 Screw |
F1W-613C1-10-00 |
from US $13.14 |
||
|
5
|
5
90387-05800-00 Collar |
90387-05800-00 |
from US $10.30 |
||
|
6
|
6
90110-05908-00 Bolt, Hexagon Socket Head |
90110-05908-00 |
from US $3.96 |
||
|
7
|
7
GP7-U155F-00-00 Grip, End |
GP7-U155F-00-00 |
from US $9.09 |
||
|
8
|
8
F1W-6153E-00-00 Cable,nozzle Control 3 |
F1W-6153E-00-00 |
from US $568.92 |
||
| replacement | |||||
|
8
|
8
F1W-6153E-01-00 Cable,nozzle Control 3 |
F1W-6153E-01-00 |
from US $568.92 |
||
|
9
|
9
F1W-61438-00-00 Packing C |
F1W-61438-00-00 |
from US $7.42 |
||
|
10
|
10
F1B-6151S-00-00 Nut |
F1B-6151S-00-00 |
from US $8.08 |
||
|
11
|
11
F1W-61557-00-00 Guide, Cable |
F1W-61557-00-00 |
from US $7.93 |
||
|
12
|
12
GJ1-U7578-01-00 Packing, Hose 2 |
GJ1-U7578-01-00 |
from US $9.35 |
||
|
13
|
13
F1W-6153J-00-00 Remocon,nozzle 2 |
F1W-6153J-00-00 |
from US $180.61 |
||
|
14
|
14
90109-06233-00 Bolt |
90109-06233-00 |
from US $12.12 |
||
|
15
|
15
F1W-6150A-00-00 Rod Assy |
F1W-6150A-00-00 |
from US $225.20 |
||
|
16
|
16
90201-099U3-00 Washer, Plate |
90201-099U3-00 |
from US $7.65 |
||
|
17
|
17
90202-08002-00 Washer, Plate |
90202-08002-00 |
from US $3.83 |
||
|
18
|
18
F1S-61481-00-00 Cable, Steering |
F1S-61481-00-00 |
from US $429.32 |
||
| replacements | |||||
|
18
|
18
F1S-61481-01-00
CABLE, STEERING
|
F1S-61481-01-00 |
— | ||
|
18
|
18
F1S-61481-02-00 CABLE, STEERING |
F1S-61481-02-00 |
from US $529.23 |
||
|
19
|
19
F1B-61438-00-00 Packing C |
F1B-61438-00-00 |
from US $2.69 |
||
|
20
|
20
F1B-6151S-00-00 Nut |
F1B-6151S-00-00 |
from US $8.08 |
||
|
21
|
21
F1B-61461-02-00 Stud, Joint Ball |
F1B-61461-02-00 |
from US $88.28 |
||
|
22
|
22
GK5-U146F-00-00
Shaft,joint Ball
|
GK5-U146F-00-00 |
— | ||
| replacement | |||||
|
22
|
22
GK5-6146F-00-00 Shaft, Joint Ball |
GK5-6146F-00-00 |
from US $50.43 |
||
|
23
|
23
90201-06906-00 Washer, Plate |
90201-06906-00 |
from US $3.26 |
||
|
24
|
24
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
25
|
25
F1X-6134A-10-00 Remocon. Lever Assy |
F1X-6134A-10-00 |
from US $496.10 |
||
|
26
|
26
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
27
|
27
90185-06014-00 Nut, Self-Locking |
90185-06014-00 |
from US $9.04 |
||
|
28
|
28
F1X-61467-01-00 Bracket,stopper Cable |
F1X-61467-01-00 |
from US $74.74 |
||
|
29
|
29
90119-08826-00 Bolt, With Washer |
90119-08826-00 |
from US $9.63 |
||
|
30
|
30
F1W-6149C-00-00 Cable,reverse |
F1W-6149C-00-00 |
from US $259.07 |
||
| replacements | |||||
|
30
|
30
F1W-6149C-01-00 Cable,reverse |
F1W-6149C-01-00 |
from US $358.73 |
||
|
30
|
30
F1W-6149C-02-00 CABLEREVERSE |
F1W-6149C-02-00 |
from US $358.73 |
||
|
31
|
31
F1B-61438-00-00 Packing C |
F1B-61438-00-00 |
from US $2.69 |
||
|
32
|
32
F1B-6151S-00-00 Nut |
F1B-6151S-00-00 |
from US $8.08 |
||
|
33
|
33
F1B-61460-00-00 Ball Joint Assy |
F1B-61460-00-00 |
from US $36.28 |
||
|
34
|
34
GJ1-U7578-01-00 Packing, Hose 2 |
GJ1-U7578-01-00 |
from US $9.35 |
||
|
35
|
35
F1B-61460-00-00 Ball Joint Assy |
F1B-61460-00-00 |
from US $36.28 |
||
|
36
|
36
GH1-61468-01-00 Stopper, Cable |
GH1-61468-01-00 |
from US $11.12 |
||
|
37
|
37
GU5-6146K-10-00 Holder, Stopper |
GU5-6146K-10-00 |
from US $79.86 |
||
|
38
|
38
9572R-06300-00 Nut, Nylon |
9572R-06300-00 |
from US $1.84 |
||
|
39
|
39
F1W-U1519-00-00 Grommet |
F1W-U1519-00-00 |
from US $9.36 |
||
|
40
|
40
F0D-6822E-00-00 Grommet |
F0D-6822E-00-00 |
from US $19.13 |
||
|
41
|
41
F0D-6773E-00-00 Tube, 2 |
F0D-6773E-00-00 |
from US $12.47 |
||
|
42
|
42
90601-200U1-00 Band |
90601-200U1-00 |
from US $2.27 |
||
|
43
|
43
90464-32801-00 Clamp |
90464-32801-00 |
from US $3.12 |
||
|
44
|
44
GJ1-U7578-11-00 Packing, Hose 2 |
GJ1-U7578-11-00 |
from US $1.26 |
||
| replacement | |||||
|
44
|
44
GJ1-U7578-12-00 Packing, Hose 2 |
GJ1-U7578-12-00 |
US $3.37 |
||
|
45
|
45
90480-38800-00 Grommet |
90480-38800-00 |
from US $8.73 |
||
|
46
|
46
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
46
|
46
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
47
|
47
90464-32801-00 Clamp |
90464-32801-00 |
from US $3.12 |
||
|
48
|
48
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
