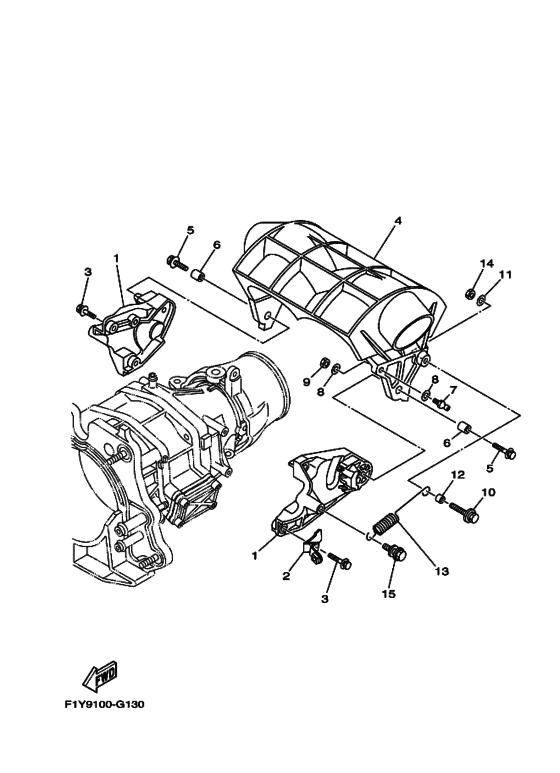

Jet unit 3 Diagram Yamaha FX1000
- Model code
- F1YA
- Year
- 2008
- Sales region
- Europe (020)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6S5-51341-00-94 Bracket 1 |
6S5-51341-00-94 |
from US $72.95 |
||
|
2
|
2
6B6-51342-00-00 Bracket 2 |
6B6-51342-00-00 |
from US $10.77 |
||
|
3
|
3
90119-069UD-00 Bolt, With Washer |
90119-069UD-00 |
from US $9.88 |
||
| replacements | |||||
|
3
|
3
901-19068-92-00 Bolt, With Washer |
901-19068-92-00 |
from US $7.65 |
||
|
3
|
3
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
4
|
4
6S5-R1314-00-00
Gate, Reverse
|
6S5-R1314-00-00 |
— | ||
| replacement | |||||
|
4
|
4
6S5-R1314-02-00 Gate, Reverse |
6S5-R1314-02-00 |
from US $54.65 |
||
|
5
|
5
90119-089UF-00 Bolt, With Washer |
90119-089UF-00 |
from US $3.54 |
||
| replacements | |||||
|
5
|
5
90119-08840-00 Bolt, With Washer |
90119-08840-00 |
from US $4.53 |
||
|
5
|
5
97075-08025-00 Bolt |
97075-08025-00 |
US $1.42 |
||
|
5
|
5
901-19088-41-00 Bolt, With Washer |
901-19088-41-00 |
from US $3.33 |
||
|
5
|
5
97D75-08025-00 Bolt, Hexagon Deep Recess |
97D75-08025-00 |
from US $1.42 |
||
|
6
|
6
90387-08M30-00 Collar |
90387-08M30-00 |
from US $9.10 |
||
|
7
|
7
EU0-U1461-02-00
Stud, Joint Ball
|
EU0-U1461-02-00 |
— | ||
| replacements | |||||
|
7
|
7
EU0-61461-02-00 Stud, Joint Ball |
EU0-61461-02-00 |
from US $18.20 |
||
|
7
|
7
EU0-U1461-10-00 SHAFT, JOINT BALL |
EU0-U1461-10-00 |
from US $27.20 |
||
|
8
|
8
90201-06801-00 Washer, Plate |
90201-06801-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
9
|
9
9538R-06600-00 Nut |
9538R-06600-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
10
|
10
90119-069UX-00 Bolt, With Washer |
90119-069UX-00 |
from US $8.86 |
||
|
11
|
11
90201-06801-00 Washer, Plate |
90201-06801-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
12
|
12
90387-06M30-00 Collar |
90387-06M30-00 |
from US $7.51 |
||
|
13
|
13
6S5-52358-00-00 Spring, Retainer |
6S5-52358-00-00 |
from US $5.17 |
||
| replacement | |||||
|
13
|
13
6S5-R2358-00-00 SPRING RETAINER |
6S5-R2358-00-00 |
from US $7.08 |
||
|
14
|
14
9538R-06600-00 Nut |
9538R-06600-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
15
|
15
6S5-45241-A0-00 Bolt, Flange W/washer |
6S5-45241-A0-00 |
US $11.32 |
||
