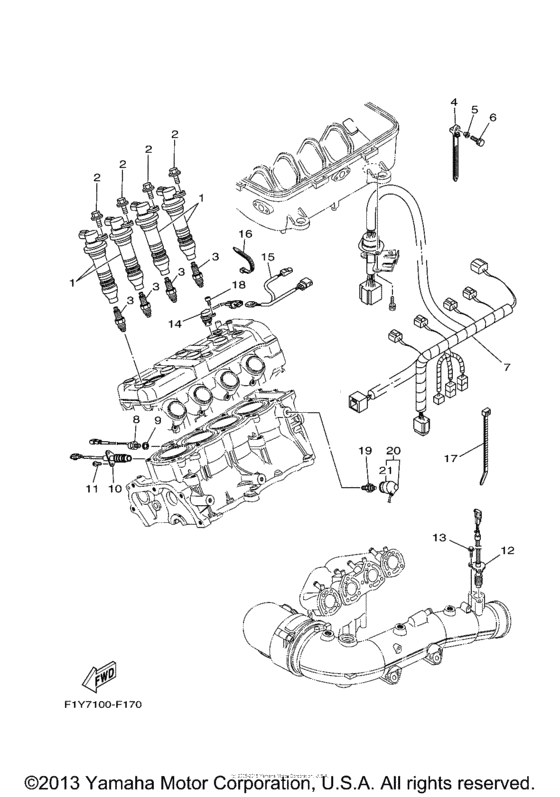

Electrical (2) Diagram Yamaha FX1000 WaveRunner FX
- Engine Capacity
- 1000
- Year
- 2007
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6B6-82310-00-00 Ignition Coil Assy |
6B6-82310-00-00 |
from US $214.15 |
||
| replacement | |||||
|
1
|
1
6D3-82310-01-00 Ignition Coil Assy |
6D3-82310-01-00 |
from US $214.15 |
||
|
2
|
2
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
3
|
3
94702-00409-00 Plug, Spark (Ngk Cr9Eb) |
94702-00409-00 |
US $16.50 |
||
| replacements | |||||
|
3
|
3
CR9-EB000-00-00 Plug, Spark (Ngk Cr9Eb) |
CR9-EB000-00-00 |
US $56.60 |
||
|
3
|
3
NGK-CR9EB-01-00
Spark Plug Cr9Eb
|
NGK-CR9EB-01-00 |
— | ||
|
4
|
4
90465-12M53-00 Clamp |
90465-12M53-00 |
from US $3.38 |
||
|
5
|
5
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.97 |
||
|
6
|
6
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
7
|
7
60E-8259M-30-00 Wire Harness Assy 2 |
60E-8259M-30-00 |
from US $518.38 |
||
|
8
|
8
60E-85790-01-00 Thermosensor Assy |
60E-85790-01-00 |
from US $156.12 |
||
| replacement | |||||
|
8
|
8
60E-85790-02-00 THERMOSENSOR ASSY |
60E-85790-02-00 |
from US $138.06 |
||
|
9
|
9
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
10
|
10
60E-82560-A1-00 Thermo Switch Assy |
60E-82560-A1-00 |
from US $61.48 |
||
|
11
|
11
97595-06416-00 Bolt, With Washer |
97595-06416-00 |
from US $2.55 |
||
| replacements | |||||
|
11
|
11
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
11
|
11
97E95-06416-00 Bolt, Hexagon W/w Deep Recess |
97E95-06416-00 |
from US $1.07 |
||
|
12
|
12
60E-82560-01-00 Thermo Switch Assy |
60E-82560-01-00 |
from US $54.73 |
||
|
13
|
13
97595-06416-00 Bolt, With Washer |
97595-06416-00 |
from US $2.55 |
||
| replacements | |||||
|
13
|
13
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
13
|
13
97E95-06416-00 Bolt, Hexagon W/w Deep Recess |
97E95-06416-00 |
from US $1.07 |
||
|
14
|
14
60E-85896-00-00 Sensor, Cam Position |
60E-85896-00-00 |
US $182.87 |
||
| replacements | |||||
|
14
|
14
60E-85896-01-00 Sensor, Cam Position |
60E-85896-01-00 |
from US $165.28 |
||
|
14
|
14
60E-85896-02-00 Sensor, Cam Position |
60E-85896-02-00 |
from US $174.08 |
||
|
15
|
15
60E-81325-10-00 Condenser 1 |
60E-81325-10-00 |
from US $44.07 |
||
|
16
|
16
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
17
|
17
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
17
|
17
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
17
|
17
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
18
|
18
91380-06016-00 Bolt |
91380-06016-00 |
from US $1.42 |
||
|
19
|
19
68V-82504-00-00 Oil Pressure Switch Assy |
68V-82504-00-00 |
from US $34.41 |
||
|
20
|
20
60E-81315-00-00 Lead Wire Assy |
60E-81315-00-00 |
from US $40.34 |
||
| replacement | |||||
|
20
|
20
60E-81315-01-00 LEAD WIRE ASSY |
60E-81315-01-00 |
from US $40.34 |
||
|
21
|
21
60E-82532-00-00 Cap |
60E-82532-00-00 |
from US $8.37 |
||
