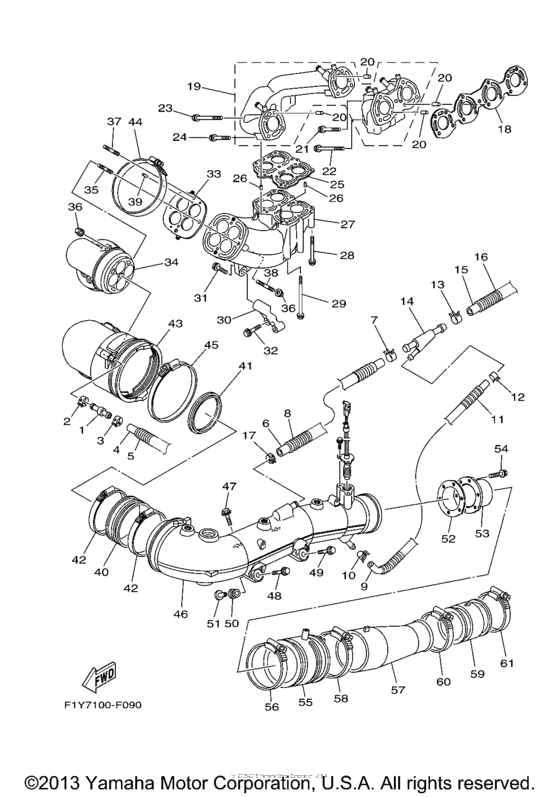

Exhaust (1) Diagram Yamaha FX1000 WaveRunner FX
- Engine Capacity
- 1000
- Year
- 2007
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60E-12594-00-00 Joint, Hose 4 |
60E-12594-00-00 |
from US $4.82 |
||
|
2
|
2
90467-120A0-00 Clip |
90467-120A0-00 |
from US $4.39 |
||
|
3
|
3
90467-130A0-00 Clip |
90467-130A0-00 |
from US $4.53 |
||
|
4
|
4
90445-14M06-00 Hose |
90445-14M06-00 |
US $36.52 |
||
| replacement | |||||
|
4
|
4
90445-14M03-00 Hose |
90445-14M03-00 |
US $36.52 |
||
|
5
|
5
90446-20M65-00 Hose (L445) |
90446-20M65-00 |
from US $7.93 |
||
|
6
|
6
904-45200-03-00 Hose (L430) |
904-45200-03-00 |
US $27 |
||
|
7
|
7
90467-200A0-00 Clip |
90467-200A0-00 |
from US $6.40 |
||
|
8
|
8
904-47220-08-00 Hose, With Spring (L380) |
904-47220-08-00 |
from US $7.65 |
||
|
9
|
9
60E-1244G-00-00 Hose, 4 |
60E-1244G-00-00 |
from US $13.74 |
||
|
10
|
10
90467-130A0-00 Clip |
90467-130A0-00 |
from US $4.53 |
||
|
11
|
11
90447-15001-00 Hose, With Spring |
90447-15001-00 |
from US $4.53 |
||
|
12
|
12
90467-150A0-00 Clip |
90467-150A0-00 |
from US $4.68 |
||
|
13
|
13
90467-200A0-00 Clip |
90467-200A0-00 |
from US $6.40 |
||
|
14
|
14
60E-12581-00-00 Joint, Hose 1 |
60E-12581-00-00 |
from US $12.61 |
||
|
15
|
15
904-45200-04-00 Hose (L720) |
904-45200-04-00 |
US $45.31 |
||
|
16
|
16
904-47220-12-00 Hose, With Spring (L610) |
904-47220-12-00 |
from US $10.63 |
||
|
17
|
17
90467-200A0-00 Clip |
90467-200A0-00 |
from US $6.40 |
||
|
18
|
18
60E-14613-01-00 Gasket, Exhaust Pipe |
60E-14613-01-00 |
from US $47.39 |
||
|
19
|
19
60E-14610-00-94 Exhaust Pipe Assy 1 |
60E-14610-00-94 |
US $1,135.73 |
||
|
20
|
20
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.72 |
||
|
21
|
21
90119-08029-00 Bolt, With Washer |
90119-08029-00 |
from US $7.23 |
||
|
22
|
22
90119-08034-00 Bolt, With Washer |
90119-08034-00 |
from US $5.67 |
||
|
23
|
23
90119-08029-00 Bolt, With Washer |
90119-08029-00 |
from US $7.23 |
||
|
24
|
24
90119-08M62-00 Bolt, With Washer |
90119-08M62-00 |
US $7.65 |
||
| replacement | |||||
|
24
|
24
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
from US $5.22 |
||
|
25
|
25
60E-14739-02-00 Gasket, Muffler Damper 1 |
60E-14739-02-00 |
from US $52.78 |
||
|
26
|
26
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
27
|
27
60E-14631-00-94 Pipe, Exhaust 3 |
60E-14631-00-94 |
from US $960.06 |
||
|
28
|
28
90119-08036-00 Bolt, With Washer |
90119-08036-00 |
from US $7.37 |
||
|
29
|
29
90119-08031-00 Bolt, With Washer |
90119-08031-00 |
from US $7.67 |
||
|
30
|
30
60E-14771-00-94 Stay, Muffler 1 |
60E-14771-00-94 |
from US $50.84 |
||
|
31
|
31
90119-10013-00 Bolt, With Washer |
90119-10013-00 |
from US $9.07 |
||
|
32
|
32
90119-08043-00 Bolt, With Washer |
90119-08043-00 |
from US $4.53 |
||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
60E-14749-02-00 Gasket, Muffler Damper 2 |
60E-14749-02-00 |
from US $46.15 |
||
|
34
|
34
60E-14712-02-94 Ring, Joint |
60E-14712-02-94 |
from US $508.77 |
||
|
35
|
35
90116-10016-00 Bolt, Stud |
90116-10016-00 |
from US $7.51 |
||
|
36
|
36
90179-10M35-00 Nut |
90179-10M35-00 |
from US $1.45 |
||
|
37
|
37
90116-10017-00 Bolt, Stud |
90116-10017-00 |
from US $8.36 |
||
|
38
|
38
90116-10018-00 Bolt, Stud |
90116-10018-00 |
from US $19.22 |
||
|
39
|
39
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
40
|
40
60E-14625-00-00 Joint, Exhaust 2 |
60E-14625-00-00 |
from US $34.85 |
||
|
41
|
41
60E-14642-00-00 Seal, Exhaust |
60E-14642-00-00 |
from US $50.01 |
||
|
42
|
42
90450-99M06-00 Hose Clamp Assy |
90450-99M06-00 |
from US $43.43 |
||
|
43
|
43
60E-14615-00-00 Joint, Exhaust 1 |
60E-14615-00-00 |
from US $112.46 |
||
|
44
|
44
90450-99M16-00 Hose Clamp Assy |
90450-99M16-00 |
from US $54.30 |
||
| replacement | |||||
|
44
|
44
90450-99M18-00 Hose Clamp Assy |
90450-99M18-00 |
from US $54.30 |
||
|
45
|
45
90450-99M18-00 Hose Clamp Assy |
90450-99M18-00 |
from US $54.30 |
||
|
46
|
46
60E-14721-10-94 Muffler 2 |
60E-14721-10-94 |
from US $922.68 |
||
|
47
|
47
90119-10013-00 Bolt, With Washer |
90119-10013-00 |
from US $9.07 |
||
|
48
|
48
90119-10011-00 Bolt, With Washer |
90119-10011-00 |
from US $5.40 |
||
|
49
|
49
90119-10017-00 Bolt, With Washer |
90119-10017-00 |
from US $9.07 |
||
|
50
|
50
90480-21M63-00 Grommet |
90480-21M63-00 |
from US $7.42 |
||
|
51
|
51
90387-11002-00 Collar |
90387-11002-00 |
from US $8.50 |
||
| replacement | |||||
|
51
|
51
903-87110-08-00 Collar |
903-87110-08-00 |
from US $8.50 |
||
|
52
|
52
60E-14623-00-00 Gasket, Exhaust Pipe |
60E-14623-00-00 |
from US $6.09 |
||
|
53
|
53
60E-14784-10-94 Pipe, Tail |
60E-14784-10-94 |
US $56.68 |
||
|
54
|
54
95023-06016-00 Bolt, Flange (Small Head) |
95023-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
54
|
54
95024-06016-00 Bolt, Flange |
95024-06016-00 |
from US $1.56 |
||
|
55
|
55
60E-1475E-00-00 Pipe 2 |
60E-1475E-00-00 |
from US $119.45 |
||
|
56
|
56
90450-99M06-00 Hose Clamp Assy |
90450-99M06-00 |
from US $43.43 |
||
|
57
|
57
60E-14752-10-94 Pipe, Outlet |
60E-14752-10-94 |
from US $245 |
||
|
58
|
58
90450-99M06-00 Hose Clamp Assy |
90450-99M06-00 |
from US $43.43 |
||
|
59
|
59
6B6-1475F-00-00 Pipe 3 |
6B6-1475F-00-00 |
from US $60.24 |
||
|
60
|
60
90460-90M11-00 Clamp, Hose |
90460-90M11-00 |
from US $33.72 |
||
|
61
|
61
90460-90M11-00 Clamp, Hose |
90460-90M11-00 |
from US $33.72 |
||
