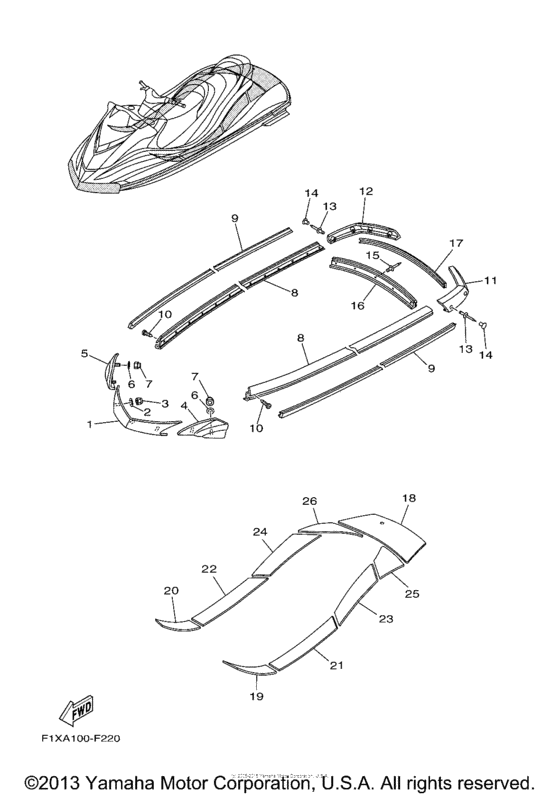

Gunwale mat Diagram Yamaha FX1000 WaveRunner FX
- Engine Capacity
- 1000
- Year
- 2007
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1S-U2501-10-00
Bow Gunwale Comp
|
F1S-U2501-10-00 |
— | ||
|
2
|
2
9299R-06200-00 Washer |
9299R-06200-00 |
from US $1.07 |
||
|
3
|
3
9572R-06300-00 Nut, Nylon |
9572R-06300-00 |
from US $1.84 |
||
|
4
|
4
F1S-U252E-10-00
Joint, Gunwale Lh
LH DARK GRAY SOLID D |
F1S-U252E-10-00 |
— | ||
|
5
|
5
F1S-U252F-10-00
Joint, Gunwale Rh
RH DARK GRAY SOLID D |
F1S-U252F-10-00 |
— | ||
|
6
|
6
9299R-06200-00 Washer |
9299R-06200-00 |
from US $1.07 |
||
|
7
|
7
9572R-06300-00 Nut, Nylon |
9572R-06300-00 |
from US $1.84 |
||
|
8
|
8
F1B-U2512-00-00 Gunwale, Side- |
F1B-U2512-00-00 |
from US $161.98 |
||
|
9
|
9
F1B-U2519-00-00 Inner,gunwale |
F1B-U2519-00-00 |
US $39.06 |
||
|
10
|
10
90169-059U1-00 Screw,tapping |
90169-059U1-00 |
from US $4.39 |
||
|
11
|
11
F1B-U251D-02-00
Gunwale, Stern 1
GRAY |
F1B-U251D-02-00 |
— | ||
|
12
|
12
F1B-U251E-02-00
Gunwale, Stern 2
GRAY |
F1B-U251E-02-00 |
— | ||
|
13
|
13
90267-489UT-00 Rivet, Blind |
90267-489UT-00 |
from US $1.35 |
||
|
14
|
14
F0D-U352E-10-00 Plug, Mushroom |
F0D-U352E-10-00 |
from US $1.15 |
||
|
15
|
15
90267-489US-00 Rivet, Blind |
90267-489US-00 |
from US $1.49 |
||
|
16
|
16
F1B-U252C-00-00 Cover, Gunwale 1SOLID GREY C |
F1B-U252C-00-00 |
US $110.74 |
||
|
17
|
17
F1B-U252D-01-00 Cover, Gunwale 2SOLID GREY C |
F1B-U252D-01-00 |
from US $19.24 |
||
|
18
|
18
F1S-U3581-11-00 Mat, Upper |
F1S-U3581-11-00 |
US $211,749.98 |
||
| replacement | |||||
|
18
|
18
F1S-U3581-10-00 Mat, Upper |
F1S-U3581-10-00 |
US $91.17 |
||
|
19
|
19
F1S-U351H-21-00 Mat, Step 1DARK GRAY |
F1S-U351H-21-00 |
from US $52.22 |
||
| replacement | |||||
|
19
|
19
F1S-U351H-20-00 Mat, Step 1DARK GRAY |
F1S-U351H-20-00 |
from US $16.18 |
||
|
20
|
20
F1S-U351J-21-00 Mat, Step 2DARK GRAY |
F1S-U351J-21-00 |
from US $52.22 |
||
| replacement | |||||
|
20
|
20
F1S-U351J-20-00 Mat, Step 2DARK GRAY |
F1S-U351J-20-00 |
from US $17.68 |
||
|
21
|
21
F1S-U351K-11-00 Mat, Step 3DARK GRAY |
F1S-U351K-11-00 |
from US $47.48 |
||
| replacement | |||||
|
21
|
21
F1S-U351K-10-00
Mat, Step 3
DARK GRAY |
F1S-U351K-10-00 |
— | ||
|
22
|
22
F1S-U351M-11-00 Mat, Step 4DARK GRAY |
F1S-U351M-11-00 |
from US $47.48 |
||
| replacement | |||||
|
22
|
22
F1S-U351M-10-00 Mat, Step 4DARK GRAY |
F1S-U351M-10-00 |
from US $21.24 |
||
|
23
|
23
F1S-U351N-11-00 Mat, Step 5DARK GRAY |
F1S-U351N-11-00 |
from US $164.41 |
||
| replacement | |||||
|
23
|
23
F1S-U351N-10-00 Mat, Step 5DARK GRAY |
F1S-U351N-10-00 |
from US $11.21 |
||
|
24
|
24
F1S-U351P-11-00 Mat, Step 6DARK GRAY |
F1S-U351P-11-00 |
from US $125.92 |
||
| replacement | |||||
|
24
|
24
F1S-U351P-10-00 Mat, Step 6DARK GRAY |
F1S-U351P-10-00 |
from US $19.01 |
||
|
25
|
25
F1S-U351R-11-00 Mat, Step 7DARK GRAY |
F1S-U351R-11-00 |
from US $87.63 |
||
| replacement | |||||
|
25
|
25
F1S-U351R-10-00 Mat, Step 7DARK GRAY |
F1S-U351R-10-00 |
from US $28.99 |
||
|
26
|
26
F1S-U351S-11-00 Mat, Step 8DARK GRAY |
F1S-U351S-11-00 |
from US $164.41 |
||
| replacement | |||||
|
26
|
26
F1S-U351S-10-00 Mat, Step 8DARK GRAY |
F1S-U351S-10-00 |
from US $28.99 |
||
