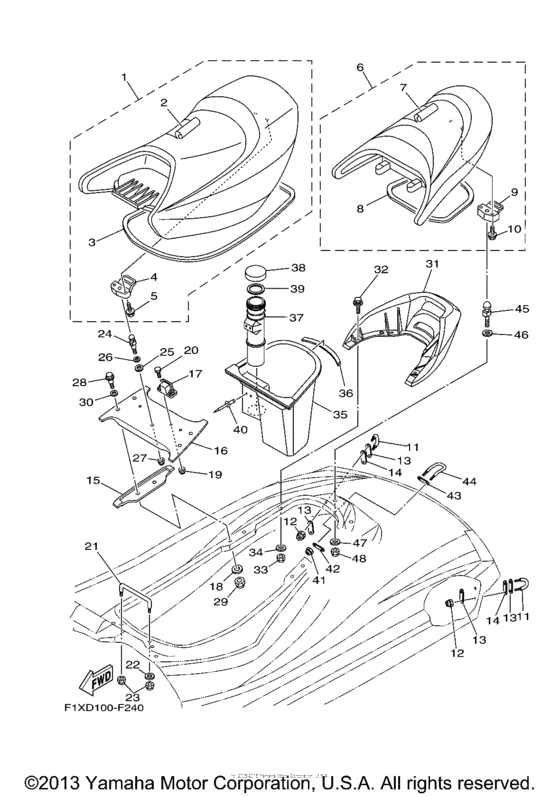

Seat under locker Diagram Yamaha FX1000 WaveRunner FX
- Engine Capacity
- 1000
- Year
- 2007
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1S-U371A-90-00 Double Seat Assy |
F1S-U371A-90-00 |
US $744.68 |
||
|
2
|
2
F1S-U371B-90-00 Cover, Seat 1SILVER |
F1S-U371B-90-00 |
US $239.38 |
||
|
3
|
3
F1B-U2664-00-00 Packing |
F1B-U2664-00-00 |
from US $92.43 |
||
|
4
|
4
F1B-U3850-01-00
Seat Lock Assy
|
F1B-U3850-01-00 |
— | ||
| replacement | |||||
|
4
|
4
F1B-U3850-02-00 Seat Lock Assy |
F1B-U3850-02-00 |
from US $13.14 |
||
|
5
|
5
901-19069-UP-00
Bolt, With Washer
|
901-19069-UP-00 |
— | ||
| replacements | |||||
|
5
|
5
90119-06914-00 Bolt, With Washer |
90119-06914-00 |
from US $3.26 |
||
|
5
|
5
90119-06808-00 Bolt, With Washer |
90119-06808-00 |
from US $4.50 |
||
|
6
|
6
F1B-U372A-91-00
Single Seat Assy
|
F1B-U372A-91-00 |
— | ||
|
7
|
7
F1B-U372B-90-00 Cover, Seat |
F1B-U372B-90-00 |
US $169.20 |
||
|
8
|
8
F1B-U266D-00-00
Packing 5
|
F1B-U266D-00-00 |
— | ||
|
9
|
9
F1B-U3850-01-00
Seat Lock Assy
|
F1B-U3850-01-00 |
— | ||
| replacement | |||||
|
9
|
9
F1B-U3850-02-00 Seat Lock Assy |
F1B-U3850-02-00 |
from US $13.14 |
||
|
10
|
10
901-19069-UP-00
Bolt, With Washer
|
901-19069-UP-00 |
— | ||
| replacements | |||||
|
10
|
10
90119-06914-00 Bolt, With Washer |
90119-06914-00 |
from US $3.26 |
||
|
10
|
10
90119-06808-00 Bolt, With Washer |
90119-06808-00 |
from US $4.50 |
||
|
11
|
11
GP7-61628-00-00 Stern Eye |
GP7-61628-00-00 |
from US $34.85 |
||
| replacement | |||||
|
11
|
11
F1K-61628-00-00 Stern Eye |
F1K-61628-00-00 |
from US $34.85 |
||
|
12
|
12
9572R-08300-00 Nut, Flange |
9572R-08300-00 |
from US $4.11 |
||
| replacement | |||||
|
12
|
12
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
13
|
13
GP7-U4953-10-00 Plate A |
GP7-U4953-10-00 |
from US $10.30 |
||
|
14
|
14
F1B-U1653-01-00 Packing |
F1B-U1653-01-00 |
from US $2.75 |
||
| replacements | |||||
|
14
|
14
F1B-U1653-02-00 Packing |
F1B-U1653-02-00 |
from US $2.75 |
||
|
14
|
14
F1B-U1653-03-00 Packing |
F1B-U1653-03-00 |
US $5.62 |
||
|
15
|
15
F1X-U1653-00-00 Packing |
F1X-U1653-00-00 |
US $5.76 |
||
|
16
|
16
F1X-U8952-01-00 Beam, Deck 1 |
F1X-U8952-01-00 |
from US $72.95 |
||
| replacements | |||||
|
16
|
16
F1B-U8952-01-00 Beam, Deck 1 |
F1B-U8952-01-00 |
from US $251.26 |
||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
GU2-6378D-02-00 Stay,seat 2 |
GU2-6378D-02-00 |
from US $19.41 |
||
|
18
|
18
9299R-08200-00 Washer |
9299R-08200-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
19
|
19
9572R-06300-00 Nut, Nylon |
9572R-06300-00 |
from US $1.84 |
||
|
20
|
20
90101-069U0-00 Bolt |
90101-069U0-00 |
from US $1.35 |
||
|
21
|
21
F0X-6378C-00-00 Stay, Seat 1 |
F0X-6378C-00-00 |
from US $35.78 |
||
|
22
|
22
90201-099U3-00 Washer, Plate |
90201-099U3-00 |
from US $7.65 |
||
|
23
|
23
9572R-08300-00 Nut, Flange |
9572R-08300-00 |
from US $4.11 |
||
| replacement | |||||
|
23
|
23
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
24
|
24
F1B-U3774-00-00 Pin |
F1B-U3774-00-00 |
from US $28.33 |
||
|
25
|
25
F0X-6375E-00-00 Packing 1 |
F0X-6375E-00-00 |
from US $4.68 |
||
|
26
|
26
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
27
|
27
957-2R103-00-00 Nut, Nylon |
957-2R103-00-00 |
from US $4.25 |
||
|
28
|
28
F1B-U2624-00-00 Bolt |
F1B-U2624-00-00 |
from US $8.99 |
||
|
29
|
29
9572R-08300-00 Nut, Flange |
9572R-08300-00 |
from US $4.11 |
||
| replacement | |||||
|
29
|
29
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
30
|
30
9299R-10200-00 Washer |
9299R-10200-00 |
from US $1.07 |
||
|
31
|
31
F1B-U271B-00-00 Grip, Hand |
F1B-U271B-00-00 |
from US $238.11 |
||
|
32
|
32
90119-08942-00 Bolt, With Washer |
90119-08942-00 |
from US $3.38 |
||
| replacements | |||||
|
32
|
32
90119-089UL-00 Bolt, With Washer |
90119-089UL-00 |
from US $6.94 |
||
|
32
|
32
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
|
33
|
33
9572R-08300-00 Nut, Flange |
9572R-08300-00 |
from US $4.11 |
||
| replacement | |||||
|
33
|
33
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
34
|
34
9299R-08200-00 Washer |
9299R-08200-00 |
from US $1.07 |
||
| replacement | |||||
|
34
|
34
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
35
|
35
F1B-U4742-01-00
Locker, Under 2
|
F1B-U4742-01-00 |
— | ||
|
36
|
36
F0X-U266E-01-00 Packing,6 |
F0X-U266E-01-00 |
from US $20.23 |
||
|
37
|
37
F0X-U5983-01-00 Box, Fire Extinguisher |
F0X-U5983-01-00 |
from US $80.20 |
||
|
38
|
38
EW2-U5912-01-00 Cap, Case |
EW2-U5912-01-00 |
from US $6.25 |
||
|
39
|
39
EW2-U5913-01-00 Packing, Case |
EW2-U5913-01-00 |
from US $1.49 |
||
|
40
|
40
90267-489UP-00 Rivet 1 |
90267-489UP-00 |
from US $2.75 |
||
| replacement | |||||
|
40
|
40
F3J-U516R-00-00 Rivet 1 |
F3J-U516R-00-00 |
from US $5.24 |
||
|
41
|
41
9572R-08300-00 Nut, Flange |
9572R-08300-00 |
from US $4.11 |
||
| replacement | |||||
|
41
|
41
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
42
|
42
GP7-U4953-10-00 Plate A |
GP7-U4953-10-00 |
from US $10.30 |
||
|
43
|
43
GP7-U4953-10-00 Plate A |
GP7-U4953-10-00 |
from US $10.30 |
||
|
44
|
44
F1B-U1629-00-00 Ski Tows |
F1B-U1629-00-00 |
from US $35.42 |
||
|
45
|
45
GH1-U3774-00-00 Pin |
GH1-U3774-00-00 |
from US $27.32 |
||
|
46
|
46
90201-109U6-00 Washer, Plate |
90201-109U6-00 |
from US $2.55 |
||
|
47
|
47
9299R-10200-00 Washer |
9299R-10200-00 |
from US $1.07 |
||
|
48
|
48
957-2R103-00-00 Nut, Nylon |
957-2R103-00-00 |
from US $4.25 |
||
