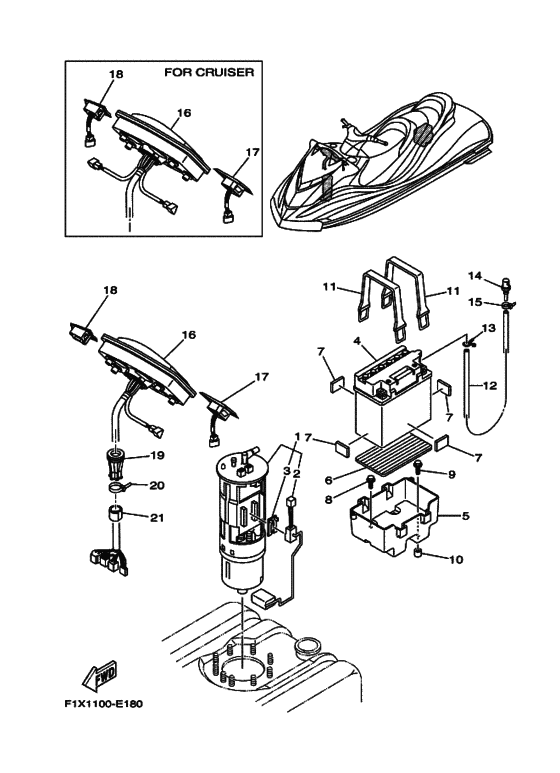

Electrical 3 Diagram Yamaha FX1100 Wave Runner FX Cruiser HO
- Model code
- F1X2
- Engine Capacity
- 1100
- Year
- 2006
- Sales region
- Europe (010)
- Colour
- Black Solid A (SSA; 1000)
- Color Variant
- B
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60E-13907-01-00
Fuel Pump
|
60E-13907-01-00 |
— | ||
| replacements | |||||
|
1
|
1
60E-13907-03-00
Fuel Pump
|
60E-13907-03-00 |
— | ||
|
1
|
1
60E-13907-08-00
FUEL PUMP COMP.
|
60E-13907-08-00 |
— | ||
|
1
|
1
60E-13907-0Y-00 Fuel pump |
60E-13907-0Y-00 |
from US $805.57 |
||
|
2
|
2
60E-682E0-00-00 Fuel Sender Assy |
60E-682E0-00-00 |
from US $258.56 |
||
|
3
|
3
60E-82556-00-00 Damper, Stopper |
60E-82556-00-00 |
from US $10.02 |
||
|
4
|
4
EU0-82110-09-00
Yb16Clb Yuasa Battery
YUASA |
EU0-82110-09-00 |
— | ||
| replacements | |||||
|
4
|
4
BTY-CB16C-LB-00
Battery cb16cl-b
YUASA |
BTY-CB16C-LB-00 |
— | ||
|
4
|
4
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
YUASA |
YB1-6CLB0-00-00 |
— | ||
|
5
|
5
GP7-U8211-00-00 Case, Battery |
GP7-U8211-00-00 |
US $13.93 |
||
|
6
|
6
F1S-U8221-00-00 Pad, Battery |
F1S-U8221-00-00 |
from US $6.46 |
||
|
7
|
7
EU0-U8221-30-00 Pad, Battery 2 |
EU0-U8221-30-00 |
from US $1.49 |
||
|
8
|
8
90119-069US-00 Bolt, With Washer |
90119-069US-00 |
from US $2.09 |
||
| replacement | |||||
|
8
|
8
90119-06920-00 Bolt, With Washer |
90119-06920-00 |
from US $2.09 |
||
|
9
|
9
90119-06832-00 Nut, Crown |
90119-06832-00 |
from US $4.23 |
||
| replacements | |||||
|
9
|
9
90176-06005-00 Nut, Crown |
90176-06005-00 |
from US $3.02 |
||
|
9
|
9
90119-06820-00 Bolt, With Washer |
90119-06820-00 |
from US $4.23 |
||
|
10
|
10
F1B-6821G-01-00 Plate, Battery |
F1B-6821G-01-00 |
from US $4.34 |
||
|
11
|
11
EU0-U821D-00-00 Band,battery 1 |
EU0-U821D-00-00 |
from US $11.97 |
||
|
12
|
12
F0D-U785G-10-00 Hose, Air Vent |
F0D-U785G-10-00 |
from US $7.83 |
||
|
13
|
13
90467-089U1-00 Clip |
90467-089U1-00 |
from US $3.55 |
||
|
14
|
14
GJ3-6215F-00-00 Nipple |
GJ3-6215F-00-00 |
from US $5.83 |
||
|
15
|
15
90465-11829-00 Clamp |
90465-11829-00 |
US $1.28 |
||
| replacements | |||||
|
15
|
15
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $0.98 |
||
|
15
|
15
904-65100-98-00
Clamp
|
904-65100-98-00 |
— | ||
|
16
|
16
F1X-6820A-00-00
Meter Assy
FOR CRUISER |
F1X-6820A-00-00 |
— | ||
| replacement | |||||
|
16
|
16
F1X-6820A-03-00 Meter AssyFOR CRUISER |
F1X-6820A-03-00 |
from US $1,341.91 |
||
|
16
|
16
F1X-6820A-10-00
Meter Assy
|
F1X-6820A-10-00 |
— | ||
| replacement | |||||
|
16
|
16
F1X-6820A-13-00 Meter Assy |
F1X-6820A-13-00 |
US $1,506.51 |
||
|
17
|
17
F1X-68090-00-00 Switch Assy |
F1X-68090-00-00 |
from US $208.89 |
||
|
18
|
18
F1X-68090-10-00 Switch AssyFOR CRUISER |
F1X-68090-10-00 |
from US $208.89 |
||
|
18
|
18
F1Y-68322-00-00 Panel |
F1Y-68322-00-00 |
from US $75.82 |
||
|
19
|
19
F1X-U822E-00-00 Grommet |
F1X-U822E-00-00 |
from US $6.88 |
||
| replacement | |||||
|
19
|
19
F3J-U822E-00-00 Grommet |
F3J-U822E-00-00 |
from US $6.88 |
||
|
20
|
20
90601-200U1-00 Band |
90601-200U1-00 |
from US $1.80 |
||
|
21
|
21
GJ1-U7578-11-00 Packing, Hose 2 |
GJ1-U7578-11-00 |
from US $1.26 |
||
