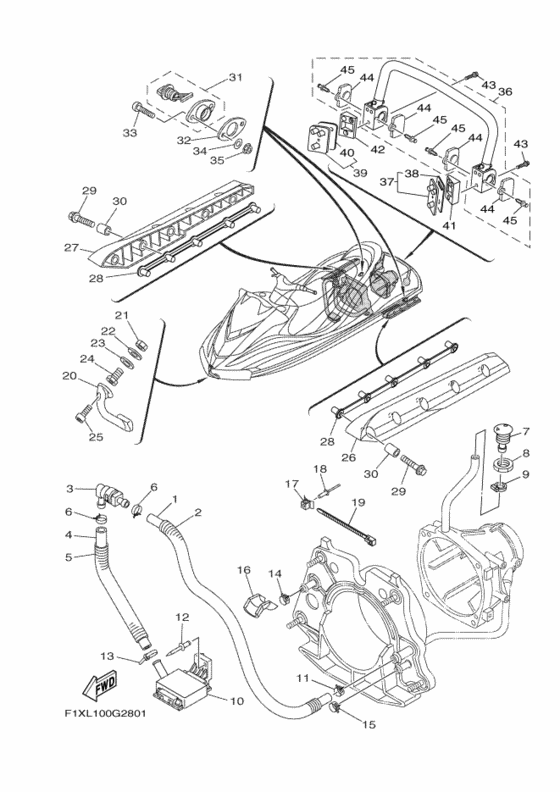

Hull & deck Diagram Yamaha FX1100
- Model code
- F1XP
- Engine Capacity
- 1100
- Year
- 2008
- Sales region
- Europe (010)
- Colour
- Black Solid A (SSA; 1000)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90445-20804-00 Hose (L860) |
90445-20804-00 |
from US $11.75 |
||
|
2
|
2
90446-27M73-00 Hose (L700) |
90446-27M73-00 |
from US $12.44 |
||
|
3
|
3
68N-5112T-00-00 Joint, Hose |
68N-5112T-00-00 |
from US $27.83 |
||
|
4
|
4
90445-20800-00 Hose (L500) |
90445-20800-00 |
from US $11.75 |
||
|
5
|
5
90446-27M55-00 Tube (L400) |
90446-27M55-00 |
from US $6.86 |
||
|
6
|
6
90467-18804-00 Clip |
90467-18804-00 |
from US $5.04 |
||
|
7
|
7
FN8-6269B-00-00 Spout |
FN8-6269B-00-00 |
from US $13.02 |
||
|
8
|
8
EU0-61652-00-00 Nut |
EU0-61652-00-00 |
from US $5.83 |
||
|
9
|
9
90601-118UF-00 Band, Hose 1818 |
90601-118UF-00 |
from US $4.94 |
||
|
10
|
10
F1B-U761D-02-00 Strainer, Bilge |
F1B-U761D-02-00 |
from US $11.82 |
||
|
11
|
11
90467-21800-00 Clip |
90467-21800-00 |
from US $5.04 |
||
|
12
|
12
902-67489-U8-00
Rivet, Blind
|
902-67489-U8-00 |
— | ||
| replacement | |||||
|
12
|
12
90267-48932-00 Rivet, Blind (Ad610Abs/llm10P) |
90267-48932-00 |
from US $1.35 |
||
|
13
|
13
90601-200U1-00 Band |
90601-200U1-00 |
from US $1.80 |
||
|
14
|
14
90467-21800-00 Clip |
90467-21800-00 |
from US $5.04 |
||
|
15
|
15
90467-200A0-00 Clip |
90467-200A0-00 |
from US $5.84 |
||
|
16
|
16
F1S-U828H-01-00 Trim, 1 |
F1S-U828H-01-00 |
from US $7.31 |
||
|
17
|
17
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.65 |
||
| replacement | |||||
|
17
|
17
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.65 |
||
|
18
|
18
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.50 |
||
|
19
|
19
90464-32801-00 Clamp |
90464-32801-00 |
from US $2.84 |
||
|
20
|
20
F1K-61624-00-00 Bow Eye 1 |
F1K-61624-00-00 |
from US $44.85 |
||
|
21
|
21
99780-12600-00 Nut.hex.(Coars) |
99780-12600-00 |
from US $3.38 |
||
|
22
|
22
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.72 |
||
|
23
|
23
F0X-61637-00-00 Washer |
F0X-61637-00-00 |
from US $1.26 |
||
|
24
|
24
F0X-61652-00-00 Nut (Bolt/nut) |
F0X-61652-00-00 |
from US $6.62 |
||
| replacement | |||||
|
24
|
24
F0X-61652-01-00 NUT |
F0X-61652-01-00 |
from US $11.54 |
||
|
25
|
25
90110-06040-00 Bolt, Hexagon Socket |
90110-06040-00 |
from US $2.97 |
||
| replacement | |||||
|
25
|
25
901-10062-80-00 Bolt, Hexagon Socket Head |
901-10062-80-00 |
from US $2.97 |
||
|
26
|
26
F1S-U883N-01-00 Stabilizer LhLH; BLACK |
F1S-U883N-01-00 |
from US $40.58 |
||
|
27
|
27
F1S-U883P-01-00 Stabilizer RhRH; BLACK |
F1S-U883P-01-00 |
from US $40.58 |
||
|
28
|
28
F1X-U883T-00-00 Bracket,stabilizer |
F1X-U883T-00-00 |
from US $44.15 |
||
| replacement | |||||
|
28
|
28
F1X-U883T-01-00 Bracket,stabilizer |
F1X-U883T-01-00 |
from US $44.15 |
||
|
29
|
29
90105-08860-00 Bolt,washer Based |
90105-08860-00 |
from US $3.71 |
||
| replacement | |||||
|
29
|
29
901-05088-F9-00 Bolt, Flange |
901-05088-F9-00 |
from US $3.67 |
||
|
30
|
30
F1K-U8169-00-00 Spacer |
F1K-U8169-00-00 |
from US $17.10 |
||
| replacement | |||||
|
30
|
30
F2N-U8169-00-00 Spacer |
F2N-U8169-00-00 |
from US $17.10 |
||
|
31
|
31
F1S-U2280-00-00 Drain Plug Assy |
F1S-U2280-00-00 |
from US $10.62 |
||
| replacement | |||||
|
31
|
31
F1S-U2280-02-00 Drain Plug Assy |
F1S-U2280-02-00 |
from US $10.62 |
||
|
32
|
32
F1S-U2285-00-00 Packing, Drain |
F1S-U2285-00-00 |
from US $1.39 |
||
|
33
|
33
9788R-05025-00 Screw, Pan Head |
9788R-05025-00 |
from US $1.43 |
||
|
34
|
34
9299R-05200-00 Washer |
9299R-05200-00 |
from US $1.50 |
||
|
35
|
35
9572R-05300-00 Nut, Flange |
9572R-05300-00 |
from US $1.50 |
||
|
36
|
36
F1X-U278A-10-00 Ladder, Step Assy |
F1X-U278A-10-00 |
from US $325.08 |
||
|
37
|
37
F1X-U278F-01-00
Bracket, Ladder Lh
LH |
F1X-U278F-01-00 |
— | ||
|
38
|
38
F1X-U278H-10-00 Packing, Brkt. 1 |
F1X-U278H-10-00 |
from US $9.41 |
||
|
39
|
39
F1X-U278G-01-00
Bracket, Ladder Rh
RH |
F1X-U278G-01-00 |
— | ||
|
40
|
40
F1X-U278H-10-00 Packing, Brkt. 1 |
F1X-U278H-10-00 |
from US $9.41 |
||
|
41
|
41
F1X-U278K-00-00 Bracket 1 |
F1X-U278K-00-00 |
from US $9.41 |
||
|
42
|
42
F1X-U278L-00-00 Bracket 2 |
F1X-U278L-00-00 |
US $9.41 |
||
|
43
|
43
90119-08844-00 Bolt, With Washer |
90119-08844-00 |
from US $4.66 |
||
|
44
|
44
F2C-U377H-00-00 Inner, Cover Side 1 |
F2C-U377H-00-00 |
from US $3.92 |
||
|
45
|
45
F2C-U1314-00-00 Pin |
F2C-U1314-00-00 |
from US $2.69 |
||
