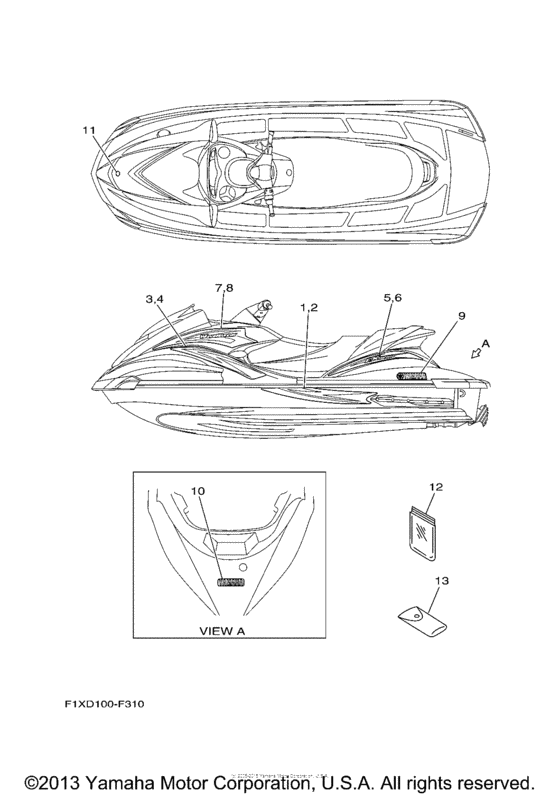

Graphics Diagram Yamaha FX1100 Wave Runner FX HO
- Engine Capacity
- 1100
- Year
- 2007
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1X-U417B-70-00 Graphic 1 (Lh)LH UR FOR YELLOW |
F1X-U417B-70-00 |
from US $35.86 |
||
|
1
|
1
F1X-U417B-80-00 Graphic 1 (Lh)LH UR FOR RED |
F1X-U417B-80-00 |
from US $35.86 |
||
|
2
|
2
F1X-U417C-80-00 Graphic 2 (Rh)RH UR FOR RED |
F1X-U417C-80-00 |
from US $39.15 |
||
|
2
|
2
F1X-U417C-70-00 Graphic 2 (Rh)RH UR FOR YELLOW |
F1X-U417C-70-00 |
US $39.55 |
||
|
3
|
3
F1X-U417F-80-00 Graphic 5 (Lh)LH UR FOR RED |
F1X-U417F-80-00 |
US $157.77 |
||
|
3
|
3
F1X-U417F-70-00 Graphic 5 (Lh)LH UR FOR YELLOW |
F1X-U417F-70-00 |
from US $43.04 |
||
|
4
|
4
F1X-U417G-70-00 Graphic 6 (Rh)RH UR FOR YELLOW |
F1X-U417G-70-00 |
from US $43.04 |
||
|
4
|
4
F1X-U417G-80-00 Graphic 6 (Rh)RH UR FOR RED |
F1X-U417G-80-00 |
from US $43.04 |
||
|
5
|
5
F1X-U417H-70-00 Graphic 7 (Lh)LH UR FOR YELLOW |
F1X-U417H-70-00 |
from US $40.36 |
||
|
5
|
5
F1X-U417H-80-00 Graphic 7 (Lh)LH UR FOR RED |
F1X-U417H-80-00 |
from US $40.45 |
||
|
6
|
6
F1X-U417J-80-00 Graphic 8 (Rh)RH UR FOR RED |
F1X-U417J-80-00 |
from US $40.45 |
||
|
6
|
6
F1X-U417J-70-00 Graphic 8 (Rh)RH UR FOR YELLOW |
F1X-U417J-70-00 |
from US $39.58 |
||
|
7
|
7
F1X-U417K-80-00 Graphic 9 (Lh)LH UR FOR RED |
F1X-U417K-80-00 |
from US $32.26 |
||
|
7
|
7
F1X-U417K-70-00 Graphic 9 (Lh)LH UR FOR YELLOW |
F1X-U417K-70-00 |
from US $32.26 |
||
|
8
|
8
F1X-U417L-70-00 Graphic B (Rh)UR FOR YELLOW |
F1X-U417L-70-00 |
from US $32.26 |
||
|
8
|
8
F1X-U417L-80-00 Graphic B (Rh)UR FOR RED |
F1X-U417L-80-00 |
from US $32.26 |
||
|
9
|
9
F1X-U411C-10-00 Emblem, YamahaUR FOR RED |
F1X-U411C-10-00 |
from US $11.40 |
||
|
9
|
9
F1G-U411C-30-00 Emblem, YamahaUR FOR YELLOW |
F1G-U411C-30-00 |
US $16.47 |
||
|
10
|
10
F1G-U4114-30-00 Mark, Yamaha AUR FOR YELLOW |
F1G-U4114-30-00 |
US $20.11 |
||
|
10
|
10
F1X-U411C-20-00 Emblem, YamahaUR FOR RED |
F1X-U411C-20-00 |
from US $10.81 |
||
|
11
|
11
F1K-U411H-00-00 Emblem, Tuning Fork |
F1K-U411H-00-00 |
from US $23.48 |
||
|
12
|
12
F1B-65986-00-00
Tool Set
|
F1B-65986-00-00 |
— | ||
| replacement | |||||
|
12
|
12
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
13
|
13
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
13
|
13
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
13
|
13
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
US $13.55 |
||
