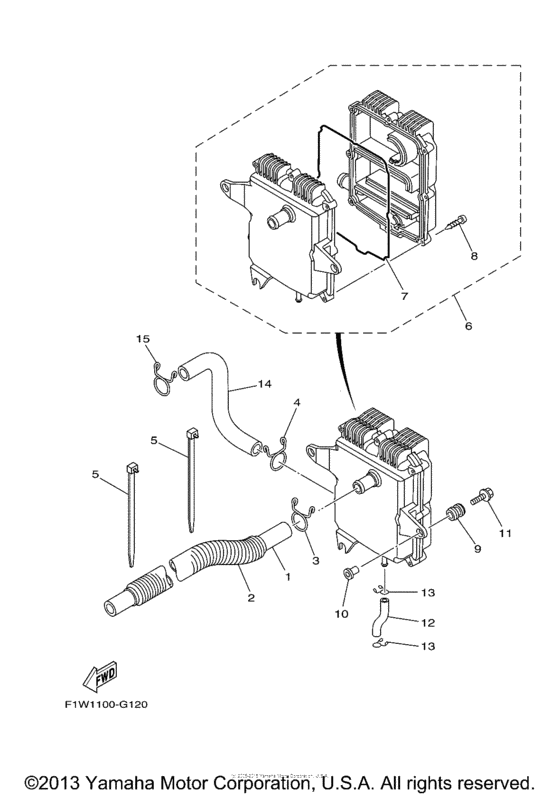

Breather oil Diagram Yamaha FX1800 Wave Runner FX Cruiser SHO
- Engine Capacity
- 1800
- Year
- 2008
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6S5-11166-00-00 Pipe, Breather 1 |
6S5-11166-00-00 |
from US $47.48 |
||
| replacement | |||||
|
1
|
1
6AP-11166-00-00 Pipe, Breather 1 |
6AP-11166-00-00 |
from US $60.65 |
||
|
2
|
2
90446-30MF1-00 Hose (L600) |
90446-30MF1-00 |
from US $8.50 |
||
| replacement | |||||
|
2
|
2
904-4630M-E9-00 Hose |
904-4630M-E9-00 |
from US $8.50 |
||
|
3
|
3
90467-240A2-00 Clip |
90467-240A2-00 |
from US $3.68 |
||
|
4
|
4
90467-240A2-00 Clip |
90467-240A2-00 |
from US $3.68 |
||
|
5
|
5
90465-14M66-00 Clamp |
90465-14M66-00 |
from US $3.54 |
||
|
6
|
6
6S5-11160-00-00 Breather Assy |
6S5-11160-00-00 |
from US $90.94 |
||
| replacement | |||||
|
6
|
6
6BH-11160-00-00 Breather Assy |
6BH-11160-00-00 |
from US $96.44 |
||
|
7
|
7
93212-02001-00 O-Ring |
93212-02001-00 |
from US $13.52 |
||
|
8
|
8
97780-60530-00 Screw, Tapping |
97780-60530-00 |
from US $2.83 |
||
|
9
|
9
61N-82317-00-00 Damper, Ignition Coil |
61N-82317-00-00 |
US $4.68 |
||
|
10
|
10
90387-06119-00 Collar |
90387-06119-00 |
from US $2.36 |
||
|
11
|
11
95824-06030-00 Bolt, Flange |
95824-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
95814-06030-00 Bolt, Flange |
95814-06030-00 |
from US $1.36 |
||
|
12
|
12
6S5-11125-00-00 Pipe, Breather 4 |
6S5-11125-00-00 |
from US $2.98 |
||
|
13
|
13
90467-11019-00 Clip |
90467-11019-00 |
US $1.70 |
||
| replacements | |||||
|
13
|
13
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
13
|
13
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
14
|
14
6S5-11167-00-00 Pipe, Breather 2 |
6S5-11167-00-00 |
from US $31.57 |
||
|
15
|
15
90467-240A2-00 Clip |
90467-240A2-00 |
from US $3.68 |
||
