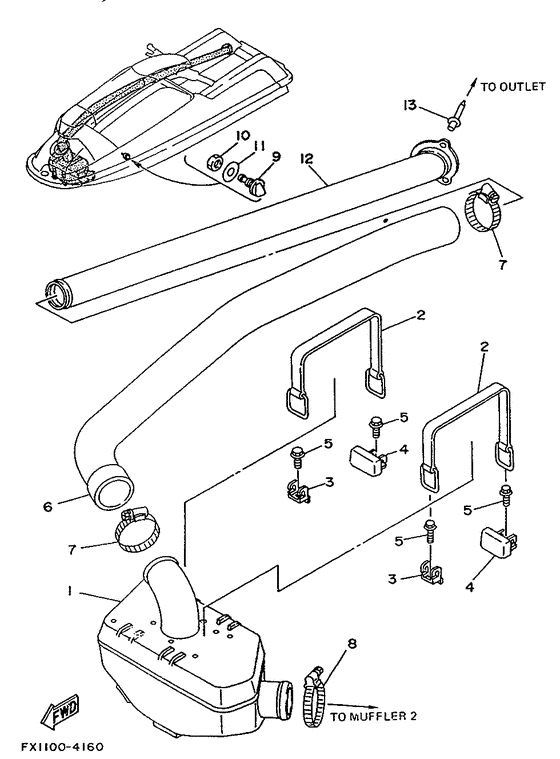

Exhaust 2 Diagram Yamaha FX700
- Model code
- FX16
- Year
- 1996
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
FX1-67550-00-00 Water Lock |
FX1-67550-00-00 |
US $1,287.13 |
||
|
02
|
02
EU0-68218-04-00 Belt, Battery |
EU0-68218-04-00 |
from US $14.73 |
||
|
03
|
03
EW2-65772-00-00 Hook A |
EW2-65772-00-00 |
from US $3.38 |
||
|
04
|
04
FX1-65760-00-00 Hook B Assy |
FX1-65760-00-00 |
from US $22.56 |
||
|
05
|
05
90105-06900-00 Bolt, Washer Based |
90105-06900-00 |
from US $2.27 |
||
|
06
|
06
FX1-67555-00-00
Hose
|
FX1-67555-00-00 |
— | ||
|
07
|
07
90601-16274-00 Band, Hose |
90601-16274-00 |
from US $14.03 |
||
|
08
|
08
90601-16875-00 Band, Hose |
90601-16875-00 |
from US $14.73 |
||
|
09
|
09
GH7-6753B-00-00 Pilot,water |
GH7-6753B-00-00 |
from US $22.95 |
||
|
10
|
10
95380-14700-00 Nut |
95380-14700-00 |
from US $7.79 |
||
|
11
|
11
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.66 |
||
|
12
|
12
FX1-67565-00-00
Thru-Hull
|
FX1-67565-00-00 |
— | ||
|
13
|
13
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
