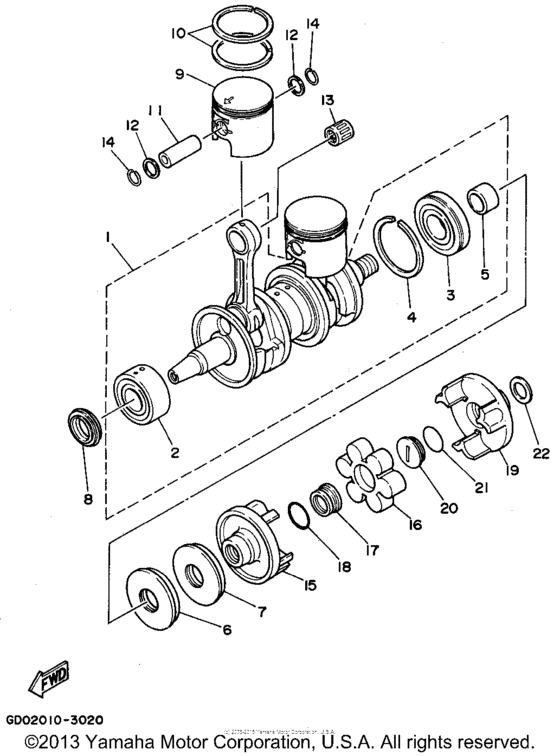

Crankshaft & Piston Diagram Yamaha FX700
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6M6-11400-01-00 Crankshaft Assy |
6M6-11400-01-00 |
from US $1,741.86 |
||
| replacement | |||||
|
1
|
1
62T-11400-02-00 Crankshaft Assy |
62T-11400-02-00 |
from US $1,502.74 |
||
|
2
|
2
93305-30601-00 Bearing |
93305-30601-00 |
from US $157.50 |
||
|
3
|
3
93306-307U1-00 Bearing |
93306-307U1-00 |
from US $58.01 |
||
| replacement | |||||
|
3
|
3
93306-307U3-00 Bearing |
93306-307U3-00 |
from US $65.35 |
||
|
4
|
4
93440-80023-00 Circlip |
93440-80023-00 |
from US $4.53 |
||
|
5
|
5
6M6-45526-00-00
Collar, Drive Shaft
|
6M6-45526-00-00 |
— | ||
|
6
|
6
93102-36M33-00 Oil Seal |
93102-36M33-00 |
from US $19.84 |
||
|
7
|
7
93101-36M46-00 Oil Seal |
93101-36M46-00 |
from US $16.51 |
||
|
8
|
8
93103-32M01-00 Oil Seal |
93103-32M01-00 |
from US $18.46 |
||
|
9
|
9
61X-11631-00-93 Piston (Std) |
61X-11631-00-93 |
from US $114.88 |
||
| replacement | |||||
|
9
|
9
61X-11631-02-93 Piston (Std) |
61X-11631-02-93 |
from US $122.20 |
||
|
9
|
9
61X-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S AP |
61X-11636-00-00 |
from US $115.29 |
||
| replacement | |||||
|
9
|
9
61X-11636-02-00 Piston (0.50Mm O/s)0.50MM O/S AP |
61X-11636-02-00 |
from US $84.84 |
||
|
10
|
10
61X-11603-00-00 Piston Ring Set (Std) |
61X-11603-00-00 |
from US $57.71 |
||
| replacement | |||||
|
10
|
10
61X-11603-01-00 Piston Ring Set (Std) |
61X-11603-01-00 |
from US $60.26 |
||
|
10
|
10
61X-11605-00-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S AP |
61X-11605-00-00 |
from US $60.14 |
||
| replacement | |||||
|
10
|
10
61X-11605-01-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S AP |
61X-11605-01-00 |
from US $61.76 |
||
|
11
|
11
61X-11633-00-00 Pin, Piston |
61X-11633-00-00 |
from US $18.52 |
||
|
12
|
12
90201-20M04-00 Washer, Plate |
90201-20M04-00 |
from US $6.06 |
||
|
13
|
13
93310-320U0-00 Bearing |
93310-320U0-00 |
from US $22.24 |
||
| replacement | |||||
|
13
|
13
93310-320U2-00 Bearing |
93310-320U2-00 |
from US $22.47 |
||
|
14
|
14
934-50210-53-00 Circlip |
934-50210-53-00 |
from US $1.39 |
||
|
15
|
15
6M6-45813-10-9M Flange, Coupling |
6M6-45813-10-9M |
from US $113.01 |
||
| replacement | |||||
|
15
|
15
6M6-45813-10-8P Flange, Coupling |
6M6-45813-10-8P |
from US $80.32 |
||
|
16
|
16
61X-4581J-00-00 Rubber Shaft Coupling |
61X-4581J-00-00 |
from US $97.96 |
||
|
17
|
17
6M6-5114E-00-00
Nut, Ring
|
6M6-5114E-00-00 |
— | ||
|
18
|
18
93210-30M31-00 O-Ring |
93210-30M31-00 |
from US $8.88 |
||
|
19
|
19
6R7-45813-11-9M Flange, Coupling |
6R7-45813-11-9M |
US $137.11 |
||
| replacement | |||||
|
19
|
19
6R7-45813-11-CA Flange, Coupling |
6R7-45813-11-CA |
US $137.11 |
||
|
20
|
20
6R7-5114E-01-00
Nut, Ring
|
6R7-5114E-01-00 |
— | ||
|
21
|
21
93210-30M31-00 O-Ring |
93210-30M31-00 |
from US $8.88 |
||
|
22
|
22
90201-24M02-00 Washer, Plate |
90201-24M02-00 |
from US $7.36 |
||
