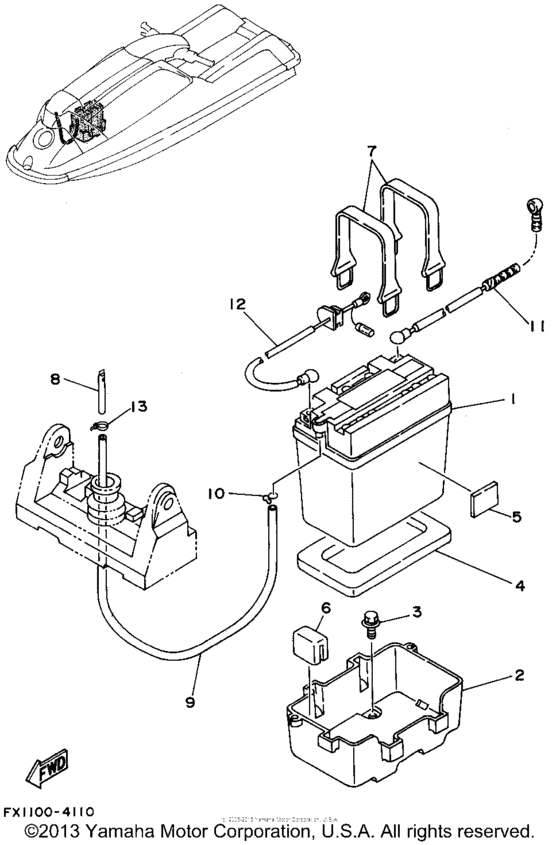

Electrical (2) Diagram Yamaha FX700
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTY-YB16C-LB-00 Yb16Clb Yuasa Batte |
BTY-YB16C-LB-00 |
US $105.86 |
||
| replacement | |||||
|
1
|
1
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
|
YB1-6CLB0-00-00 |
— | ||
|
2
|
2
EW2-68211-00-00 Case, Battery |
EW2-68211-00-00 |
from US $31.77 |
||
|
3
|
3
90119-06920-00 Bolt, With Washer |
90119-06920-00 |
from US $2.27 |
||
|
4
|
4
EU0-U8221-00-00 Pad, Battery |
EU0-U8221-00-00 |
from US $3.38 |
||
| replacement | |||||
|
4
|
4
F1S-U8221-00-00 Pad, Battery |
F1S-U8221-00-00 |
from US $9 |
||
|
5
|
5
EU0-68221-30-00 Pad, Battery |
EU0-68221-30-00 |
from US $21.54 |
||
|
6
|
6
EW2-68221-00-00 Pad, Battery |
EW2-68221-00-00 |
from US $12.61 |
||
|
7
|
7
EU0-68218-04-00 Belt, Battery |
EU0-68218-04-00 |
from US $14.73 |
||
|
8
|
8
EW2-62149-00-00 Pipe, Ventilation 1 |
EW2-62149-00-00 |
from US $4.82 |
||
|
9
|
9
EU0-67856-40-00 Hose (L850) |
EU0-67856-40-00 |
from US $16.29 |
||
| replacement | |||||
|
9
|
9
90699-50085-00 Hose (L850) |
90699-50085-00 |
from US $16.29 |
||
|
10
|
10
90467-08M10-00 Clip |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
10
|
10
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
11
|
11
6R7-82117-01-00 Wire, Lead |
6R7-82117-01-00 |
from US $72.53 |
||
| replacement | |||||
|
11
|
11
64V-82117-00-00 Wire, Lead |
64V-82117-00-00 |
from US $48.82 |
||
|
12
|
12
6R7-82117-11-00 Wire, Lead |
6R7-82117-11-00 |
from US $53.64 |
||
|
13
|
13
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
13
|
13
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
