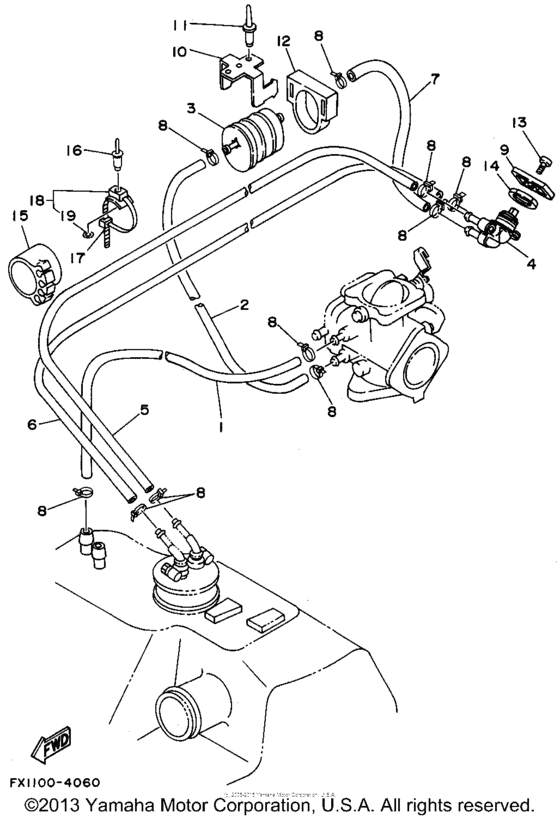

Fuel Diagram Yamaha FX700
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90445-10M34-00 Hose (L550) |
90445-10M34-00 |
from US $38.27 |
||
| replacement | |||||
|
1
|
1
90445-10MA9-00 Hose (L1040) |
90445-10MA9-00 |
from US $38.27 |
||
|
2
|
2
90445-10M45-00 Hose (L400) |
90445-10M45-00 |
US $6.38 |
||
| replacement | |||||
|
2
|
2
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.94 |
||
|
3
|
3
6K8-24560-10-00 Filter Assy |
6K8-24560-10-00 |
from US $40.58 |
||
| replacement | |||||
|
3
|
3
6K8-24560-21-00 Filter Assy |
6K8-24560-21-00 |
from US $38.45 |
||
|
4
|
4
6K8-24500-02-00 Fuel Cock Assy 1 |
6K8-24500-02-00 |
from US $58.01 |
||
| replacement | |||||
|
4
|
4
6K8-24500-03-00 Fuel Cock Assy 1 |
6K8-24500-03-00 |
US $113.38 |
||
|
5
|
5
90445-10M64-00 Hose (L1010) |
90445-10M64-00 |
from US $45.75 |
||
| replacements | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
90445-10M87-00 Hose (L1700) |
90445-10M87-00 |
US $45.75 |
||
|
6
|
6
90445-10M05-00 Hose (L1010) |
90445-10M05-00 |
from US $45.75 |
||
| replacements | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
90445-10M87-00 Hose (L1700) |
90445-10M87-00 |
US $45.75 |
||
|
7
|
7
90445-10M67-00 Hose (L140) |
90445-10M67-00 |
US $6.38 |
||
| replacement | |||||
|
7
|
7
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.94 |
||
|
8
|
8
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
8
|
8
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
8
|
8
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
9
|
9
6R7-24524-00-00 Lever, Cock |
6R7-24524-00-00 |
from US $6.52 |
||
|
10
|
10
FN8-67816-00-00 Bracket, Fuel Filter |
FN8-67816-00-00 |
from US $13.32 |
||
|
11
|
11
90267-48940-00 Rivet, Blind |
90267-48940-00 |
from US $3.14 |
||
|
12
|
12
EU0-67817-00-00 Holder, Filter |
EU0-67817-00-00 |
from US $8.93 |
||
|
13
|
13
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
14
|
14
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
15
|
15
EW2-67811-00-00 Holder, Pipe 1 |
EW2-67811-00-00 |
US $37.58 |
||
|
16
|
16
90267-489UE-00 Rivet, Blind |
90267-489UE-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
90267-48007-00 Rivet, Blind |
90267-48007-00 |
from US $1.69 |
||
|
17
|
17
90601-20010-00 Band |
90601-20010-00 |
from US $3.97 |
||
|
18
|
18
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
19
|
19
90201-05925-00
Washer, Plain
|
90201-05925-00 |
— | ||
