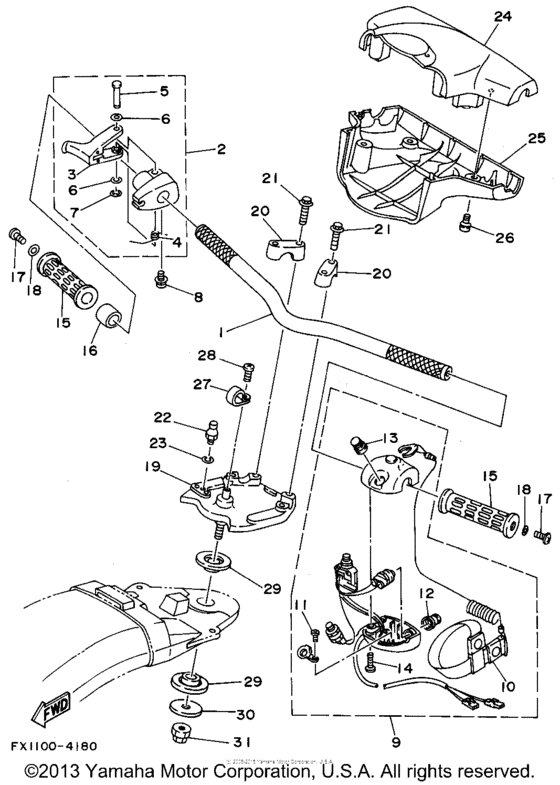

Steering (1) Diagram Yamaha FX700
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
FX1-61552-00-00 Handle |
FX1-61552-00-00 |
from US $178.23 |
||
|
2
|
2
EW2-67250-00-00 Throttle Lever Assy |
EW2-67250-00-00 |
from US $65.63 |
||
| replacement | |||||
|
2
|
2
EW2-67250-02-00 Throttle Lever Assy |
EW2-67250-02-00 |
from US $65.63 |
||
|
3
|
3
EW2-67255-00-00 Lever, Throttle |
EW2-67255-00-00 |
from US $24.51 |
||
|
4
|
4
EW2-67256-00-00 Spring |
EW2-67256-00-00 |
from US $3.40 |
||
|
5
|
5
EW2-67257-00-00 Shaft |
EW2-67257-00-00 |
from US $9.63 |
||
| replacement | |||||
|
5
|
5
EW2-67257-01-00 Shaft |
EW2-67257-01-00 |
from US $9.63 |
||
|
6
|
6
EW2-67258-00-00 Washer, Plate |
EW2-67258-00-00 |
US $1.07 |
||
| replacement | |||||
|
6
|
6
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
7
|
7
EW2-67259-00-00 Circlip |
EW2-67259-00-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
8
|
8
90159-05900-00 Screw, With Washer |
90159-05900-00 |
from US $2.27 |
||
|
9
|
9
EW2-68310-03-00 Switch Box Assy |
EW2-68310-03-00 |
from US $250.29 |
||
| replacement | |||||
|
9
|
9
EW2-68310-04-00 Switch Box Assy |
EW2-68310-04-00 |
from US $220.50 |
||
|
10
|
10
EW2-68348-00-00 Lanyard, Stop Switch |
EW2-68348-00-00 |
from US $29.04 |
||
|
11
|
11
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
12
|
12
FK7-68312-02-00 Stop Button Comp |
FK7-68312-02-00 |
from US $7.42 |
||
|
13
|
13
FK7-68313-01-00 Start Button Comp |
FK7-68313-01-00 |
from US $11.90 |
||
| replacement | |||||
|
13
|
13
FK7-68313-02-00 Start Button Comp |
FK7-68313-02-00 |
from US $11.90 |
||
|
14
|
14
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
15
|
15
EW2-61553-00-00 Grip, Handle |
EW2-61553-00-00 |
from US $17 |
||
|
16
|
16
90560-22281-00 Spacer |
90560-22281-00 |
from US $8.64 |
||
|
17
|
17
90149-05959-00 Screw,trass Head (Fj0) |
90149-05959-00 |
from US $1.98 |
||
|
18
|
18
90201-05928-00 Washer, Plate |
90201-05928-00 |
US $1.98 |
||
| replacements | |||||
|
18
|
18
90201-05M09-00 Washer, Plate |
90201-05M09-00 |
from US $1.98 |
||
|
18
|
18
90201-05800-00 Washer, Plate |
90201-05800-00 |
from US $1.98 |
||
|
19
|
19
FX1-61541-00-00
Column, Steering
|
FX1-61541-00-00 |
— | ||
|
20
|
20
EU0-23814-01-00 Holder, Handle Upper |
EU0-23814-01-00 |
from US $14.73 |
||
| replacement | |||||
|
20
|
20
EU0-23814-02-00 Holder, Handle Upper |
EU0-23814-02-00 |
from US $14.73 |
||
|
21
|
21
90105-08902-00 Bolt, Washer Based |
90105-08902-00 |
from US $3.68 |
||
|
22
|
22
EU0-U1461-01-00
Stud, Joint Ball
|
EU0-U1461-01-00 |
— | ||
| replacements | |||||
|
22
|
22
EU0-61461-01-00
Stood, Joint Ball
|
EU0-61461-01-00 |
— | ||
|
22
|
22
EU0-61461-02-00 Stud, Joint Ball |
EU0-61461-02-00 |
from US $18.20 |
||
|
22
|
22
EU0-U1461-02-00
Stud, Joint Ball
|
EU0-U1461-02-00 |
— | ||
|
22
|
22
EU0-U1461-10-00 SHAFT, JOINT BALL |
EU0-U1461-10-00 |
from US $27.20 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
FX1-6143D-00-00
Pad, Steering 1
|
FX1-6143D-00-00 |
— | ||
|
25
|
25
FX1-6143E-00-00
Pad, Steering 2
|
FX1-6143E-00-00 |
— | ||
|
26
|
26
90149-05937-00 Screw |
90149-05937-00 |
from US $1.84 |
||
|
27
|
27
90600-91728-00 Clamp17 |
90600-91728-00 |
from US $2.08 |
||
|
28
|
28
98980-04010-00 Screw, Bind |
98980-04010-00 |
from US $1.39 |
||
|
29
|
29
EW2-61417-00-00 Bearing, Column |
EW2-61417-00-00 |
from US $10.20 |
||
|
30
|
30
EW2-61419-00-00 Washer, Steering |
EW2-61419-00-00 |
from US $6.38 |
||
|
31
|
31
90179-12933-00 Nut |
90179-12933-00 |
from US $14.59 |
||
