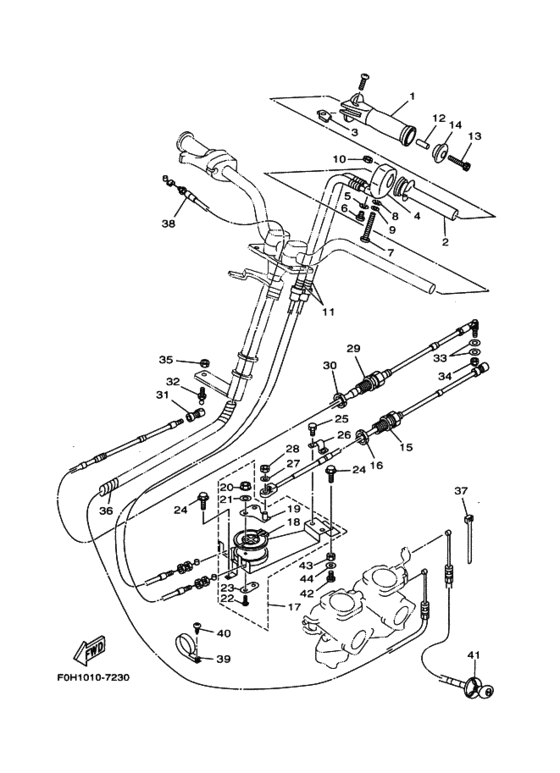

Control cable Diagram Yamaha GP760
- Model code
- F0H1
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GP7-U155C-00-00 Grip, HandleＧＲＩＰ， ＨＡＮＤＬＥ; ＹＭＵＳ |
GP7-U155C-00-00 |
US $83 |
||
|
2
|
2
GH1-U155B-00-00 Grip, InnerＧＲＩＰ， ＩＮＮＥＲ; ＹＭＵＳ |
GH1-U155B-00-00 |
US $184.54 |
||
| replacement | |||||
|
2
|
2
GP7-U155C-00-00 Grip, HandleＧＲＩＰ， ＩＮＮＥＲ; ＹＭＵＳ |
GP7-U155C-00-00 |
US $83 |
||
|
3
|
3
GP7-U151M-00-00
Lever Assy
ＬＥＶＥＲ ＡＳＳＹ; ＹＭＵＳ |
GP7-U151M-00-00 |
— | ||
|
4
|
4
GP7-U152M-00-00 Housing AssyＨＯＵＳＩＮＧ ＡＳＳＹ; ＹＭＵＳ |
GP7-U152M-00-00 |
from US $59.72 |
||
|
5
|
5
929-90046-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90046-00-00 |
from US $1.07 |
||
|
6
|
6
98980-04010-00 Screw, BindＳＣＲＥＷ， ＢＩＮＤ; |
98980-04010-00 |
from US $1.28 |
||
|
7
|
7
97880-06065-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97880-06065-00 |
from US $7.23 |
||
| replacement | |||||
|
7
|
7
98580-06565-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-06565-00 |
from US $7.23 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
929-90061-00-00
Washer, Spring
ＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
GH1-U143B-00-00 Nut, SpecialＮＵＴ， ＳＰＥＣＩＡＬ; ＹＭＵＳ |
GH1-U143B-00-00 |
from US $4.99 |
||
|
11
|
11
GP7-U153D-00-00 Cable,nozzle Control 2ＣＡＢＬＥ， ＮＯＺＺＬＥ ＣＯＮＴＲＯＬ ２; ＹＭＵＳ |
GP7-U153D-00-00 |
US $197.24 |
||
|
12
|
12
90387-05922-00 CollarＣＯＬＬＡＲ; |
90387-05922-00 |
from US $4.23 |
||
| replacement | |||||
|
12
|
12
90387-05800-00 CollarＣＯＬＬＡＲ; |
90387-05800-00 |
from US $10.30 |
||
|
13
|
13
91380-05035-00 Bolt, Hexagon Socket HeadＢＯＬＴ; |
91380-05035-00 |
from US $2 |
||
| replacement | |||||
|
13
|
13
90110-05908-00 Bolt, Hexagon Socket HeadＢＯＬＴ; |
90110-05908-00 |
from US $3.83 |
||
|
14
|
14
GP7-U155F-00-00 Grip, EndＧＲＩＰ， ＨＡＮＤ; ＹＭＵＳ |
GP7-U155F-00-00 |
from US $9.09 |
||
|
15
|
15
GP7-U153E-00-00 Cable, Nozzle Control 3ＣＡＢＬＥ， ＮＯＺＺＬＥ ＣＯＮＴＲＯＬ ３; ＹＭＵＳ |
GP7-U153E-00-00 |
from US $196.49 |
||
| replacement | |||||
|
15
|
15
GP7-6153E-09-00 Cable,nozzle Control 3ＣＡＢＬＥ， ＮＯＺＺＬＥ ＣＯＮＴＲＯＬ ３; ＹＭＵＳ |
GP7-6153E-09-00 |
from US $196.49 |
||
|
16
|
16
EU0-62241-30-00 Nut, Drain 1ＮＵＴ， ＤＲＡＩＮ １; ＹＭＵＳ |
EU0-62241-30-00 |
from US $10.77 |
||
|
17
|
17
GP7-U153J-00-00
Remote Control, Nozzle 2
ＲＥＭＯＣＯＮ， ＮＯＺＺＬＥ ２; ＹＭＵＳ |
GP7-U153J-00-00 |
— | ||
|
18
|
18
GP7-U153N-00-00 Wheel．ＷＨＥＥＬ; ＹＭＵＳ |
GP7-U153N-00-00 |
US $21.06 |
||
|
19
|
19
GP7-U153R-00-00
Arm Assy
．ＡＲＭ ＡＳＳＹ．; ＹＭＵＳ |
GP7-U153R-00-00 |
— | ||
|
20
|
20
95720-05300-00 Nut, Flange．ＮＵＴ， ＦＬＡＮＧＥ; |
95720-05300-00 |
from US $1.56 |
||
|
21
|
21
92990-05300-00 Washer, Internal Tooth．ＷＡＳＨＥＲ， ＩＮＴＥＲＮＡＬ ＴＯＯＴＨ; |
92990-05300-00 |
from US $1.56 |
||
|
22
|
22
978-80050-20-00
Screw, Pan Head
．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
978-80050-20-00 |
— | ||
| replacements | |||||
|
22
|
22
98580-05020-00 Screw, Pan Head．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-05020-00 |
from US $1.56 |
||
|
22
|
22
97885-05020-00 Screw, Pan Head．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-05020-00 |
from US $2.13 |
||
|
23
|
23
GP7-U153P-00-00 Washer．ＷＡＳＨＥＲ; ＹＭＵＳ |
GP7-U153P-00-00 |
US $7.79 |
||
|
24
|
24
90119-06951-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06951-00 |
US $1.98 |
||
| replacement | |||||
|
24
|
24
90119-06913-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06913-00 |
from US $1.98 |
||
|
25
|
25
970-80060-12-00 BoltＢＯＬＴ; |
970-80060-12-00 |
from US $1.98 |
||
|
26
|
26
GH1-6043H-00-00 Clamp,cableＣＬＡＭＰ， ＣＡＢＬＥ; |
GH1-6043H-00-00 |
US $21.49 |
||
|
27
|
27
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.07 |
||
|
28
|
28
95780-06300-00 P58 Nut, NylonＮＵＴ， ＦＬＡＮＧＥ; |
95780-06300-00 |
from US $4.11 |
||
|
29
|
29
GP7-U1481-00-00 Cable, SteeringＣＡＢＬＥ， ＳＴＥＥＲＩＮＧ; ＹＭＵＳ |
GP7-U1481-00-00 |
US $328.07 |
||
|
30
|
30
EU0-62241-30-00 Nut, Drain 1ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
|
31
|
31
GK5-6146F-00-00 Shaft, Joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
GK5-6146F-00-00 |
from US $50.43 |
||
|
32
|
32
EU0-61461-01-00
Stood, Joint Ball
ＳＴＯＯＤ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-01-00 |
— | ||
|
33
|
33
90201-06906-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-06906-00 |
from US $3.26 |
||
|
34
|
34
953-80067-00-00 NutＮＵＴ; |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
34
|
34
9538R-06700-00 NutＮＵＴ; |
9538R-06700-00 |
from US $1.42 |
||
|
35
|
35
95720-06300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
36
|
36
90699-48056-00 Spirap,25ＳＰＩＲＡＰ，２５; |
90699-48056-00 |
US $10.43 |
||
|
37
|
37
90601-20005-00 BandＢＡＮＤ; |
90601-20005-00 |
from US $1.98 |
||
|
38
|
38
F0H-67252-00-00
Cable, Throttle
ＣＡＢＬＥ， ＴＨＲＯＴＴＬＥ; |
F0H-67252-00-00 |
— | ||
|
39
|
39
90600-91728-00 ClampＣＬＩＰ， ＮＹＬＯＮ １７; |
90600-91728-00 |
from US $1.98 |
||
|
40
|
40
97780-60116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60116-00 |
from US $3.73 |
||
|
41
|
41
GP7-U7242-00-00 Cable, ChokeＣＡＢＬＥ， ＣＨＯＫＥ; ＹＭＵＳ |
GP7-U7242-00-00 |
from US $107.57 |
||
| replacement | |||||
|
41
|
41
GP7-U7242-01-00 Cable, ChokeＣＡＢＬＥ， ＣＨＯＫＥ; ＹＭＵＳ |
GP7-U7242-01-00 |
from US $107.57 |
||
|
42
|
42
90180-06910-00
Nut, T
ＮＵＴ， Ｔ; |
90180-06910-00 |
— | ||
|
43
|
43
95380-12700-00 NutＮＵＴ; |
95380-12700-00 |
from US $3.68 |
||
| replacement | |||||
|
43
|
43
95380-12800-00 Nut, CrownＮＵＴ; |
95380-12800-00 |
from US $3.64 |
||
|
44
|
44
92990-12600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92990-12600-00 |
from US $1.42 |
||
