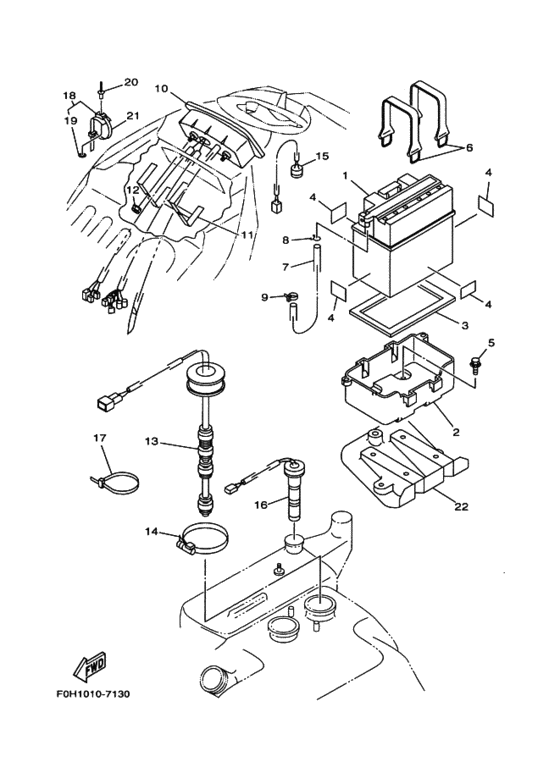

Electrical 2 Diagram Yamaha GP760
- Model code
- F0H1
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-82110-09-00
Yb16Clb Yuasa Battery
ＢＡＴＴＥＲＹ ; ＦＢ１６ＣＬ−Ｂ |
EU0-82110-09-00 |
— | ||
| replacements | |||||
|
1
|
1
BTY-CB16C-LB-00
Battery cb16cl-b
ＢＡＴＴＥＲＹ ; ＦＢ１６ＣＬ−Ｂ |
BTY-CB16C-LB-00 |
— | ||
|
1
|
1
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
ＢＡＴＴＥＲＹ ; ＦＢ１６ＣＬ−Ｂ |
YB1-6CLB0-00-00 |
— | ||
|
2
|
2
EW2-68211-00-00 Case, BatteryＣＡＳＥ， ＢＡＴＴＥＲＹ; |
EW2-68211-00-00 |
from US $30.32 |
||
|
3
|
3
EU0-68221-00-00 Pad, BatteryＰＡＤ， ＢＡＴＴＥＲＹ １; |
EU0-68221-00-00 |
from US $21.54 |
||
| replacement | |||||
|
3
|
3
F1S-U8221-00-00 Pad, BatteryＰＡＤ， ＢＡＴＴＥＲＹ １; |
F1S-U8221-00-00 |
from US $9 |
||
|
4
|
4
EU0-68221-30-00 Pad, BatteryＰＡＤ， ＢＡＴＴＥＲＹ ２; |
EU0-68221-30-00 |
from US $21.54 |
||
|
5
|
5
90119-06920-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06920-00 |
from US $2.27 |
||
|
6
|
6
EU0-68218-04-00 Belt, BatteryＢＡＮＤ， ＢＡＴＴＥＲＹ; |
EU0-68218-04-00 |
from US $14.73 |
||
|
7
|
7
EU0-67856-30-00 Hose, Airvent 1ＨＯＳＥ， ＡＩＲＶＥＮＴ １; |
EU0-67856-30-00 |
US $15.44 |
||
|
8
|
8
90467-08M10-00 ClipＣＬＩＰ; |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
8
|
8
90467-08004-00 ClipＣＬＩＰ; |
90467-08004-00 |
from US $1.70 |
||
|
9
|
9
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
9
|
9
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
9
|
9
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.34 |
||
|
10
|
10
GP7-6820A-11-00
Meter Assy
ＭＥＴＥＲ ＡＳＳＹ; |
GP7-6820A-11-00 |
— | ||
| replacements | |||||
|
10
|
10
GP7-6820A-16-00
Meter Assy (Km/h)
ＭＥＴＥＲ ＡＳＳＹ; |
GP7-6820A-16-00 |
— | ||
|
10
|
10
GP7-6820A-14-00
Meter Assy
ＭＥＴＥＲ ＡＳＳＹ; |
GP7-6820A-14-00 |
— | ||
|
11
|
11
GP7-68238-00-00 Bracket, MeterＢＲＡＣＫＥＴ， ＭＥＴＥＲ; |
GP7-68238-00-00 |
from US $45.20 |
||
| replacement | |||||
|
11
|
11
GP7-68238-10-00 Bracket, MeterＢＲＡＣＫＥＴ， ＭＥＴＥＲ; |
GP7-68238-10-00 |
from US $45.20 |
||
|
12
|
12
95720-05300-00 Nut, FlangeＮＵＴ， ＦＬＡＮＧＥ; |
95720-05300-00 |
from US $1.56 |
||
|
13
|
13
F0H-6824B-00-00
Sender, Fuel
ＳＥＮＤＥＲ， ＦＵＥＬ; |
F0H-6824B-00-00 |
— | ||
|
14
|
14
90601-16274-00 Band, HoseＢＡＮＤ， ＨＯＳＥ ６２; |
90601-16274-00 |
from US $14.03 |
||
|
15
|
15
GP7-U8341-00-00 BuzzerＢＵＺＺＥＲ; ＹＭＵＳ |
GP7-U8341-00-00 |
from US $85.16 |
||
|
16
|
16
GJ1-6824C-01-00 Sender,oilＳＥＮＤＥＲ， ＯＩＬ; |
GJ1-6824C-01-00 |
US $241.40 |
||
|
17
|
17
90601-20005-00 BandＢＡＮＤ; |
90601-20005-00 |
from US $1.98 |
||
|
18
|
18
90600-91736-00 Clamp Comp (Eu0)ＣＬＡＭＰ ＣＯＭＰ．; |
90600-91736-00 |
from US $1.98 |
||
|
19
|
19
90201-05925-00
Washer, Plain
．ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05925-00 |
— | ||
|
20
|
20
90267-48925-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
20
|
20
90267-48802-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48802-00 |
from US $1.84 |
||
|
21
|
21
90601-20006-00 Band, HoseＢＡＮＤ; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
21
|
21
90601-20009-00 Band (Eu0)ＢＡＮＤ; |
90601-20009-00 |
from US $2.27 |
||
|
22
|
22
GJ3-U821C-00-00
Battery Case Base Assembly Comp
ＢＡＴＴＥＲＹ ＣＡＳＥ ＢＡＳＥ ＡＳＳＹ ＣＯＭＰ; ＹＭＵＳ |
GJ3-U821C-00-00 |
— | ||
