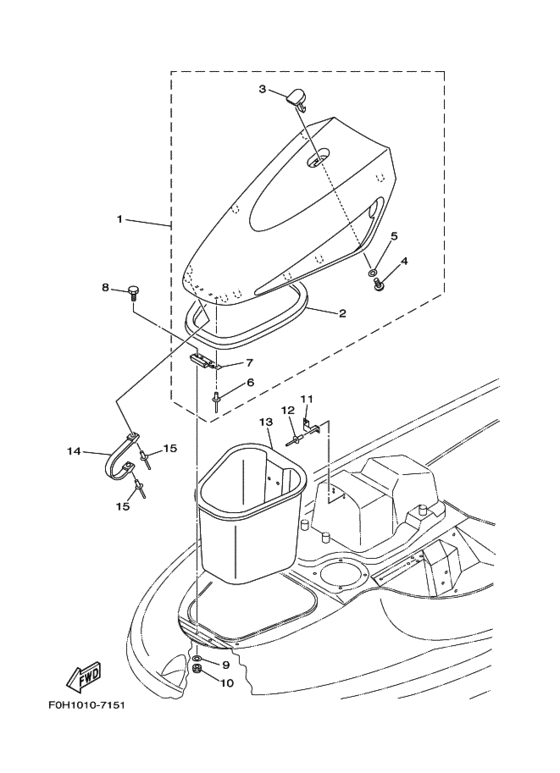

Engine hatch 2 Diagram Yamaha GP760
- Model code
- F0H1
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F0H-6517L-00-00
Lid, Comp
ＬＩＤ， ＣＯＭＰ; |
F0H-6517L-00-00 |
— | ||
|
2
|
2
GP7-U266C-00-00
Packing 4
．ＰＡＣＫＩＮＧ ４; |
GP7-U266C-00-00 |
— | ||
|
3
|
3
GP7-6517C-00-00 Lock, Lid．ＬＯＣＫ， ＬＩＤ; |
GP7-6517C-00-00 |
from US $74.43 |
||
| replacement | |||||
|
3
|
3
F1K-6517C-00-00 Lock, Lid．ＬＯＣＫ， ＬＩＤ; |
F1K-6517C-00-00 |
from US $76.70 |
||
|
4
|
4
90149-05918-00 Screw．ＳＣＲＥＷ; |
90149-05918-00 |
US $2.13 |
||
| replacement | |||||
|
4
|
4
98580-05020-00 Screw, Pan Head．ＳＣＲＥＷ; |
98580-05020-00 |
from US $1.56 |
||
|
5
|
5
92990-05200-00 Washer, Plain．ＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-05200-00 |
from US $1.34 |
||
|
6
|
6
90267-48934-00 Rivet, Blind．ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48934-00 |
from US $3.59 |
||
|
7
|
7
GP7-6517D-01-00 Hinge, Lid．ＨＩＮＧＥ， ＬＩＤ; |
GP7-6517D-01-00 |
from US $39.49 |
||
| replacement | |||||
|
7
|
7
GP7-6517D-10-00 Hinge, Lid．ＨＩＮＧＥ， ＬＩＤ; |
GP7-6517D-10-00 |
from US $39.49 |
||
|
8
|
8
97080-06025-00 Bolt, HexagonＢＯＬＴ; |
97080-06025-00 |
US $1.35 |
||
| replacement | |||||
|
8
|
8
90101-06M27-00 BoltＢＯＬＴ; |
90101-06M27-00 |
from US $1.35 |
||
|
9
|
9
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.07 |
||
|
10
|
10
95720-06300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
11
|
11
GP7-6517F-10-00 Keep, LockＨＯＯＫ， ＬＩＤ ＬＯＣＫ; |
GP7-6517F-10-00 |
from US $14.26 |
||
|
12
|
12
90267-48938-00 Rivet (Eu0)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48938-00 |
from US $3.32 |
||
|
13
|
13
F0H-6475A-00-00
Bowlocker Assy
ＢＯＷＬＯＣＫＥＲ ＡＳＳＹ; |
F0H-6475A-00-00 |
— | ||
|
14
|
14
GP7-6517P-01-00 Support, LidＳＵＰＰＯＲＴ， ＬＩＤ; |
GP7-6517P-01-00 |
from US $6.23 |
||
|
15
|
15
90267-489UN-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-489UN-00 |
from US $2.27 |
||
| replacement | |||||
|
15
|
15
90267-48809-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48809-00 |
from US $1.34 |
||
