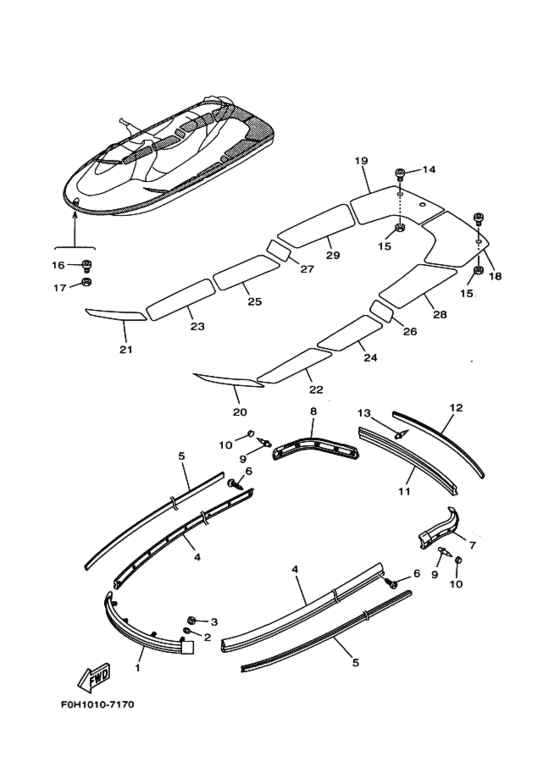

Gunwale. mat Diagram Yamaha GP760
- Model code
- F0H1
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GP7-U2501-00-00 Bow Gunwale CompＢＯＷ ＧＵＮＷＡＬＥ ＣＯＭＰ．; ＹＭＵＳ |
GP7-U2501-00-00 |
US $642.84 |
||
|
2
|
2
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.07 |
||
|
3
|
3
95720-06300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
4
|
4
F0H-62512-00-00 Gunwale, SideＧＵＮＷＡＬＥ， ＳＩＤＥ; |
F0H-62512-00-00 |
US $153.38 |
||
|
5
|
5
F0H-62519-00-00
Inner,gunwale
ＩＮＮＥＲ， ＧＵＮＷＡＬＥ; |
F0H-62519-00-00 |
— | ||
|
6
|
6
90267-48932-00 Rivet, Blind (Ad610Abs/llm10P)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48932-00 |
from US $1.28 |
||
|
7
|
7
GP7-U251D-00-00
Gunwale, Stern 1
ＧＵＮＷＡＬＥ， ＳＴＥＲＮ １; ＹＭＵＳ |
GP7-U251D-00-00 |
— | ||
|
8
|
8
GP7-U251E-00-00
Gunwale, Stern 2
ＧＵＮＷＡＬＥ， ＳＴＥＲＮ ２; ＹＭＵＳ |
GP7-U251E-00-00 |
— | ||
|
9
|
9
90267-48911-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48911-00 |
from US $5.24 |
||
|
10
|
10
GJ3-U352E-40-00 Cap, HeadＭＡＴ， ＢＯＷ; ＹＭＵＳ |
GJ3-U352E-40-00 |
from US $0.85 |
||
| replacement | |||||
|
10
|
10
GJ3-U352E-50-00 Cap HeadＭＡＴ， ＢＯＷ; ＹＭＵＳ |
GJ3-U352E-50-00 |
from US $2.83 |
||
|
11
|
11
F0H-6252C-00-00
Cover, Gunwale 1
ＣＯＶＥＲ， ＧＵＮＷＡＬＥ １; |
F0H-6252C-00-00 |
— | ||
|
12
|
12
F0H-6252D-00-00
Cover, Gunwale 2
ＣＯＶＥＲ， ＧＵＮＷＡＬＥ ２; |
F0H-6252D-00-00 |
— | ||
|
13
|
13
90267-48909-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48909-00 |
from US $11.82 |
||
| replacement | |||||
|
13
|
13
90267-489US-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-489US-00 |
from US $1.49 |
||
|
14
|
14
FN8-61651-00-00 Rope HoleＲＯＰＥ ＨＯＬＥ; |
FN8-61651-00-00 |
from US $4.99 |
||
| replacement | |||||
|
14
|
14
FN8-61651-01-00 Rope HoleＲＯＰＥ ＨＯＬＥ; |
FN8-61651-01-00 |
from US $8.50 |
||
|
15
|
15
EU0-61652-00-00 NutＮＵＴ; |
EU0-61652-00-00 |
from US $6.94 |
||
|
16
|
16
GH1-61651-00-00 Rope HoleＲＯＰＥ ＨＯＬＥ; |
GH1-61651-00-00 |
from US $9.70 |
||
| replacement | |||||
|
16
|
16
GH1-61651-01-00 Rope HoleＲＯＰＥ ＨＯＬＥ; |
GH1-61651-01-00 |
from US $9.70 |
||
|
17
|
17
EU0-61652-00-00 NutＮＵＴ; |
EU0-61652-00-00 |
from US $6.94 |
||
|
18
|
18
F0H-6358F-00-00
Mat, Upper Lh
ＭＡＴ， ＵＰＰＥＲ ＬＨ; |
F0H-6358F-00-00 |
— | ||
|
19
|
19
F0H-6358G-00-00
Mat, Upper Rh
ＭＡＴ， ＵＰＰＥＲ ＲＨ; |
F0H-6358G-00-00 |
— | ||
|
20
|
20
F0H-6351H-00-00
Mat, Step 1
ＭＡＴ， ＳＴＥＰ １; |
F0H-6351H-00-00 |
— | ||
|
21
|
21
F0H-6351J-00-00
Mat, Step 2
ＭＡＴ， ＳＴＥＰ ２; |
F0H-6351J-00-00 |
— | ||
|
22
|
22
F0H-6351K-00-00 Mat, Step 3ＭＡＴ， ＳＴＥＰ ３; |
F0H-6351K-00-00 |
US $65.49 |
||
|
23
|
23
F0H-6351M-00-00
Mat, Step 4
ＭＡＴ， ＳＴＥＰ ４; |
F0H-6351M-00-00 |
— | ||
|
24
|
24
F0H-6351N-00-00 Mat, Step 5ＭＡＴ， ＳＴＥＰ ５; |
F0H-6351N-00-00 |
US $82.76 |
||
|
25
|
25
F0H-6351P-00-00
Mat, Step 6
ＭＡＴ， ＳＴＥＰ ６; |
F0H-6351P-00-00 |
— | ||
|
26
|
26
F0H-6351R-00-00
Mat, Step 7
ＭＡＴ， ＳＴＥＰ ７; |
F0H-6351R-00-00 |
— | ||
|
27
|
27
F0H-6351S-00-00 Mat, Step 8ＭＡＴ， ＳＴＥＰ ８; |
F0H-6351S-00-00 |
US $35.92 |
||
|
28
|
28
F0H-6351T-00-00
Mat Step 9
ＭＡＴ ＳＴＥＰ ９; |
F0H-6351T-00-00 |
— | ||
|
29
|
29
F0H-6351U-00-00
Mat Step 10
ＭＡＴ ＳＴＥＰ １０; |
F0H-6351U-00-00 |
— | ||
