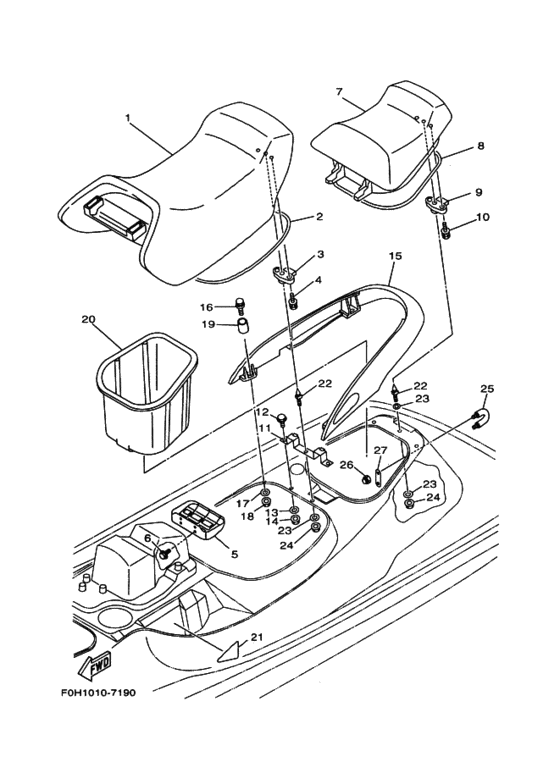

Seat. under locker Diagram Yamaha GP760
- Model code
- F0H1
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F0H-63710-00-00
Driver Seat Assy.1
ＤＲＩＶＥＲ ＳＥＡＴ ＡＳＳＹ．１; |
F0H-63710-00-00 |
— | ||
|
2
|
2
GP7-U266B-00-00 Packing 3ＰＡＣＫＩＮＧ ３; ＹＭＵＳ |
GP7-U266B-00-00 |
US $32.45 |
||
|
3
|
3
GJ3-63850-02-00 Seat Lock AssyＳＥＡＴ ＬＯＣＫ ＡＳＳＹ; |
GJ3-63850-02-00 |
from US $46.56 |
||
| replacement | |||||
|
3
|
3
GJ3-63850-03-00 Seat Lock AssyＳＥＡＴ ＬＯＣＫ ＡＳＳＹ; |
GJ3-63850-03-00 |
from US $46.56 |
||
|
4
|
4
90119-06961-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06961-00 |
US $3.26 |
||
| replacement | |||||
|
4
|
4
90119-06914-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06914-00 |
from US $3.26 |
||
|
5
|
5
F0H-6378C-00-00 Stay, Seat 1ＳＴＡＹ， ＳＥＡＴ １; |
F0H-6378C-00-00 |
US $433.75 |
||
|
6
|
6
90119-08954-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08954-00 |
US $4.11 |
||
| replacement | |||||
|
6
|
6
90119-08903-00 Bolt With Washer (Eu0)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08903-00 |
from US $3.49 |
||
|
7
|
7
F0H-63760-00-00
Rear Seat Assy
ＤＡＭＰＥＲ， ＳＥＡＴ ＡＳＳＹ; |
F0H-63760-00-00 |
— | ||
|
8
|
8
GP7-U266B-00-00 Packing 3ＰＡＣＫＩＮＧ ３; ＹＭＵＳ |
GP7-U266B-00-00 |
US $32.45 |
||
|
9
|
9
GJ3-63850-02-00 Seat Lock AssyＳＥＡＴ ＬＯＣＫ ＡＳＳＹ; |
GJ3-63850-02-00 |
from US $46.56 |
||
| replacement | |||||
|
9
|
9
GJ3-63850-03-00 Seat Lock AssyＳＥＡＴ ＬＯＣＫ ＡＳＳＹ; |
GJ3-63850-03-00 |
from US $46.56 |
||
|
10
|
10
90119-06961-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06961-00 |
US $3.26 |
||
| replacement | |||||
|
10
|
10
90119-06914-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06914-00 |
from US $3.26 |
||
|
11
|
11
GP7-6378D-00-00
Stay, Seat 2
ＳＴＡＹ， ＳＥＡＴ ２; |
GP7-6378D-00-00 |
— | ||
|
12
|
12
97080-10025-00 BoltＢＯＬＴ; |
97080-10025-00 |
US $2.34 |
||
|
13
|
13
92990-10200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-10200-00 |
from US $1.07 |
||
|
14
|
14
95720-10300-00 NutＮＵＴ; |
95720-10300-00 |
from US $4.25 |
||
|
15
|
15
GP7-6271B-00-00 Grip, HandＧＲＩＰ， ＨＡＮＤ; |
GP7-6271B-00-00 |
from US $261.20 |
||
|
16
|
16
90119-08933-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08933-00 |
from US $3.82 |
||
| replacement | |||||
|
16
|
16
90119-08904-00 Bolt With Washer (Eu0)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08904-00 |
from US $2.98 |
||
|
17
|
17
92990-08200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-08200-00 |
from US $1.07 |
||
|
18
|
18
95720-08300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-08300-00 |
from US $4.11 |
||
|
19
|
19
90387-08924-00 CollarＣＯＬＬＡＲ; |
90387-08924-00 |
US $3.38 |
||
|
20
|
20
F0H-6474A-00-00
Under Locker Assy
ＵＮＤＥＲ ＬＯＣＫＥＲ ＡＳＳＹ; |
F0H-6474A-00-00 |
— | ||
|
21
|
21
F0H-6517N-00-00
Pad,hatch 2
ＰＡＤ， ＨＡＴＣＨ ２; |
F0H-6517N-00-00 |
— | ||
|
22
|
22
GH1-63774-01-00 PinＰＩＮ; |
GH1-63774-01-00 |
from US $27.63 |
||
|
23
|
23
92990-10200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-10200-00 |
from US $1.07 |
||
|
24
|
24
95720-10300-00 NutＮＵＴ; |
95720-10300-00 |
from US $4.25 |
||
|
25
|
25
GP7-61628-00-00 Stern EyeＳＴＥＲＮ ＥＹＥ; |
GP7-61628-00-00 |
from US $34.85 |
||
| replacement | |||||
|
25
|
25
F1K-61628-00-00 Stern EyeＳＴＥＲＮ ＥＹＥ; |
F1K-61628-00-00 |
from US $34.85 |
||
|
26
|
26
95720-08300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-08300-00 |
from US $4.11 |
||
|
27
|
27
GP7-U4953-00-00 Plate AＰＬＡＴＥ Ａ; ＹＭＵＳ |
GP7-U4953-00-00 |
from US $4.23 |
||
| replacement | |||||
|
27
|
27
GP7-U4953-10-00 Plate AＰＬＡＴＥ Ａ; ＹＭＵＳ |
GP7-U4953-10-00 |
from US $10.30 |
||
