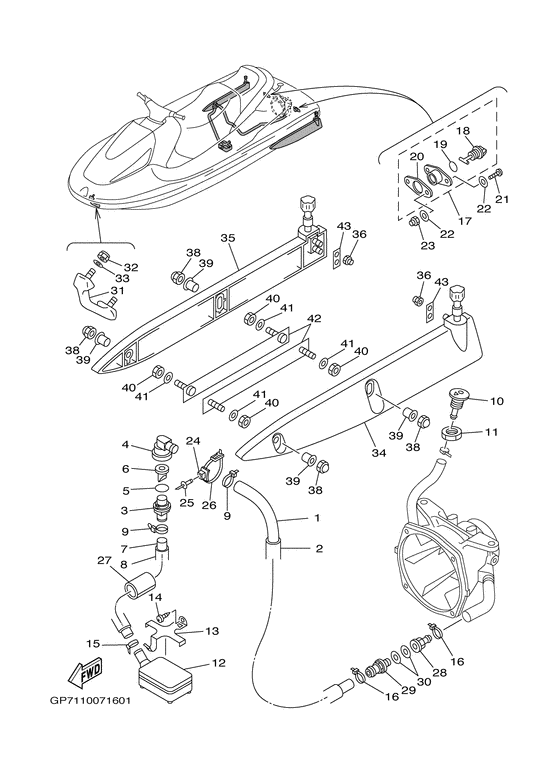

Hull deck Diagram Yamaha GP760
- Model code
- GP72
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- Europe (General) (999)
- Colour
- Pure White (PURW; 0240)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90445-19M10-00 Hose (L860) |
90445-19M10-00 |
US $123.66 |
||
| replacement | |||||
|
01
|
01
90445-19M04-00 Hose |
90445-19M04-00 |
US $109.48 |
||
|
02
|
02
90446-27M73-00 Hose (L700) |
90446-27M73-00 |
from US $13.74 |
||
|
03
|
03
63M-51162-00-00 Joint, Hose |
63M-51162-00-00 |
from US $32.44 |
||
| replacement | |||||
|
03
|
03
68N-5112T-00-00 Joint, Hose |
68N-5112T-00-00 |
from US $31.74 |
||
|
04
|
04
63M-51165-00-00 Joint, Hose 2 |
63M-51165-00-00 |
US $6.68 |
||
|
05
|
05
93210-22ME5-00 O-Ring |
93210-22ME5-00 |
from US $2.83 |
||
|
06
|
06
63M-5316M-00-00 Valve 1 |
63M-5316M-00-00 |
from US $28.62 |
||
|
07
|
07
90445-19M09-00 Hose (L550) |
90445-19M09-00 |
US $36.32 |
||
| replacement | |||||
|
07
|
07
90445-19M01-00 Hose |
90445-19M01-00 |
US $36.32 |
||
|
08
|
08
90446-24M80-00 Hose Protector |
90446-24M80-00 |
from US $10.58 |
||
| replacement | |||||
|
08
|
08
90446-24M81-00 Hose Protector |
90446-24M81-00 |
from US $10.58 |
||
|
09
|
09
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
09
|
09
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
10
|
10
FN8-6269B-00-00 Spout |
FN8-6269B-00-00 |
from US $15.87 |
||
|
11
|
11
EU0-61652-00-00 Nut |
EU0-61652-00-00 |
from US $6.94 |
||
|
12
|
12
GD0-U761D-00-00 Strainer, BilgeYmus |
GD0-U761D-00-00 |
US $84.64 |
||
|
13
|
13
EW2-67618-00-00 Base, Strainer Blige |
EW2-67618-00-00 |
from US $24.51 |
||
|
14
|
14
97780-50112-00 Screw, Tapping |
97780-50112-00 |
US $1.98 |
||
| replacement | |||||
|
14
|
14
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
|
15
|
15
90601-200U1-00 BandYmus |
90601-200U1-00 |
from US $2.27 |
||
|
16
|
16
90601-200U1-00 BandYmus |
90601-200U1-00 |
from US $2.27 |
||
|
17
|
17
EU0-62280-00-00 Drain Plug Assy |
EU0-62280-00-00 |
from US $43.24 |
||
|
18
|
18
EU0-62282-00-00 Plug, Drain |
EU0-62282-00-00 |
from US $3.26 |
||
|
19
|
19
EU0-62283-00-00 O-Ring |
EU0-62283-00-00 |
from US $1.28 |
||
|
20
|
20
EU0-62285-01-00 Packing Drain (Eu0) |
EU0-62285-01-00 |
from US $5.10 |
||
|
21
|
21
97880-05025-00 Screw, Pan Head |
97880-05025-00 |
US $1.35 |
||
| replacement | |||||
|
21
|
21
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
22
|
22
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
23
|
23
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
24
|
24
90600-917U4-00 Clamp CompYmus |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
24
|
24
90600-91736-00 Clamp Comp (Eu0)Ymus |
90600-91736-00 |
from US $1.98 |
||
|
25
|
25
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
25
|
25
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
26
|
26
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
26
|
26
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
27
|
27
GJ1-U7578-20-00 Packing, Hose 2Ymus |
GJ1-U7578-20-00 |
US $2.34 |
||
| replacement | |||||
|
27
|
27
GJ1-U7578-21-00 Packing, Hose 2Ymus |
GJ1-U7578-21-00 |
from US $4.99 |
||
|
28
|
28
90604-80759-00 Connection, Thru-Hull 1/4 |
90604-80759-00 |
from US $15.30 |
||
|
29
|
29
90604-80775-00 Through, Hull Connection |
90604-80775-00 |
from US $14.17 |
||
|
30
|
30
90430-13909-00 Gasket |
90430-13909-00 |
from US $1.90 |
||
|
31
|
31
GP7-61624-00-00 Bow Eye 1 |
GP7-61624-00-00 |
US $45.20 |
||
| replacement | |||||
|
31
|
31
GU5-61624-00-00 Bow Eye 1 |
GU5-61624-00-00 |
US $45.20 |
||
|
32
|
32
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
33
|
33
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
34
|
34
GP7-U883N-00-00 Stabilizer Lh |
GP7-U883N-00-00 |
from US $263.27 |
||
| replacement | |||||
|
34
|
34
GP7-U883N-10-00 Stabilizer Lh |
GP7-U883N-10-00 |
from US $263.27 |
||
|
35
|
35
GP7-U883P-00-00 Stabilizer Rh |
GP7-U883P-00-00 |
from US $263.27 |
||
| replacement | |||||
|
35
|
35
GP7-U883P-10-00 Stabilizer Rh |
GP7-U883P-10-00 |
from US $263.27 |
||
|
36
|
36
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
37
|
37
93430-069U1-00 Circlip |
93430-069U1-00 |
US $211,749.98 |
||
|
38
|
38
90176-089U1-00
Nut, Crown
Ymus |
90176-089U1-00 |
— | ||
|
39
|
39
90387-08915-00
Collar
|
90387-08915-00 |
— | ||
| replacements | |||||
|
39
|
39
90387-08801-00
Collar
|
90387-08801-00 |
— | ||
|
39
|
39
90387-08916-00
Collar
|
90387-08916-00 |
— | ||
|
40
|
40
90170-089U1-00 NutYmus |
90170-089U1-00 |
US $0.65 |
||
|
41
|
41
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
42
|
42
GP7-U883T-00-00 Bracket, StabilizerYmus |
GP7-U883T-00-00 |
US $19.84 |
||
| replacements | |||||
|
42
|
42
999-99999-99-00
Not Available
Ymus |
999-99999-99-00 |
— | ||
|
42
|
42
GP7-U883T-01-00 Bracket,stabilizerYmus |
GP7-U883T-01-00 |
US $19.84 |
||
|
43
|
43
GP7-U883U-00-00 Packing, StabilizerYmus |
GP7-U883U-00-00 |
US $2.16 |
||
| replacement | |||||
|
43
|
43
GP7-U883U-01-00 Packing,stabilizerYmus |
GP7-U883U-01-00 |
US $2.16 |
||
