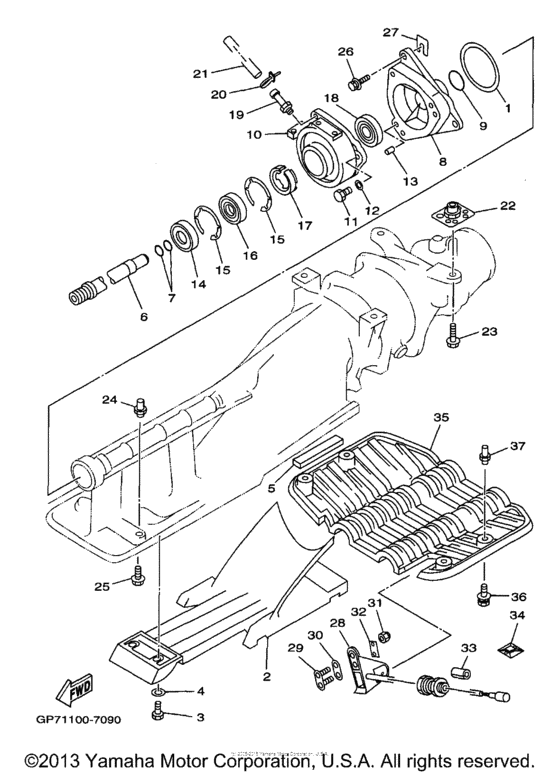

Jet unit (2) Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6K8-45127-00-00 Seal |
6K8-45127-00-00 |
from US $11.19 |
||
|
2
|
2
63N-51333-02-94
Screen, Intake
|
63N-51333-02-94 |
— | ||
|
3
|
3
97095-06018-00 Bolt |
97095-06018-00 |
from US $4.11 |
||
| replacement | |||||
|
3
|
3
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
4
|
4
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
63N-51368-00-00
Felt, Packing
|
63N-51368-00-00 |
— | ||
|
6
|
6
65V-51323-00-00
Shaft, Coupler
|
65V-51323-00-00 |
— | ||
|
7
|
7
93210-17MA4-00 O-Ring |
93210-17MA4-00 |
from US $1.34 |
||
|
8
|
8
62G-45331-01-94
Housing, Bearing
|
62G-45331-01-94 |
— | ||
|
9
|
9
93210-35M72-00 O-Ring |
93210-35M72-00 |
from US $7.65 |
||
|
10
|
10
61X-45332-02-94 Housing, Bearing |
61X-45332-02-94 |
from US $233.01 |
||
| replacements | |||||
|
10
|
10
61X-45332-03-94
Housing, Bearing
|
61X-45332-03-94 |
— | ||
|
10
|
10
61X-45332-03-00 Housing, Bearing |
61X-45332-03-00 |
from US $224.41 |
||
|
10
|
10
61X-G5332-00-00 HOUSING BEARING |
61X-G5332-00-00 |
from US $232.85 |
||
|
11
|
11
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
| replacement | |||||
|
11
|
11
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
12
|
12
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
13
|
13
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
14
|
14
93101-25M55-00 Oil Seal |
93101-25M55-00 |
from US $13.46 |
||
|
15
|
15
93430-47M04-00 Circlip |
93430-47M04-00 |
from US $4.64 |
||
|
16
|
16
93306-205U6-00 Bearing |
93306-205U6-00 |
from US $47.25 |
||
|
17
|
17
63M-51348-00-00
Spacer
|
63M-51348-00-00 |
— | ||
|
18
|
18
93101-25M56-00 Oil Seal |
93101-25M56-00 |
from US $23.52 |
||
|
19
|
19
61L-45378-00-00 Nipple, Hose |
61L-45378-00-00 |
from US $7.62 |
||
|
20
|
20
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
20
|
20
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
21
|
21
90445-09M17-00 Hose (L445) |
90445-09M17-00 |
from US $14.73 |
||
| replacement | |||||
|
21
|
21
90445-09M21-00 Hose (L445) |
90445-09M21-00 |
from US $14.73 |
||
|
22
|
22
90179-10925-00 Nut |
90179-10925-00 |
from US $7.37 |
||
|
23
|
23
90119-109U8-00 Bolt, With Washer |
90119-109U8-00 |
from US $6.86 |
||
|
24
|
24
90179-06947-00 Nut |
90179-06947-00 |
from US $5.26 |
||
|
25
|
25
90119-069UK-00 Bolt, With Washer |
90119-069UK-00 |
from US $4.68 |
||
| replacements | |||||
|
25
|
25
901-19068-96-00 Bolt, With Washer |
901-19068-96-00 |
from US $2 |
||
|
25
|
25
901-19069-29-00 Bolt, With Washer |
901-19069-29-00 |
from US $4.68 |
||
|
26
|
26
90119-089UL-00 Bolt, With Washer |
90119-089UL-00 |
from US $6.94 |
||
|
27
|
27
GD0-U7249-00-05 Shim (T=0.5)UR YMUS |
GD0-U7249-00-05 |
from US $1.56 |
||
|
27
|
27
GD0-U7249-00-10 Shim (T=1.0)UR YMUS |
GD0-U7249-00-10 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
GD0-U7249-00-05 Shim (T=0.5)UR YMUS |
GD0-U7249-00-05 |
from US $1.56 |
||
|
28
|
28
GP7-U8K31-00-00 Sensor Speed |
GP7-U8K31-00-00 |
US $164.21 |
||
| replacement | |||||
|
28
|
28
GP7-U8K31-02-00 Sensor Speed |
GP7-U8K31-02-00 |
US $164.21 |
||
|
29
|
29
GP7-U8K33-00-00 Bracket, Speed Sensor |
GP7-U8K33-00-00 |
from US $9.09 |
||
|
30
|
30
GP7-U8K34-00-00
Packing
|
GP7-U8K34-00-00 |
— | ||
|
31
|
31
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
32
|
32
GP7-U8K35-00-00 Plate, Speed Sensor |
GP7-U8K35-00-00 |
US $3.22 |
||
|
33
|
33
GJ1-U7578-10-00 Packing, Hose 2YMUS |
GJ1-U7578-10-00 |
US $1.26 |
||
| replacements | |||||
|
33
|
33
GJ1-U7578-11-00 Packing, Hose 2YMUS |
GJ1-U7578-11-00 |
from US $1.26 |
||
|
33
|
33
GJ1-U7578-12-00 Packing, Hose 2YMUS |
GJ1-U7578-12-00 |
US $3.37 |
||
|
34
|
34
90600-900U6-00 Base, Clamp |
90600-900U6-00 |
from US $2.57 |
||
|
35
|
35
GP7-U273B-00-00
Plate 2
YMUS |
GP7-U273B-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
YMUS |
999-99999-99-00 |
— | ||
|
36
|
36
90119-089U5-00 Bolt, With Washer |
90119-089U5-00 |
from US $4.34 |
||
| replacements | |||||
|
36
|
36
90119-089UL-00 Bolt, With Washer |
90119-089UL-00 |
from US $6.94 |
||
|
36
|
36
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
|
37
|
37
90179-08965-00 Nut |
90179-08965-00 |
US $18.81 |
||
| replacement | |||||
|
37
|
37
90179-08815-00 Nut |
90179-08815-00 |
US $18.81 |
||
