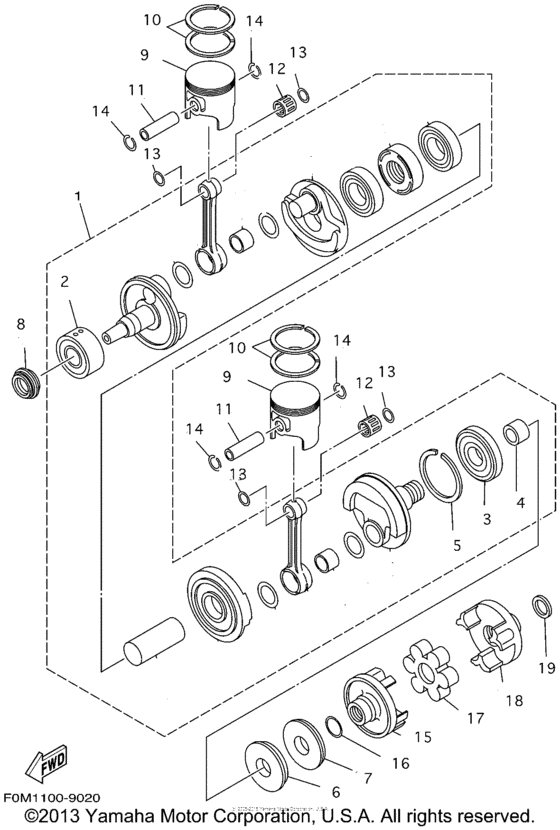

Crankshaft & Piston Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1998
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64X-11400-01-00 Crankshaft Assy |
64X-11400-01-00 |
from US $1,388.77 |
||
| replacement | |||||
|
1
|
1
65V-Y117P-01-00 Crankshaft Assy |
65V-Y117P-01-00 |
from US $1,382.71 |
||
|
2
|
2
93305-30601-00 Bearing |
93305-30601-00 |
from US $156.06 |
||
|
3
|
3
93310-525U4-00 Bearing |
93310-525U4-00 |
from US $87.32 |
||
|
4
|
4
93306-307U3-00 Bearing |
93306-307U3-00 |
from US $65.35 |
||
|
5
|
5
93440-80023-00 Circlip |
93440-80023-00 |
from US $4.53 |
||
|
6
|
6
93102-36M33-00 Oil Seal |
93102-36M33-00 |
from US $19.69 |
||
|
7
|
7
93101-36M46-00 Oil Seal |
93101-36M46-00 |
from US $16.43 |
||
|
8
|
8
93103-32M01-00 Oil Seal |
93103-32M01-00 |
from US $18.28 |
||
|
9
|
9
64X-11635-00-00 Piston (0.25Mm O/s)0.25MM O/S AP |
64X-11635-00-00 |
US $167.31 |
||
|
9
|
9
64X-11636-00-00
Piston (0.50Mm O/s)
0.50MM O/S AP |
64X-11636-00-00 |
— | ||
|
9
|
9
64X-11631-00-91 Piston (Std) |
64X-11631-00-91 |
from US $119.36 |
||
|
10
|
10
64X-11605-00-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S AP |
64X-11605-00-00 |
from US $98.17 |
||
|
10
|
10
64X-11604-00-00 Piston Ring Set (0.25Mm O/s)0.25MM O/S AP |
64X-11604-00-00 |
from US $62.50 |
||
|
10
|
10
64X-11603-00-00 Piston Ring Set (Std) |
64X-11603-00-00 |
from US $74.72 |
||
|
11
|
11
62T-11633-00-00 Pin, Piston |
62T-11633-00-00 |
from US $15.88 |
||
|
12
|
12
93310-320U2-00 Bearing |
93310-320U2-00 |
from US $22.24 |
||
|
13
|
13
90201-20M04-00 Washer, Plate |
90201-20M04-00 |
from US $5.64 |
||
|
14
|
14
934-50210-53-00 Circlip |
934-50210-53-00 |
from US $1.28 |
||
|
15
|
15
63M-45813-01-8P
Flange, Coupling
|
63M-45813-01-8P |
— | ||
| replacement | |||||
|
15
|
15
63M-45813-01-94
Flange, Coupling
|
63M-45813-01-94 |
— | ||
|
16
|
16
62T-45127-00-00 Seal |
62T-45127-00-00 |
from US $8.64 |
||
|
17
|
17
63M-4581J-00-00 Rubber Shaft Coupling |
63M-4581J-00-00 |
from US $113.38 |
||
|
18
|
18
64X-45813-00-8P Flange, Coupling |
64X-45813-00-8P |
US $125.24 |
||
| replacement | |||||
|
18
|
18
64X-45813-00-94 Flange, Coupling |
64X-45813-00-94 |
US $125.24 |
||
|
19
|
19
90201-248M5-00 Washer, Plate |
90201-248M5-00 |
from US $5.17 |
||
| replacement | |||||
|
19
|
19
902-01248-00-00 Washer, Plate |
902-01248-00-00 |
from US $2.65 |
||
