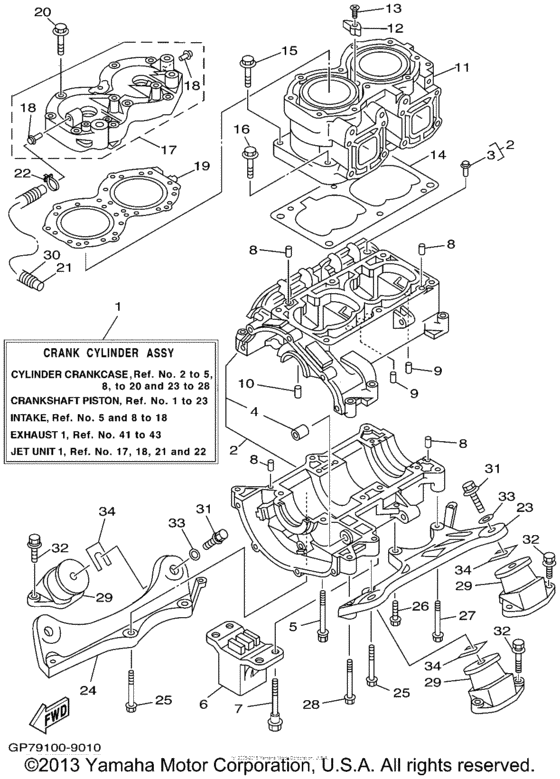

Cylinder crankcase Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1998
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65V-W0090-00-8P Crank Cylinder Assy |
65V-W0090-00-8P |
US $6,066.41 |
||
| replacement | |||||
|
1
|
1
65V-W0090-01-8S element |
65V-W0090-01-8S |
US $6,066.41 |
||
|
2
|
2
64X-15100-00-94 Crankcase Assy |
64X-15100-00-94 |
from US $827.26 |
||
| replacement | |||||
|
2
|
2
64X-15100-00-00 Crankcase Assy |
64X-15100-00-00 |
from US $827.26 |
||
|
3
|
3
62T-14251-10-00 Nipple |
62T-14251-10-00 |
from US $4.82 |
||
|
4
|
4
90380-12M29-00 Bush, Solid |
90380-12M29-00 |
from US $8.64 |
||
|
5
|
5
90119-08M55-00 Bolt, With Washer |
90119-08M55-00 |
from US $4.30 |
||
|
6
|
6
65V-44532-00-00 Stopper, Upper Mount |
65V-44532-00-00 |
from US $78.20 |
||
|
7
|
7
90109-08M56-00 Bolt |
90109-08M56-00 |
from US $4.30 |
||
|
8
|
8
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
9
|
9
93603-10049-00 Pin, Dowel |
93603-10049-00 |
from US $2.32 |
||
|
10
|
10
93604-07141-00 Pin, Dowel |
93604-07141-00 |
from US $2 |
||
|
11
|
11
64X-11311-00-94 Cylinder 1 |
64X-11311-00-94 |
from US $1,249.76 |
||
| replacement | |||||
|
11
|
11
64X-11311-00-8S Cylinder 1 |
64X-11311-00-8S |
from US $1,245.01 |
||
|
12
|
12
6E5-11325-00-00 Anode |
6E5-11325-00-00 |
from US $4.96 |
||
|
13
|
13
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
13
|
13
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.34 |
||
|
14
|
14
6M6-11351-A2-00 Gasket, Cylinder |
6M6-11351-A2-00 |
from US $10.92 |
||
|
15
|
15
90119-10M56-00 Bolt, With Washer |
90119-10M56-00 |
from US $3.97 |
||
|
16
|
16
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $3.32 |
||
|
17
|
17
64X-11111-00-94 Head, Cylinder 1 |
64X-11111-00-94 |
from US $200.79 |
||
| replacement | |||||
|
17
|
17
64X-11111-09-8S Head, Cylinder 1 |
64X-11111-09-8S |
from US $200.79 |
||
|
18
|
18
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
19
|
19
64X-11181-00-00 Gasket, Cylinder Head |
64X-11181-00-00 |
from US $63.16 |
||
|
20
|
20
901-1908M-19-00
Bolt, With Washer
|
901-1908M-19-00 |
— | ||
| replacement | |||||
|
20
|
20
90119-08019-00 Bolt, With Washer |
90119-08019-00 |
from US $4.11 |
||
|
21
|
21
90445-14M07-00 Hose (L1300) |
90445-14M07-00 |
from US $31.58 |
||
| replacement | |||||
|
21
|
21
90445-14M22-00 Hose (L1300) |
90445-14M22-00 |
US $58.27 |
||
|
22
|
22
90450-14M05-00 Hose Clamp Assy(62T) |
90450-14M05-00 |
from US $9.07 |
||
|
23
|
23
6R7-21415-01-94 Bracket, Front Upper 1 |
6R7-21415-01-94 |
from US $137.21 |
||
| replacement | |||||
|
23
|
23
6R7-21415-01-00 Bracket, Front Upper 1 |
6R7-21415-01-00 |
from US $145.07 |
||
|
24
|
24
6R7-21425-01-94 Bracket, Rear Upper 1 |
6R7-21425-01-94 |
from US $126.97 |
||
| replacement | |||||
|
24
|
24
6R7-21425-01-00 Bracket, Rear Upper 1 |
6R7-21425-01-00 |
from US $126.97 |
||
|
25
|
25
90119-10M02-00 Bolt, With Washer |
90119-10M02-00 |
from US $9 |
||
| replacement | |||||
|
25
|
25
90119-10M23-00 Bolt, With Washer |
90119-10M23-00 |
from US $4.96 |
||
|
26
|
26
90119-10M00-00 Bolt, With Washer(63N) |
90119-10M00-00 |
from US $5.95 |
||
|
27
|
27
90119-10M03-00 Bolt, With Washer(63N) |
90119-10M03-00 |
from US $6.94 |
||
|
28
|
28
90119-10M01-00 Bolt, With Washer(63N) |
90119-10M01-00 |
from US $2.66 |
||
|
29
|
29
63M-44517-01-5B Mount Rubber |
63M-44517-01-5B |
from US $88.98 |
||
| replacement | |||||
|
29
|
29
63M-44517-01-94 Mount Rubber |
63M-44517-01-94 |
from US $62.82 |
||
|
30
|
30
90446-20M70-00 Hose (L800) |
90446-20M70-00 |
from US $10.91 |
||
|
31
|
31
90119-089UR-00 Bolt, With Washer |
90119-089UR-00 |
from US $5.38 |
||
| replacements | |||||
|
31
|
31
901-19088-56-00 Bolt, With Washer |
901-19088-56-00 |
from US $8.38 |
||
|
31
|
31
90119-08904-00 Bolt With Washer (Eu0) |
90119-08904-00 |
from US $2.98 |
||
|
32
|
32
90119-089UN-00 Bolt, With Washer |
90119-089UN-00 |
from US $3.40 |
||
| replacement | |||||
|
32
|
32
90119-08826-00 Bolt, With Washer |
90119-08826-00 |
from US $9.63 |
||
|
33
|
33
90201-099U3-00 Washer, Plate |
90201-099U3-00 |
from US $7.65 |
||
|
34
|
34
EU0-U7354-00-10 Shim (T=1.0)UN YMUS |
EU0-U7354-00-10 |
from US $4.53 |
||
| replacement | |||||
|
34
|
34
EU0-67354-D0-00 Shim (T=1.0)Ｔ＝１．０ UN YMUS |
EU0-67354-D0-00 |
from US $4.53 |
||
|
34
|
34
EU0-U7354-00-05 Shim (T=0.5)UN YMUS |
EU0-U7354-00-05 |
from US $3.97 |
||
| replacement | |||||
|
34
|
34
EU0-67354-C0-00 Shim (T=0.5)Ｔ＝０．５ UN YMUS |
EU0-67354-C0-00 |
from US $3.97 |
||
|
34
|
34
EU0-U7354-00-03
Shim (T=0.3)
UN YMUS |
EU0-U7354-00-03 |
— | ||
| replacement | |||||
|
34
|
34
EU0-67354-B0-00 Shim (T=0.3)UN YMUS |
EU0-67354-B0-00 |
from US $3.97 |
||
|
34
|
34
EU0-U7354-00-01
Shim (T=0.1)
UN YMUS |
EU0-U7354-00-01 |
— | ||
| replacement | |||||
|
34
|
34
EU0-67354-A0-00 Shim (T=0.1)UN YMUS |
EU0-67354-A0-00 |
from US $3.32 |
||
|
34
|
34
EU0-U7354-00-20 Shim (T=2.0)UN YMUS |
EU0-U7354-00-20 |
from US $5.81 |
||
| replacement | |||||
|
34
|
34
EU0-67354-E0-00 Shim (T=2.0)UN YMUS |
EU0-67354-E0-00 |
from US $5.81 |
||
