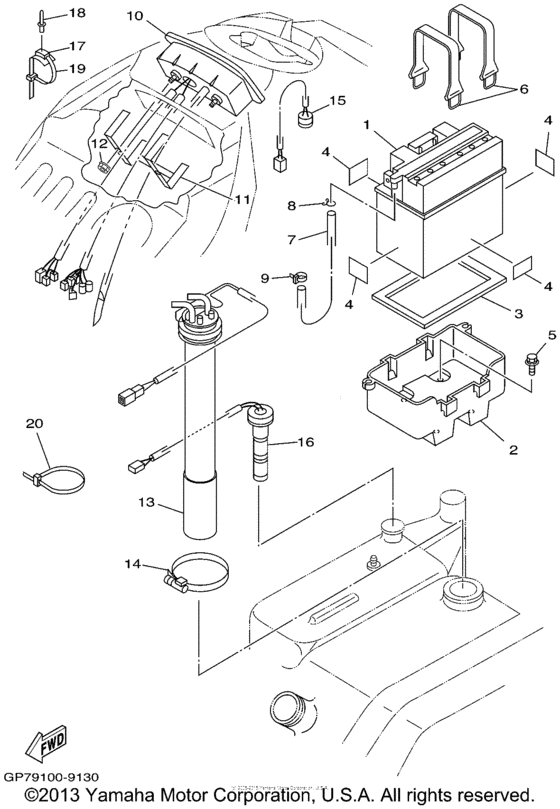

Electrical (2) Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1998
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTY-YB16C-LB-00 Yb16Clb Yuasa Batte |
BTY-YB16C-LB-00 |
US $105.86 |
||
| replacement | |||||
|
1
|
1
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
|
YB1-6CLB0-00-00 |
— | ||
|
2
|
2
GP7-U8211-00-00 Case, Battery |
GP7-U8211-00-00 |
US $13.93 |
||
|
3
|
3
EU0-U8221-00-00 Pad, BatteryYMUS |
EU0-U8221-00-00 |
from US $3.38 |
||
| replacement | |||||
|
3
|
3
F1S-U8221-00-00 Pad, BatteryYMUS |
F1S-U8221-00-00 |
from US $9 |
||
|
4
|
4
EU0-U8221-30-00 Pad, Battery 2YMUS |
EU0-U8221-30-00 |
from US $1.49 |
||
|
5
|
5
90119-069US-00 Bolt, With Washer |
90119-069US-00 |
from US $2.27 |
||
| replacement | |||||
|
5
|
5
90119-06920-00 Bolt, With Washer |
90119-06920-00 |
from US $2.27 |
||
|
6
|
6
EU0-U821D-00-00 Band,battery 1YMUS |
EU0-U821D-00-00 |
from US $14.15 |
||
|
7
|
7
GP7-U785J-00-00 Hose Air Vent |
GP7-U785J-00-00 |
from US $18.49 |
||
|
8
|
8
90467-089U1-00 Clip |
90467-089U1-00 |
from US $4.53 |
||
|
9
|
9
90465-11829-00 Clamp |
90465-11829-00 |
from US $1.42 |
||
| replacements | |||||
|
9
|
9
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
9
|
9
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
10
|
10
GP7-6820A-05-00 Meter Assy (Mph) |
GP7-6820A-05-00 |
US $1,007.93 |
||
| replacement | |||||
|
10
|
10
GP7-6820A-06-00 SCREW,10-24 X 1-1/4 |
GP7-6820A-06-00 |
US $1,007.93 |
||
|
11
|
11
GP7-68238-01-00 Bracket, Meter |
GP7-68238-01-00 |
from US $45.20 |
||
| replacement | |||||
|
11
|
11
GP7-68238-10-00 Bracket, Meter |
GP7-68238-10-00 |
from US $45.20 |
||
|
12
|
12
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
13
|
13
GP7-U824B-04-00 Sender , Fuel |
GP7-U824B-04-00 |
from US $728.21 |
||
| replacement | |||||
|
13
|
13
F0V-U824B-04-00 Sender, Fuel |
F0V-U824B-04-00 |
from US $793.32 |
||
|
14
|
14
90601-162U5-00 Band, Hose 6262 YMUS |
90601-162U5-00 |
from US $10.06 |
||
|
15
|
15
GP7-U8341-00-00 Buzzer |
GP7-U8341-00-00 |
from US $85.16 |
||
|
16
|
16
GP7-U824C-01-00 Sender,oil |
GP7-U824C-01-00 |
US $279.68 |
||
| replacements | |||||
|
16
|
16
F0D-U824C-21-00 Sender, Oil |
F0D-U824C-21-00 |
US $266.77 |
||
|
16
|
16
F0D-U824C-20-00 Sender, Oil |
F0D-U824C-20-00 |
US $266.77 |
||
|
17
|
17
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
17
|
17
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
18
|
18
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
19
|
19
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
19
|
19
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
20
|
20
90601-200U1-00 Band |
90601-200U1-00 |
from US $2.27 |
||
