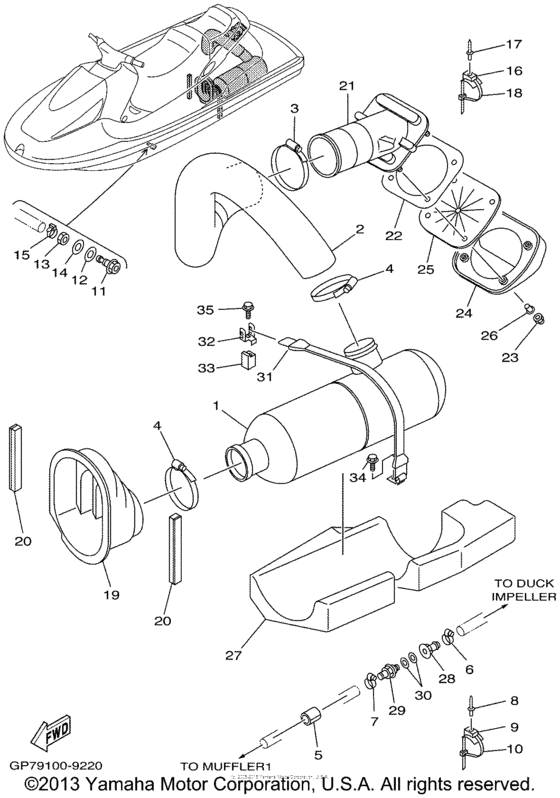

Exhaust (2) Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1998
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GP7-U7550-00-00 Water Lock Comp |
GP7-U7550-00-00 |
US $369.63 |
||
|
2
|
2
GP7-U7555-00-00
Hose, Exhaust
|
GP7-U7555-00-00 |
— | ||
|
3
|
3
90601-195UD-00 Band, Hose 9595 YMUS |
90601-195UD-00 |
US $6.52 |
||
|
4
|
4
90601-170UG-00 Band, Hose 7070 YMUS |
90601-170UG-00 |
from US $14.35 |
||
|
5
|
5
90446-24M83-00 Hose Protector |
90446-24M83-00 |
from US $7.99 |
||
|
6
|
6
90601-118UF-00 Band, Hose 1818 YMUS |
90601-118UF-00 |
from US $5.81 |
||
|
7
|
7
90601-110UC-00 Band, Hose 1111 YMUS |
90601-110UC-00 |
US $4.56 |
||
|
8
|
8
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
8
|
8
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
9
|
9
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
10
|
10
906-01200-12-00
Band
|
906-01200-12-00 |
— | ||
|
11
|
11
GJ1-6753B-02-00 Pilot,water |
GJ1-6753B-02-00 |
from US $20.23 |
||
|
12
|
12
949-90142-00-00
Washer
|
949-90142-00-00 |
— | ||
|
13
|
13
GP7-61652-00-00 Nut |
GP7-61652-00-00 |
from US $8.64 |
||
|
14
|
14
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
15
|
15
90465-11829-00 Clamp |
90465-11829-00 |
from US $1.42 |
||
| replacements | |||||
|
15
|
15
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
15
|
15
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
16
|
16
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
17
|
17
90267-489U7-00 Rivet, Blind |
90267-489U7-00 |
from US $1.49 |
||
| replacement | |||||
|
17
|
17
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
18
|
18
906-01200-12-00
Band
|
906-01200-12-00 |
— | ||
|
19
|
19
GP7-64536-00-00 Seal, Bulkhead 1 |
GP7-64536-00-00 |
US $166.32 |
||
|
20
|
20
GP7-U4537-00-00
Seal, Bulkhead 2
YMUS |
GP7-U4537-00-00 |
— | ||
|
21
|
21
GP7-U7560-00-00
Exhaust, Thru-Hull Comp
|
GP7-U7560-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
GP8-U7525-00-00 Packing |
GP8-U7525-00-00 |
US $11.95 |
||
|
23
|
23
90179-08978-00 Nut |
90179-08978-00 |
from US $9.59 |
||
|
24
|
24
GP7-6751F-00-00 Cover, Exhaust |
GP7-6751F-00-00 |
from US $39.44 |
||
|
25
|
25
GP8-6751G-00-00 Valve, Exhaust |
GP8-6751G-00-00 |
from US $22.62 |
||
|
26
|
26
90387-08802-00 Collar |
90387-08802-00 |
from US $9.26 |
||
|
27
|
27
GP7-U8921-00-00 Hull Liner 1(Not For Sale.)YMUS |
GP7-U8921-00-00 |
US $313.07 |
||
|
28
|
28
90604-80795-00
Through Hull Connection 3/8-12
3/8-12 |
90604-80795-00 |
— | ||
|
29
|
29
90604-80796-00 Through Hull Connection 3/8-123/8-12 |
90604-80796-00 |
from US $19.69 |
||
|
30
|
30
90430-16910-00 Gasket |
90430-16910-00 |
from US $2.55 |
||
|
31
|
31
GJ3-U7570-00-00 C Hook Comp |
GJ3-U7570-00-00 |
from US $47.07 |
||
|
32
|
32
EW2-U5772-00-00 Hook A |
EW2-U5772-00-00 |
from US $11.90 |
||
|
33
|
33
GP7-U755C-00-00
Spacer 2
YMUS |
GP7-U755C-00-00 |
— | ||
|
34
|
34
90119-069UJ-00 Bolt, With Washer |
90119-069UJ-00 |
from US $1.98 |
||
| replacement | |||||
|
34
|
34
90119-06913-00 Bolt, With Washer |
90119-06913-00 |
from US $1.98 |
||
|
35
|
35
901-19069-UP-00
Bolt, With Washer
|
901-19069-UP-00 |
— | ||
| replacements | |||||
|
35
|
35
90119-06914-00 Bolt, With Washer |
90119-06914-00 |
from US $3.26 |
||
|
35
|
35
90119-06808-00 Bolt, With Washer |
90119-06808-00 |
from US $4.50 |
||
