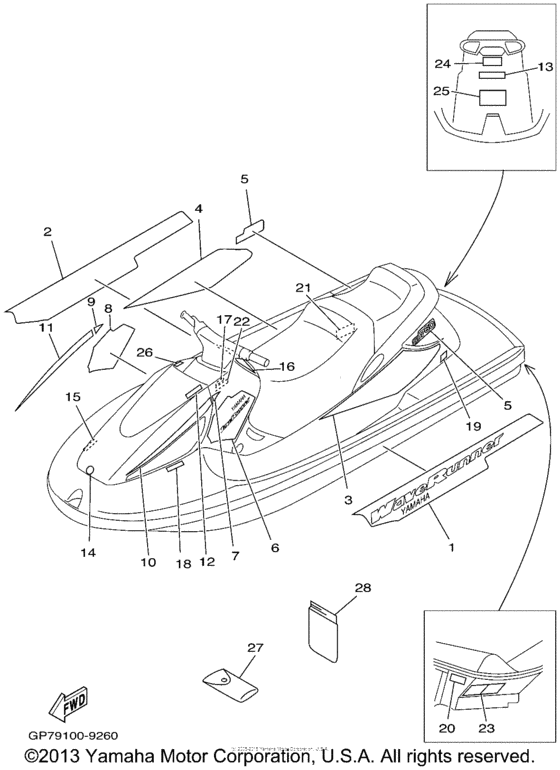

Graphic (Tool) Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1998
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GP7-U417B-20-00
Graphic 1
YMUS |
GP7-U417B-20-00 |
— | ||
|
2
|
2
GP7-U417C-20-00
Graphic 2
YMUS |
GP7-U417C-20-00 |
— | ||
|
3
|
3
GP7-U417D-20-00 Graphic 3YMUS |
GP7-U417D-20-00 |
US $64.60 |
||
|
4
|
4
GP7-U417E-20-00 Graphic 4YMUS |
GP7-U417E-20-00 |
US $64.60 |
||
|
5
|
5
GP7-U417F-20-00
Graphic 5
YMUS |
GP7-U417F-20-00 |
— | ||
|
6
|
6
GP7-U417H-20-00
Graphic 7
YMUS |
GP7-U417H-20-00 |
— | ||
|
7
|
7
GP7-U417H-30-00
Graphic 7
YMUS |
GP7-U417H-30-00 |
— | ||
|
8
|
8
GP7-U417J-20-00
Graphic 8
YMUS |
GP7-U417J-20-00 |
— | ||
|
9
|
9
GP7-U417J-30-00
Graphic 8
YMUS |
GP7-U417J-30-00 |
— | ||
|
10
|
10
GP7-U417K-20-00
Graphic 9
YMUS |
GP7-U417K-20-00 |
— | ||
|
11
|
11
GP7-U417L-20-00
Graphic B
|
GP7-U417L-20-00 |
— | ||
|
12
|
12
GP7-U417M-10-00 Graphic C |
GP7-U417M-10-00 |
US $37.85 |
||
|
13
|
13
GP7-U4122-01-00 Emblem 2YMUS |
GP7-U4122-01-00 |
US $20.30 |
||
|
14
|
14
GU2-U411H-00-00 Emblem, Tuning Fork |
GU2-U411H-00-00 |
from US $14.69 |
||
| replacements | |||||
|
14
|
14
F1B-U411H-10-00 Emblem, Tuning Fork |
F1B-U411H-10-00 |
US $20.23 |
||
|
14
|
14
GU2-U411H-00-XX Tuning Fork Decal 40Mm |
GU2-U411H-00-XX |
US $35.04 |
||
|
15
|
15
GP7-U416B-00-00 Label, Warning |
GP7-U416B-00-00 |
US $2.88 |
||
|
16
|
16
GP8-U416C-00-00
Label, Warning 1
YMUS |
GP8-U416C-00-00 |
— | ||
|
17
|
17
GA9-U416F-00-00 Label, Warning 4YMUS |
GA9-U416F-00-00 |
US $5.81 |
||
|
18
|
18
GJ1-U418C-30-00
Label, Caution
|
GJ1-U418C-30-00 |
— | ||
|
19
|
19
GA9-U418C-00-00
Label, Caution
|
GA9-U418C-00-00 |
— | ||
| replacement | |||||
|
19
|
19
GJ3-U411A-00-00
Label, Caution
|
GJ3-U411A-00-00 |
— | ||
|
20
|
20
GA9-U418G-00-00
Label, Caution (Drain)
|
GA9-U418G-00-00 |
— | ||
|
21
|
21
EU0-U418B-00-00
Label, Caution (Battery)
|
EU0-U418B-00-00 |
— | ||
| replacement | |||||
|
21
|
21
EW2-64183-90-00
Label, Caution
|
EW2-64183-90-00 |
— | ||
|
22
|
22
GA9-U418C-41-00 Label, Caution |
GA9-U418C-41-00 |
US $4.97 |
||
|
23
|
23
GH3-U411A-10-00 Label, Caution |
GH3-U411A-10-00 |
US $105.99 |
||
|
24
|
24
GJ1-U418C-00-00
Label, Caution
|
GJ1-U418C-00-00 |
— | ||
| replacement | |||||
|
24
|
24
GJ3-U411A-00-00
Label, Caution
|
GJ3-U411A-00-00 |
— | ||
|
25
|
25
GP7-U411A-10-00
Label, Caution
|
GP7-U411A-10-00 |
— | ||
|
26
|
26
GJ3-U415E-12-00
Label, Warning
|
GJ3-U415E-12-00 |
— | ||
|
27
|
27
EU0-65986-00-00
Tool Set
|
EU0-65986-00-00 |
— | ||
| replacements | |||||
|
27
|
27
EU0-65986-13-00 Tool Set |
EU0-65986-13-00 |
from US $33.20 |
||
|
27
|
27
EU0-65986-10-00 Tool Set |
EU0-65986-10-00 |
from US $33.20 |
||
|
28
|
28
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
28
|
28
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
28
|
28
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
