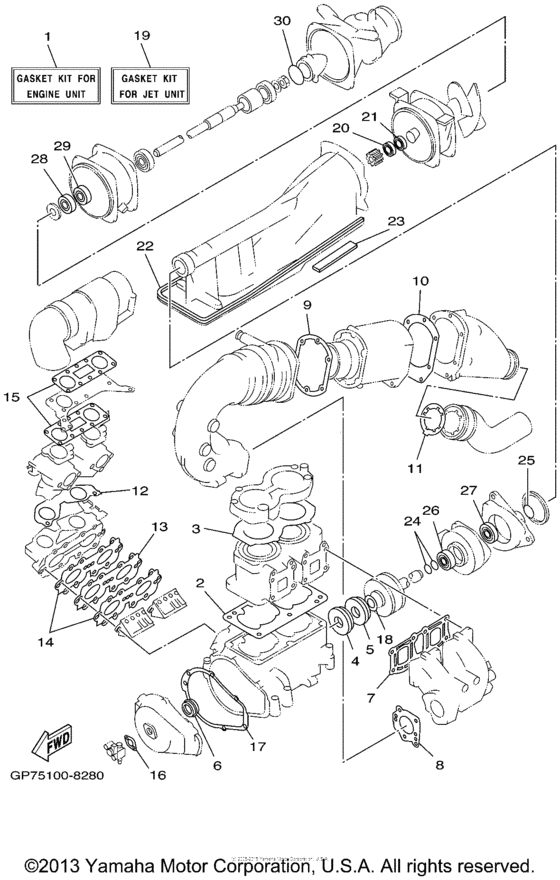

Repair kit (1) Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1998
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64X-W0001-00-00 Gasket Kit For Engine UnitFOR ENGINE UNIT |
64X-W0001-00-00 |
US $257.49 |
||
|
2
|
2
6M6-11351-A2-00 Gasket, Cylinder |
6M6-11351-A2-00 |
from US $10.92 |
||
|
3
|
3
64X-11181-00-00 Gasket, Cylinder Head |
64X-11181-00-00 |
from US $63.16 |
||
|
4
|
4
93102-36M33-00 Oil Seal |
93102-36M33-00 |
from US $19.69 |
||
|
5
|
5
93101-36M46-00 Oil Seal |
93101-36M46-00 |
from US $16.43 |
||
|
6
|
6
93103-32M01-00 Oil Seal |
93103-32M01-00 |
from US $18.28 |
||
|
7
|
7
62T-14613-00-00
Gasket, Exhaust Pipe
|
62T-14613-00-00 |
— | ||
| replacement | |||||
|
7
|
7
62T-14613-01-00 Gasket, Exhaust Pipe |
62T-14613-01-00 |
from US $22.16 |
||
|
8
|
8
64X-14749-00-00 Gasket, Muffler Damper 2 |
64X-14749-00-00 |
from US $26.03 |
||
|
9
|
9
62T-41114-01-00 Gasket, Exhaust Outer Cover |
62T-41114-01-00 |
from US $16.29 |
||
|
10
|
10
64X-41124-00-00 Gasket, Exhaust Oute |
64X-41124-00-00 |
from US $45.14 |
||
| replacement | |||||
|
10
|
10
64X-41124-01-00 Gasket, Exhaust Outer Cover |
64X-41124-01-00 |
from US $29.53 |
||
|
11
|
11
64X-14623-00-00 Gasket, Exhaust Pipe |
64X-14623-00-00 |
from US $6.52 |
||
|
12
|
12
64X-13556-00-00 Gasket, Manifold |
64X-13556-00-00 |
from US $20.23 |
||
|
13
|
13
62T-13624-00-00 Plate, Reed Valve |
62T-13624-00-00 |
from US $16.15 |
||
|
14
|
14
62T-13566-00-00 Gasket |
62T-13566-00-00 |
from US $8.28 |
||
|
15
|
15
64X-13674-00-00 Gasket, Air Cooler Cover 1 |
64X-13674-00-00 |
from US $7.08 |
||
|
16
|
16
6RB-13116-A0-00
Gasket, Pump Case
|
6RB-13116-A0-00 |
— | ||
|
17
|
17
6M6-81365-A0-00 Gasket, Hole Cover |
6M6-81365-A0-00 |
from US $30.18 |
||
|
18
|
18
62T-45127-00-00 Seal |
62T-45127-00-00 |
from US $8.64 |
||
|
19
|
19
65V-W0001-20-00 Gasket Kit For Jet UnitGasket kit for jet unit FOR JET UNIT |
65V-W0001-20-00 |
US $120.82 |
||
|
20
|
20
93102-17M49-00 Oil Seal |
93102-17M49-00 |
from US $7.62 |
||
|
21
|
21
93102-17M50-00 Oil Seal |
93102-17M50-00 |
from US $26.26 |
||
|
22
|
22
6R8-51367-01-00 Felt, Packing |
6R8-51367-01-00 |
from US $10.20 |
||
|
23
|
23
63N-51368-00-00
Felt, Packing
|
63N-51368-00-00 |
— | ||
|
24
|
24
93210-17MA4-00 O-Ring |
93210-17MA4-00 |
from US $1.34 |
||
|
25
|
25
93210-35M72-00 O-Ring |
93210-35M72-00 |
from US $7.65 |
||
|
26
|
26
93101-25M55-00 Oil Seal |
93101-25M55-00 |
from US $13.46 |
||
|
27
|
27
93101-25M56-00 Oil Seal |
93101-25M56-00 |
from US $23.52 |
||
|
28
|
28
93102-25M34-00 Oil Seal |
93102-25M34-00 |
from US $14.56 |
||
|
29
|
29
93101-25M50-00 Oil Seal |
93101-25M50-00 |
from US $9.35 |
||
|
30
|
30
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $3.64 |
||
