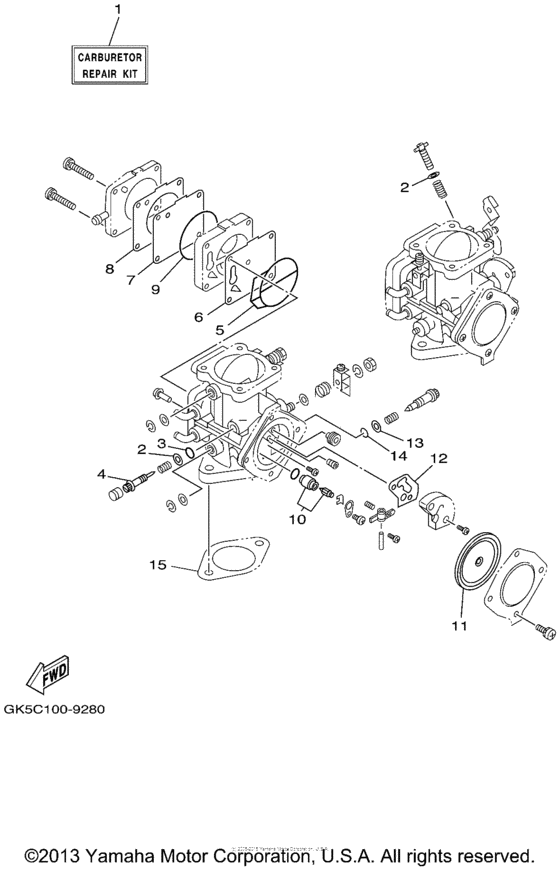

Repair kit (2) Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1998
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64X-W0093-00-00
Carburetor Repair Kit
|
64X-W0093-00-00 |
— | ||
|
2
|
2
812-14235-00-00 Washer, Needle |
812-14235-00-00 |
from US $1.98 |
||
|
3
|
3
812-14147-00-00 O-Ring |
812-14147-00-00 |
from US $2.93 |
||
|
4
|
4
6K8-14946-10-00 Plate, Needle Fitting |
6K8-14946-10-00 |
from US $21.82 |
||
|
5
|
5
6K8-14564-00-00 O-Ring |
6K8-14564-00-00 |
from US $6.66 |
||
|
6
|
6
6K8-24411-20-00 Diaphragm |
6K8-24411-20-00 |
from US $18.84 |
||
|
7
|
7
6K8-24421-10-00 Valve, Check |
6K8-24421-10-00 |
from US $17.28 |
||
|
8
|
8
6K8-24431-20-00 Gasket, Fuel Pump 1 |
6K8-24431-20-00 |
from US $4.53 |
||
|
9
|
9
6K8-14563-00-00 O-Ring |
6K8-14563-00-00 |
from US $6.66 |
||
|
10
|
10
61X-14916-15-00 Jet Needle Comp |
61X-14916-15-00 |
from US $16.31 |
||
| replacement | |||||
|
10
|
10
61X-14916-16-00 Jet Needle Comp |
61X-14916-16-00 |
from US $19.69 |
||
|
11
|
11
6R7-15441-00-00
Diaphragm, Pump
|
6R7-15441-00-00 |
— | ||
|
12
|
12
6K8-14536-11-00 Gasket |
6K8-14536-11-00 |
from US $7.37 |
||
|
13
|
13
822-14235-00-00 Washer, Needle |
822-14235-00-00 |
from US $1.35 |
||
|
14
|
14
583-14561-00-00 O-Ring |
583-14561-00-00 |
from US $2.66 |
||
|
15
|
15
64X-14398-00-00 Gasket |
64X-14398-00-00 |
from US $35.51 |
||
