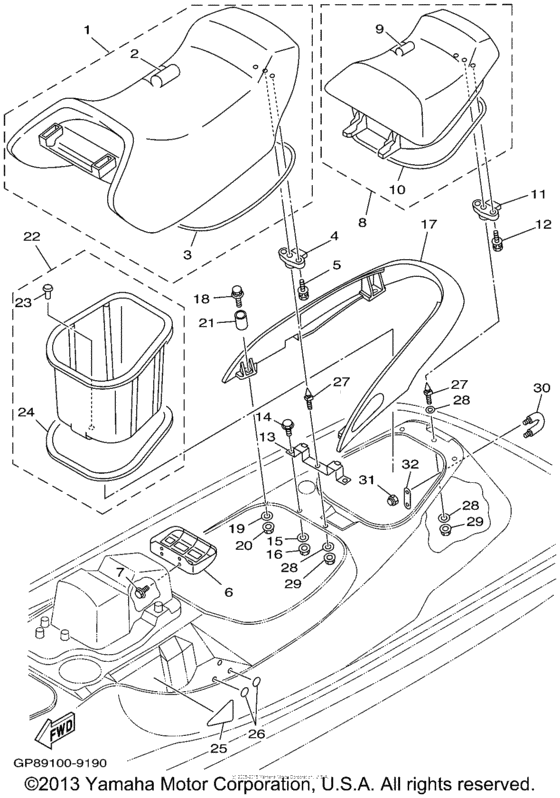

Seat underlocker Diagram Yamaha GP760 Wave Runner GP760
- Engine Capacity
- 760
- Year
- 1998
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GP7-U3710-10-00
Driver Seat Assembly 1
YMUS |
GP7-U3710-10-00 |
— | ||
|
2
|
2
GP7-U371B-10-00
Cover, Seat 1
YMUS |
GP7-U371B-10-00 |
— | ||
|
3
|
3
GP7-U2664-00-00 Packing |
GP7-U2664-00-00 |
US $58.70 |
||
|
4
|
4
GJ3-63850-02-00 Seat Lock Assy |
GJ3-63850-02-00 |
from US $46.56 |
||
| replacement | |||||
|
4
|
4
GJ3-63850-03-00 Seat Lock Assy |
GJ3-63850-03-00 |
from US $46.56 |
||
|
5
|
5
901-19069-UP-00
Bolt, With Washer
|
901-19069-UP-00 |
— | ||
| replacements | |||||
|
5
|
5
90119-06914-00 Bolt, With Washer |
90119-06914-00 |
from US $3.26 |
||
|
5
|
5
90119-06808-00 Bolt, With Washer |
90119-06808-00 |
from US $4.50 |
||
|
6
|
6
GP7-U378C-00-00 Stay, Seat 1YMUS |
GP7-U378C-00-00 |
US $66.35 |
||
|
7
|
7
90119-089U7-00 Bolt, With Washer |
90119-089U7-00 |
from US $4.97 |
||
| replacements | |||||
|
7
|
7
901-19088-00-00 Bolt, With Washer |
901-19088-00-00 |
from US $10.66 |
||
|
7
|
7
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
8
|
8
GP7-U3760-10-00
Rear Seat Assembly
|
GP7-U3760-10-00 |
— | ||
|
9
|
9
GP7-U372B-10-00 Cover, Seat |
GP7-U372B-10-00 |
US $93.28 |
||
|
10
|
10
GP7-U266B-00-00 Packing 3YMUS |
GP7-U266B-00-00 |
US $32.45 |
||
|
11
|
11
GJ3-63850-02-00 Seat Lock Assy |
GJ3-63850-02-00 |
from US $46.56 |
||
| replacement | |||||
|
11
|
11
GJ3-63850-03-00 Seat Lock Assy |
GJ3-63850-03-00 |
from US $46.56 |
||
|
12
|
12
901-19069-UP-00
Bolt, With Washer
|
901-19069-UP-00 |
— | ||
| replacements | |||||
|
12
|
12
90119-06914-00 Bolt, With Washer |
90119-06914-00 |
from US $3.26 |
||
|
12
|
12
90119-06808-00 Bolt, With Washer |
90119-06808-00 |
from US $4.50 |
||
|
13
|
13
GP7-6378D-00-00
Stay, Seat 2
|
GP7-6378D-00-00 |
— | ||
|
14
|
14
97080-10025-00 Bolt |
97080-10025-00 |
US $2.34 |
||
|
15
|
15
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
16
|
16
95720-10300-00 Nut |
95720-10300-00 |
from US $4.25 |
||
|
17
|
17
GP7-6271B-20-00
Grip, Hand
|
GP7-6271B-20-00 |
— | ||
|
18
|
18
90119-08932-00 Bolt, With Washer |
90119-08932-00 |
from US $5.24 |
||
|
19
|
19
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
20
|
20
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
21
|
21
90387-08924-00 Collar |
90387-08924-00 |
US $3.38 |
||
|
22
|
22
GP7-U474A-00-00 Under Lock Assy |
GP7-U474A-00-00 |
US $89.06 |
||
|
23
|
23
90605-502U1-00 Plug, Blind |
90605-502U1-00 |
from US $4.68 |
||
|
24
|
24
GP7-U266D-03-00 Packing 5YMUS |
GP7-U266D-03-00 |
US $18.45 |
||
|
25
|
25
GP7-U517N-01-00
Pad, Hatch 2
YMUS |
GP7-U517N-01-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
YMUS |
999-99999-99-00 |
— | ||
|
26
|
26
GU0-U884B-00-00
Seal
|
GU0-U884B-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
GH1-U3774-00-00 Pin |
GH1-U3774-00-00 |
from US $27.32 |
||
|
28
|
28
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
29
|
29
95720-10300-00 Nut |
95720-10300-00 |
from US $4.25 |
||
|
30
|
30
GU5-61628-00-00 Stern Eye |
GU5-61628-00-00 |
from US $34.85 |
||
| replacements | |||||
|
30
|
30
GP7-61628-00-00 Stern Eye |
GP7-61628-00-00 |
from US $34.85 |
||
|
30
|
30
F1K-61628-00-00 Stern Eye |
F1K-61628-00-00 |
from US $34.85 |
||
|
31
|
31
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
32
|
32
GP7-U4953-00-00 Plate A |
GP7-U4953-00-00 |
from US $4.23 |
||
| replacement | |||||
|
32
|
32
GP7-U4953-10-00 Plate A |
GP7-U4953-10-00 |
from US $10.30 |
||
