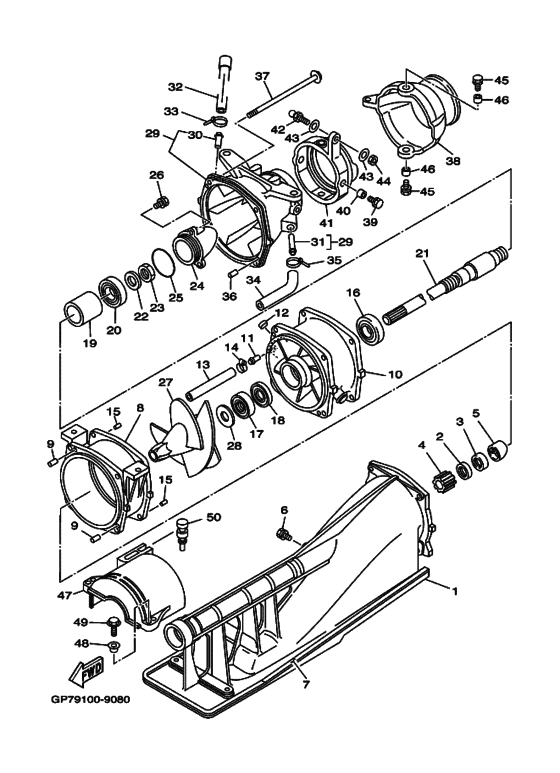

Jet unit 1 Diagram Yamaha GP760
- Model code
- GP7B
- Engine Capacity
- 760
- Year
- 1999
- Sales region
- Europe (999)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65V-51311-01-94 Duct, Intake |
65V-51311-01-94 |
US $419.90 |
||
|
2
|
2
93102-17M49-00 Oil Seal |
93102-17M49-00 |
from US $7.62 |
||
|
3
|
3
93102-17M50-00 Oil Seal |
93102-17M50-00 |
from US $26.26 |
||
|
4
|
4
65V-45318-00-00 Bushing, Drive Shaft |
65V-45318-00-00 |
from US $77.23 |
||
|
5
|
5
65U-R1348-01-00
Spacer
|
65U-R1348-01-00 |
— | ||
|
6
|
6
90119-069UD-00 Bolt, With Washer |
90119-069UD-00 |
from US $9.88 |
||
| replacements | |||||
|
6
|
6
901-19068-92-00 Bolt, With Washer |
901-19068-92-00 |
from US $7.65 |
||
|
6
|
6
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
7
|
7
6R8-51367-01-00 Felt, Packing |
6R8-51367-01-00 |
from US $10.20 |
||
|
8
|
8
6R8-51312-03-94 Housing, Impeller |
6R8-51312-03-94 |
from US $508.25 |
||
|
9
|
9
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
10
|
10
62T-51315-10-94
Duct, Impeller
|
62T-51315-10-94 |
— | ||
|
11
|
11
65A-R1129-00-00 Nipple |
65A-R1129-00-00 |
US $51.49 |
||
|
12
|
12
90331-12M05-00 Plug |
90331-12M05-00 |
from US $7.51 |
||
|
13
|
13
90445-14M17-00 Hose (L102) |
90445-14M17-00 |
from US $4.84 |
||
|
14
|
14
90601-118UF-00 Band, Hose 18 |
90601-118UF-00 |
from US $5.81 |
||
|
15
|
15
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
16
|
16
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
16
|
16
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $22.16 |
||
|
17
|
17
93102-25M34-00 Oil Seal |
93102-25M34-00 |
from US $14.56 |
||
|
18
|
18
93101-25M50-00 Oil Seal |
93101-25M50-00 |
from US $9.35 |
||
|
19
|
19
65V-45538-00-00 Spacer 1 |
65V-45538-00-00 |
from US $22.10 |
||
|
20
|
20
93306-304U1-00 Bearing |
93306-304U1-00 |
from US $23.48 |
||
| replacement | |||||
|
20
|
20
933-06304-XB-00 BEARING |
933-06304-XB-00 |
from US $24.28 |
||
|
21
|
21
65V-45511-00-00
Shaft, Drive
|
65V-45511-00-00 |
— | ||
|
22
|
22
92990-16600-00 Washer, Plain |
92990-16600-00 |
from US $4.25 |
||
| replacement | |||||
|
22
|
22
92990-16200-00 Washer, Plain |
92990-16200-00 |
from US $4.25 |
||
|
23
|
23
95317-16700-00 Nut(6F2) |
95317-16700-00 |
from US $4.30 |
||
|
24
|
24
65A-R1326-00-00 Cap |
65A-R1326-00-00 |
from US $63.50 |
||
| replacement | |||||
|
24
|
24
65A-R1326-10-KT Cap |
65A-R1326-10-KT |
US $53.07 |
||
|
25
|
25
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $3.64 |
||
|
26
|
26
90119-069UB-00 Bolt, With Washer |
90119-069UB-00 |
from US $2.41 |
||
| replacements | |||||
|
26
|
26
901-19068-90-00 BOLT,WITH WASHER |
901-19068-90-00 |
from US $3.37 |
||
|
26
|
26
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
27
|
27
65V-51321-00-00 Impeller |
65V-51321-00-00 |
US $959 |
||
|
28
|
28
62T-51348-00-00 Spacer |
62T-51348-00-00 |
from US $24.51 |
||
|
29
|
29
65V-51318-00-94 Nozzle |
65V-51318-00-94 |
US $201.04 |
||
|
30
|
30
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
31
|
31
62T-51129-00-00 Nipple |
62T-51129-00-00 |
from US $15.16 |
||
|
32
|
32
61X-51673-00-00 Pipe 1 |
61X-51673-00-00 |
from US $14.69 |
||
|
33
|
33
90601-118UF-00 Band, Hose 18 |
90601-118UF-00 |
from US $5.81 |
||
|
34
|
34
90445-14898-00 Hose (L380) |
90445-14898-00 |
from US $11.33 |
||
| replacement | |||||
|
34
|
34
90445-14M25-00 Hose (L380) |
90445-14M25-00 |
from US $11.33 |
||
|
35
|
35
90465-11829-00 Clamp |
90465-11829-00 |
from US $1.42 |
||
| replacements | |||||
|
35
|
35
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
35
|
35
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
36
|
36
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
37
|
37
90119-06829-00 Bolt, With Washer |
90119-06829-00 |
US $14.45 |
||
|
38
|
38
65V-51313-00-00 Nozzle, Deflector |
65V-51313-00-00 |
from US $99.20 |
||
|
39
|
39
90119-089UE-00 Bolt, With Washer |
90119-089UE-00 |
from US $4.39 |
||
| replacements | |||||
|
39
|
39
901-19088-52-00 Bolt, With Washer |
901-19088-52-00 |
from US $10.48 |
||
|
39
|
39
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
40
|
40
90387-08M08-00 Collar |
90387-08M08-00 |
from US $5.96 |
||
| replacement | |||||
|
40
|
40
90387-08M27-00
Collar
|
90387-08M27-00 |
— | ||
|
41
|
41
64Y-51190-00-94 Ring,trim |
64Y-51190-00-94 |
from US $157.50 |
||
|
42
|
42
GH3-U146E-00-00 Stud, Joint Ball |
GH3-U146E-00-00 |
from US $10.91 |
||
|
43
|
43
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.70 |
||
|
44
|
44
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
44
|
44
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
45
|
45
90119-089UE-00 Bolt, With Washer |
90119-089UE-00 |
from US $4.39 |
||
| replacements | |||||
|
45
|
45
901-19088-52-00 Bolt, With Washer |
901-19088-52-00 |
from US $10.48 |
||
|
45
|
45
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
46
|
46
90387-08M06-00 Collar |
90387-08M06-00 |
from US $5.30 |
||
|
47
|
47
65A-R1381-00-00
Cover
|
65A-R1381-00-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
90387-06M60-00 Collar |
90387-06M60-00 |
from US $3.32 |
||
|
49
|
49
90119-069UD-00 Bolt, With Washer |
90119-069UD-00 |
from US $9.88 |
||
| replacements | |||||
|
49
|
49
901-19068-92-00 Bolt, With Washer |
901-19068-92-00 |
from US $7.65 |
||
|
49
|
49
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
50
|
50
90480-06M46-00 Grommet |
90480-06M46-00 |
from US $5.24 |
||
