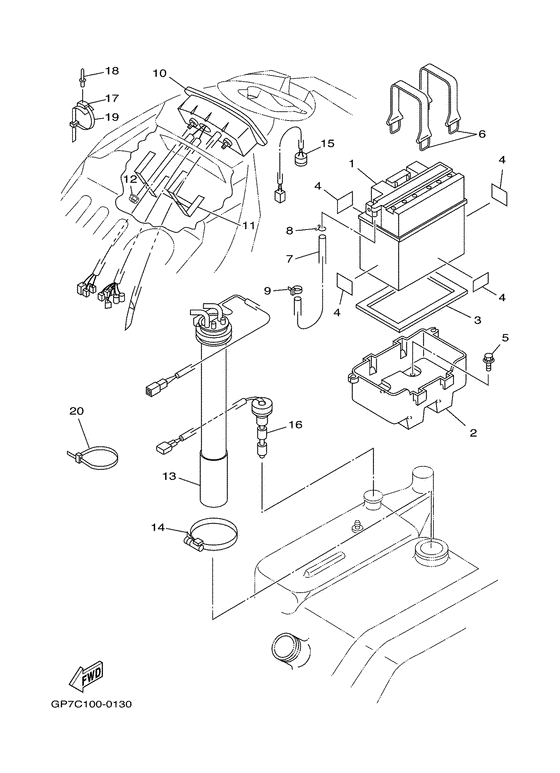

Electrical 2 Diagram Yamaha GP760
- Model code
- GP7C
- Engine Capacity
- 760
- Year
- 2000
- Sales region
- U.S.A. (010)
- Colour
- Pure White (PURW; 0240)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
EU0-82110-09-00
Yb16Clb Yuasa Battery
|
EU0-82110-09-00 |
— | ||
| replacements | |||||
|
01
|
01
BTY-CB16C-LB-00
Battery cb16cl-b
|
BTY-CB16C-LB-00 |
— | ||
|
01
|
01
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
|
YB1-6CLB0-00-00 |
— | ||
|
02
|
02
GP7-U8211-00-00 Case, BatteryYmus |
GP7-U8211-00-00 |
US $13.93 |
||
|
03
|
03
EU0-U8221-00-00 Pad, BatteryYmus |
EU0-U8221-00-00 |
from US $3.38 |
||
| replacement | |||||
|
03
|
03
F1S-U8221-00-00 Pad, BatteryYmus |
F1S-U8221-00-00 |
from US $9 |
||
|
04
|
04
EU0-U8221-30-00 Pad, Battery 2Ymus |
EU0-U8221-30-00 |
from US $1.49 |
||
|
05
|
05
90119-069US-00 Bolt, With WasherYmus |
90119-069US-00 |
from US $2.27 |
||
| replacement | |||||
|
05
|
05
90119-06920-00 Bolt, With WasherYmus |
90119-06920-00 |
from US $2.27 |
||
|
06
|
06
EU0-U821D-00-00 Band,battery 1Ymus |
EU0-U821D-00-00 |
from US $14.15 |
||
|
07
|
07
GP7-U785J-00-00 Hose Air VentYmus |
GP7-U785J-00-00 |
from US $18.49 |
||
|
08
|
08
90467-089U1-00 ClipYmus |
90467-089U1-00 |
from US $4.53 |
||
|
09
|
09
90465-11829-00 ClampYmus |
90465-11829-00 |
from US $1.42 |
||
| replacements | |||||
|
09
|
09
80L-26397-00-00 BandYmus |
80L-26397-00-00 |
from US $1.21 |
||
|
09
|
09
904-65100-98-00 ClampYmus |
904-65100-98-00 |
from US $1.34 |
||
|
10
|
10
GP7-6820A-05-00 Meter Assy (Mph) |
GP7-6820A-05-00 |
US $1,007.93 |
||
| replacement | |||||
|
10
|
10
GP7-6820A-06-00 SCREW,10-24 X 1-1/4 |
GP7-6820A-06-00 |
US $1,007.93 |
||
|
10
|
10
GP7-6820A-15-00 Meter Assy |
GP7-6820A-15-00 |
US $1,088.19 |
||
| replacement | |||||
|
10
|
10
GP7-6820A-16-00
Meter Assy (Km/h)
|
GP7-6820A-16-00 |
— | ||
|
11
|
11
GP7-68238-01-00 Bracket, Meter |
GP7-68238-01-00 |
from US $45.20 |
||
| replacement | |||||
|
11
|
11
GP7-68238-10-00 Bracket, Meter |
GP7-68238-10-00 |
from US $45.20 |
||
|
12
|
12
9572R-05300-00 Nut, FlangeYmus |
9572R-05300-00 |
from US $1.56 |
||
|
13
|
13
F0D-U824B-00-00 Sender, FuelYmus |
F0D-U824B-00-00 |
from US $728.21 |
||
| replacement | |||||
|
13
|
13
F0V-U824B-04-00 Sender, FuelYmus |
F0V-U824B-04-00 |
from US $793.32 |
||
|
14
|
14
90601-162U5-00 Band, Hose 62Ymus |
90601-162U5-00 |
from US $10.06 |
||
|
15
|
15
GP7-U8341-00-00 BuzzerYmus |
GP7-U8341-00-00 |
from US $85.16 |
||
|
16
|
16
GP7-U824C-02-00 Sender, OilYmus |
GP7-U824C-02-00 |
US $279.68 |
||
| replacements | |||||
|
16
|
16
F0D-U824C-21-00 Sender, OilYmus |
F0D-U824C-21-00 |
US $266.77 |
||
|
16
|
16
GP7-U824C-01-00 Sender,oilYmus |
GP7-U824C-01-00 |
US $279.68 |
||
|
16
|
16
F0D-U824C-20-00 Sender, OilYmus |
F0D-U824C-20-00 |
US $266.77 |
||
|
17
|
17
90600-917U4-00 Clamp CompYmus |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
17
|
17
90600-91736-00 Clamp Comp (Eu0)Ymus |
90600-91736-00 |
from US $1.98 |
||
|
18
|
18
90267-48802-00 Rivet, BlindYmus |
90267-48802-00 |
from US $1.84 |
||
|
19
|
19
90464-32801-00 ClampYmus |
90464-32801-00 |
from US $3.12 |
||
|
20
|
20
90601-200U1-00 BandYmus |
90601-200U1-00 |
from US $2.27 |
||
