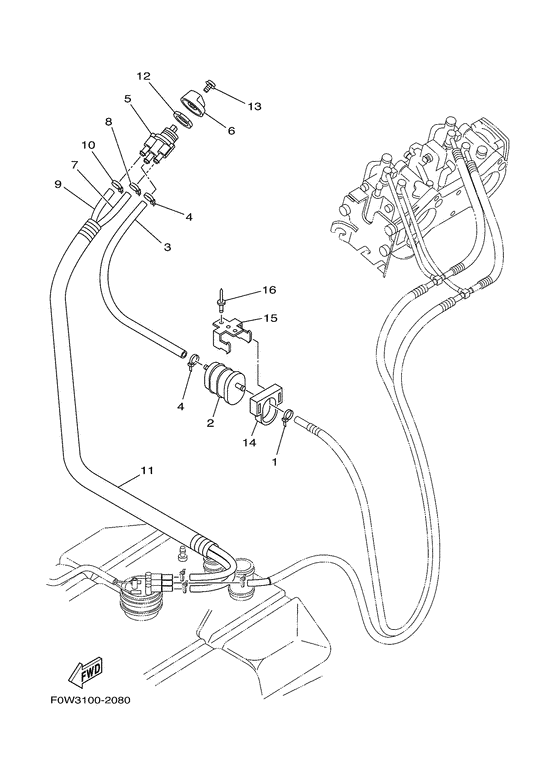

Fuel Diagram Yamaha GP800
- Model code
- 68AK
- Engine Capacity
- 800
- Year
- 2005
- Colour
- Pure White (PURW; 0240)
- Region Code
- 010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90465-11829-00 ClampYmus |
90465-11829-00 |
from US $1.42 |
||
| replacements | |||||
|
01
|
01
80L-26397-00-00 BandYmus |
80L-26397-00-00 |
from US $1.21 |
||
|
01
|
01
904-65100-98-00 ClampYmus |
904-65100-98-00 |
from US $1.34 |
||
|
02
|
02
66V-24560-00-00 Filter Assy |
66V-24560-00-00 |
from US $23.38 |
||
| replacement | |||||
|
02
|
02
66V-24560-01-00 Filter Assy |
66V-24560-01-00 |
from US $23.38 |
||
|
03
|
03
90445-11007-00 Hose (L500) |
90445-11007-00 |
from US $17.78 |
||
|
04
|
04
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
04
|
04
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
04
|
04
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
05
|
05
66V-24500-02-00 Fuel Cock Assy 1 |
66V-24500-02-00 |
from US $77.78 |
||
|
06
|
06
6K8-24524-10-00 Lever, Cock |
6K8-24524-10-00 |
from US $15.17 |
||
|
07
|
07
90445-11006-00 Hose (L580) |
90445-11006-00 |
from US $20.20 |
||
|
08
|
08
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
08
|
08
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
08
|
08
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
09
|
09
90445-11008-00 Hose (L550) |
90445-11008-00 |
from US $22.95 |
||
|
10
|
10
90465-11829-00 ClampYmus |
90465-11829-00 |
from US $1.42 |
||
| replacements | |||||
|
10
|
10
80L-26397-00-00 BandYmus |
80L-26397-00-00 |
from US $1.21 |
||
|
10
|
10
904-65100-98-00 ClampYmus |
904-65100-98-00 |
from US $1.34 |
||
|
11
|
11
90446-27M55-00 Tube (L400) |
90446-27M55-00 |
from US $1.34 |
||
|
12
|
12
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
13
|
13
90159-04800-00 Screw, With WasherYmus |
90159-04800-00 |
from US $1.26 |
||
|
14
|
14
EU0-U7817-00-00 Holder, FilterYmus |
EU0-U7817-00-00 |
from US $19.22 |
||
|
15
|
15
FN8-67816-00-00 Bracket, Fuel Filter |
FN8-67816-00-00 |
from US $13.32 |
||
|
16
|
16
90267-489U1-00 Rivet,blindYmus |
90267-489U1-00 |
from US $4.77 |
||
| replacement | |||||
|
16
|
16
90267-48938-00 Rivet (Eu0)Ymus |
90267-48938-00 |
from US $3.32 |
||
