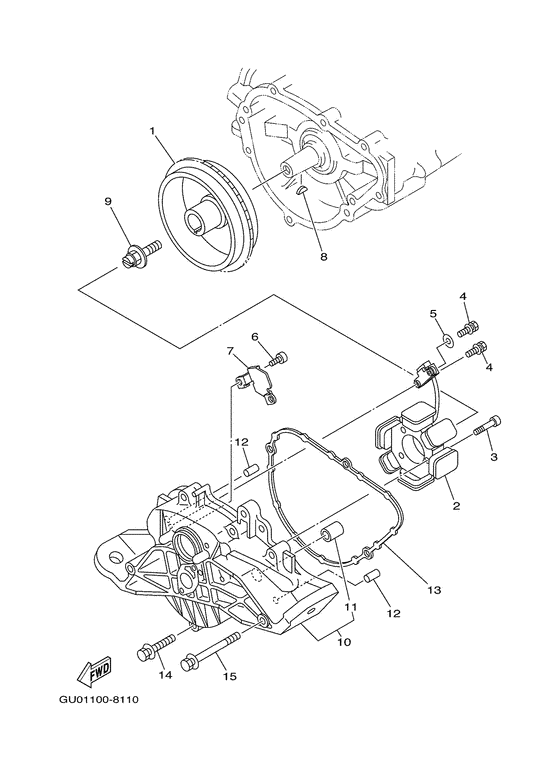

Generator Diagram Yamaha GP800
- Model code
- 68AK
- Engine Capacity
- 800
- Year
- 2005
- Colour
- Pure White (PURW; 0240)
- Region Code
- 010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
66E-85550-00-00 Rotor Assy |
66E-85550-00-00 |
from US $751.25 |
||
|
02
|
02
66E-85510-00-00 Stator Assy |
66E-85510-00-00 |
from US $420.99 |
||
|
03
|
03
91318-06030-00 Bolt |
91318-06030-00 |
from US $0.99 |
||
| replacement | |||||
|
03
|
03
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
04
|
04
97513-05514-00 Bolt, With Washer |
97513-05514-00 |
from US $1.70 |
||
|
05
|
05
90201-05M09-00 Washer, Plate |
90201-05M09-00 |
from US $1.98 |
||
|
06
|
06
91318-06014-00 Bolt |
91318-06014-00 |
from US $0.52 |
||
| replacement | |||||
|
06
|
06
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
07
|
07
66E-81328-00-00 Clamp |
66E-81328-00-00 |
from US $9.63 |
||
|
08
|
08
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
08
|
08
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
09
|
09
90109-10M72-00 Bolt |
90109-10M72-00 |
from US $27.34 |
||
|
10
|
10
66E-81337-11-8S Cover, Flywheel |
66E-81337-11-8S |
from US $402.38 |
||
|
11
|
11
90380-12M29-00 Bush, Solid |
90380-12M29-00 |
from US $8.64 |
||
|
12
|
12
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.30 |
||
|
13
|
13
66E-81168-10-00 O-Ring |
66E-81168-10-00 |
from US $21.39 |
||
|
14
|
14
901-1908M-18-00
Boulon, Avec Rondelle
|
901-1908M-18-00 |
— | ||
| replacement | |||||
|
14
|
14
90119-08009-00 Bolt, With Washer |
90119-08009-00 |
from US $3.54 |
||
|
15
|
15
90119-08M55-00 Bolt, With Washer |
90119-08M55-00 |
from US $4.30 |
||
