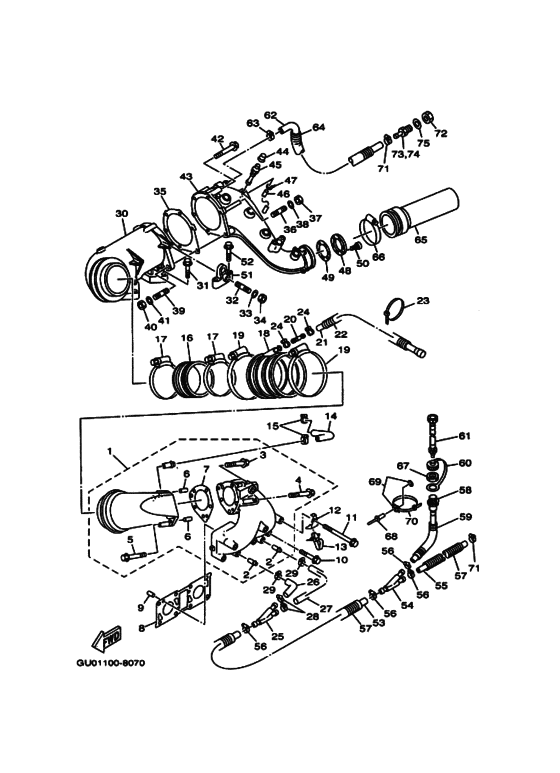

Exhaust 1 Diagram Yamaha GP800
- Model code
- F0L1
- Engine Capacity
- 800
- Year
- 1998
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66E-W1471-00-8P Muffler Comp. 1ＭＵＦＬＥＲ ＣＯＭＰ． １; |
66E-W1471-00-8P |
from US $820.10 |
||
|
2
|
2
6K8-51129-00-00 Nipple．ＮＩＰＰＬＥ; |
6K8-51129-00-00 |
from US $7.65 |
||
|
3
|
3
90105-08M83-00 Bolt, Flange．ＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-08M83-00 |
from US $3.65 |
||
|
4
|
4
90105-08M84-00 Bolt, Flange．ＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-08M84-00 |
from US $9.63 |
||
|
5
|
5
90105-08M66-00 Bolt, Flange．ＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-08M66-00 |
from US $3.82 |
||
|
6
|
6
936-06120-19-00 Pin, Dowel．ＰＩＮ， ＤＯＷＥＬ; |
936-06120-19-00 |
from US $2.69 |
||
|
7
|
7
66E-14749-00-00 Gasket, Muffler Damper 2．ＧＡＳＫＥＴ， ＭＵＦＦＬＥＲ ＤＡＭＰＥＲ ２; |
66E-14749-00-00 |
from US $30.42 |
||
|
8
|
8
66E-14613-00-00 Gasket, Exhaust PipeＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＰＩＰＥ; |
66E-14613-00-00 |
from US $33.86 |
||
|
9
|
9
936-06120-19-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; |
936-06120-19-00 |
from US $2.69 |
||
|
10
|
10
90105-10M85-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10M85-00 |
from US $8.64 |
||
|
11
|
11
90105-10M86-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10M86-00 |
from US $10.30 |
||
|
12
|
12
90465-20M78-00 ClampＣＬＡＭＰ; |
90465-20M78-00 |
from US $10.73 |
||
|
13
|
13
90465-12M56-00 ClampＣＬＡＭＰ; |
90465-12M56-00 |
from US $5.24 |
||
|
14
|
14
66E-12576-00-00 Hose 1ＨＯＳＥ １; |
66E-12576-00-00 |
from US $13.07 |
||
|
15
|
15
90450-22M14-00 Hose Clamp Assy(64X)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-22M14-00 |
from US $7.65 |
||
|
16
|
16
66E-14625-00-00 Joint, Exhaust 2ＪＯＩＮＴ， ＥＸＨＡＵＳＴ ２; |
66E-14625-00-00 |
from US $99.20 |
||
|
17
|
17
90450-99M02-00 Hose Clamp AssyＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-99M02-00 |
from US $34.40 |
||
|
18
|
18
66E-14615-00-00 Joint, Exhaust 1ＪＯＩＮＴ， ＥＸＨＡＵＳＴ １; |
66E-14615-00-00 |
from US $78.30 |
||
|
19
|
19
90450-99M18-00 Hose Clamp AssyＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-99M18-00 |
from US $54.30 |
||
|
20
|
20
66E-51142-00-00 Joint, Hose 4ＣＯＮＮＥＣＴＩＯＮ; |
66E-51142-00-00 |
from US $4.14 |
||
| replacement | |||||
|
20
|
20
60E-12594-00-00 Joint, Hose 4ＣＯＮＮＥＣＴＩＯＮ; |
60E-12594-00-00 |
from US $4.82 |
||
|
21
|
21
66E-12589-00-00 Hose 6ＨＯＳＥ ６; |
66E-12589-00-00 |
US $45.74 |
||
|
22
|
22
90446-20M70-00 Hose (L800)ＨＯＳＥ; |
90446-20M70-00 |
from US $10.91 |
||
|
23
|
23
90465-13M36-00 ClampＣＬＡＭＰ; |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
23
|
23
90465-13M39-00 Clamp(6E8)ＣＬＡＭＰ; |
90465-13M39-00 |
from US $1.34 |
||
|
24
|
24
90450-18M09-00 Hose Clamp Assy(63M)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-18M09-00 |
from US $10.77 |
||
|
25
|
25
63M-12581-00-00 Joint, Hose 1ＪＯＩＮＴ， ＨＯＳＥ １; |
63M-12581-00-00 |
US $5.58 |
||
|
26
|
26
66E-12577-00-00 Hose 2ＨＯＳＥ ２; |
66E-12577-00-00 |
from US $17.63 |
||
|
27
|
27
66E-12579-00-00 Hose 4ＨＯＳＥ ４; |
66E-12579-00-00 |
US $54.22 |
||
|
28
|
28
90450-18M09-00 Hose Clamp Assy(63M)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-18M09-00 |
from US $10.77 |
||
|
29
|
29
90450-14M05-00 Hose Clamp Assy(62T)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-14M05-00 |
from US $9.07 |
||
|
30
|
30
66E-14721-00-94 Muffler 2ＭＵＦＦＬＥＲ ２; |
66E-14721-00-94 |
from US $609.43 |
||
| replacement | |||||
|
30
|
30
66E-14721-10-8S Muffler 2ＭＵＦＦＬＥＲ ２; |
66E-14721-10-8S |
from US $595.33 |
||
|
31
|
31
90105-10M82-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10M82-00 |
from US $7.65 |
||
|
32
|
32
90116-10M66-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
90116-10M66-00 |
from US $20.23 |
||
|
33
|
33
929-90106-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90106-00-00 |
from US $1.07 |
||
|
34
|
34
95380-10600-00 EcrouＮＵＴ; |
95380-10600-00 |
from US $2 |
||
|
35
|
35
66E-41124-00-00 Gasket, Exhaust Outer CoverＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＯＵＴＥＲ ＣＯＶＥＲ; |
66E-41124-00-00 |
from US $52.94 |
||
| replacement | |||||
|
35
|
35
66E-41124-10-00 Gasket, Exhaust Outer CoverＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＯＵＴＥＲ ＣＯＶＥＲ; |
66E-41124-10-00 |
from US $53.33 |
||
|
36
|
36
90116-08M64-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
90116-08M64-00 |
US $14.51 |
||
|
37
|
37
953-33086-00-00 NutＮＵＴ; |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
37
|
37
997-80086-00-00 Nut, HexＮＵＴ; |
997-80086-00-00 |
from US $1.59 |
||
|
38
|
38
92990-08600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92990-08600-00 |
from US $1.34 |
||
|
39
|
39
90116-10M65-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
90116-10M65-00 |
US $14.36 |
||
|
40
|
40
95380-10600-00 EcrouＮＵＴ; |
95380-10600-00 |
from US $2 |
||
|
41
|
41
929-90106-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90106-00-00 |
from US $1.07 |
||
|
42
|
42
90105-08M83-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-08M83-00 |
from US $3.65 |
||
|
43
|
43
66E-41123-00-94 Outer Cover, ExhaustＯＵＴＥＲ ＣＯＶＥＲ， ＥＸＨＡＵＳＴ; |
66E-41123-00-94 |
from US $561.87 |
||
| replacement | |||||
|
43
|
43
66E-41123-10-94 Outer Cover, ExhaustＯＵＴＥＲ ＣＯＶＥＲ， ＥＸＨＡＵＳＴ; |
66E-41123-10-94 |
from US $541.99 |
||
|
44
|
44
663-45119-00-00 Cap, Grease NippleＣＡＰ， ＧＲＥＡＳＥ ＮＩＰＰＬＥ; |
663-45119-00-00 |
US $3.68 |
||
|
45
|
45
61L-5169A-00-00 Nipple, GreaseＮＩＰＰＬＥ， ＧＲＥＡＳＥ; |
61L-5169A-00-00 |
from US $8.22 |
||
|
46
|
46
90445-09M21-00 Hose (L445)ＨＯＳＥ; |
90445-09M21-00 |
from US $14.73 |
||
|
47
|
47
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
47
|
47
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
47
|
47
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.34 |
||
|
48
|
48
66E-14763-00-00 SpacerＳＰＡＣＥＲ; |
66E-14763-00-00 |
from US $12.63 |
||
| replacement | |||||
|
48
|
48
66E-14763-10-94 SpacerＳＰＡＣＥＲ; |
66E-14763-10-94 |
from US $12.63 |
||
|
49
|
49
66E-14623-00-00 Gasket, Exhaust PipeＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＰＩＰＥ; |
66E-14623-00-00 |
from US $5.10 |
||
|
50
|
50
97985-06216-00 Screw, With WasherＳＣＲＥＷ， ＷＩＴＨ ＷＡＳＨＥＲ; |
97985-06216-00 |
from US $1.34 |
||
|
51
|
51
66E-14771-00-94 Stay, Muffler 1ＳＴＡＹ， ＭＵＦＦＬＥＲ １; |
66E-14771-00-94 |
from US $52.94 |
||
| replacements | |||||
|
51
|
51
66E-14771-01-94 Stay, Muffler 1ＳＴＡＹ， ＭＵＦＦＬＥＲ １; |
66E-14771-01-94 |
from US $52.94 |
||
|
51
|
51
66E-14771-01-00 STAY, MUFFLER 1ＳＴＡＹ， ＭＵＦＦＬＥＲ １; |
66E-14771-01-00 |
from US $40.73 |
||
|
52
|
52
97513-10550-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
97513-10550-00 |
from US $5.40 |
||
|
53
|
53
90445-18M02-00 HoseＨＯＳＥ; |
90445-18M02-00 |
US $61.42 |
||
| replacement | |||||
|
53
|
53
90445-18M16-00 Hose (L700)ＨＯＳＥ; |
90445-18M16-00 |
US $61.42 |
||
|
54
|
54
63M-12581-00-00 Joint, Hose 1ＪＯＩＮＴ， ＨＯＳＥ １; |
63M-12581-00-00 |
US $5.58 |
||
|
55
|
55
90445-18M02-00 HoseＨＯＳＥ; |
90445-18M02-00 |
US $61.42 |
||
| replacement | |||||
|
55
|
55
90445-18M16-00 Hose (L700)ＨＯＳＥ; |
90445-18M16-00 |
US $61.42 |
||
|
56
|
56
90450-18M09-00 Hose Clamp Assy(63M)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-18M09-00 |
from US $10.77 |
||
|
57
|
57
90446-24M52-00 Hose (L540)ＨＯＳＥ; |
90446-24M52-00 |
from US $10.58 |
||
| replacement | |||||
|
57
|
57
90446-24M81-00 Hose ProtectorＨＯＳＥ; |
90446-24M81-00 |
from US $10.58 |
||
|
58
|
58
63M-12580-00-00 Joint AssyＪＯＩＮＴ ＡＳＳＹ; |
63M-12580-00-00 |
from US $86.30 |
||
|
59
|
59
90446-24M89-00 Hose ProtectorＨＯＳＥ; |
90446-24M89-00 |
from US $10.63 |
||
| replacement | |||||
|
59
|
59
90446-24M81-00 Hose ProtectorＨＯＳＥ; |
90446-24M81-00 |
from US $10.58 |
||
|
60
|
60
682-84385-01-00 Cap,1ＣＡＰ １; |
682-84385-01-00 |
from US $8.28 |
||
|
61
|
61
63M-12590-10-00 Conduction AssyＣＯＮＤＵＣＴＩＯＮ ＡＳＳＹ; ＵＲ |
63M-12590-10-00 |
from US $25.79 |
||
| replacement | |||||
|
61
|
61
67X-E2590-10-00 Conduction AssyＣＯＮＤＵＣＴＩＯＮ ＡＳＳＹ; ＵＲ |
67X-E2590-10-00 |
from US $9 |
||
|
62
|
62
66E-12578-00-00 Hose 3ＨＯＳＥ ３; |
66E-12578-00-00 |
US $89.98 |
||
|
63
|
63
90450-22M14-00 Hose Clamp Assy(64X)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-22M14-00 |
from US $7.65 |
||
|
64
|
64
90446-27M95-00 Hose (L800)ＨＯＳＥ; |
90446-27M95-00 |
from US $15.17 |
||
|
65
|
65
66E-14752-00-00 Pipe, OutletＰＩＰＥ， ＯＵＴＬＥＴ; |
66E-14752-00-00 |
US $159.01 |
||
|
66
|
66
90460-90M11-00 Clamp, HoseＣＬＡＭＰ， ＨＯＳＥ; |
90460-90M11-00 |
from US $33.72 |
||
|
67
|
67
EU0-61652-00-00 NutＮＵＴ; |
EU0-61652-00-00 |
from US $6.94 |
||
|
68
|
68
90267-48007-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48007-00 |
from US $1.69 |
||
|
69
|
69
90600-91736-00 Clamp Comp (Eu0)ＣＬＡＭＰ ＣＯＭＰ．; |
90600-91736-00 |
from US $1.98 |
||
|
70
|
70
90601-20006-00 Band, HoseＢＡＮＤ; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
70
|
70
90601-20009-00 Band (Eu0)ＢＡＮＤ; |
90601-20009-00 |
from US $2.27 |
||
|
71
|
71
90450-18M09-00 Hose Clamp Assy(63M)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-18M09-00 |
from US $10.77 |
||
|
72
|
72
EU0-62241-30-00 Nut, Drain 1ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
|
74
|
74
90604-80798-00 Through HullＴＨＲＯＵＧＨ ＨＵＬＬ; |
90604-80798-00 |
from US $27.07 |
||
